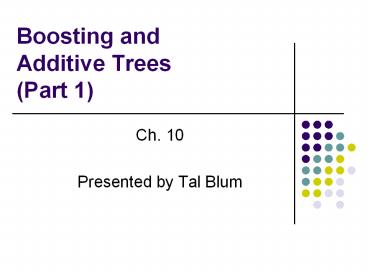

Boosting and Additive Trees (Part 1)

1
Boosting and Additive Trees(Part 1)

• Ch. 10
• Presented by Tal Blum

2
Overview

• Ensemble methods and motivations
• Describing Adaboost.M1 algorithm
• Show that Adaboost maximizes the exponential loss
• Other loss functions for classification and
  regression

3
Ensemble Learning Additive Models

• INTUITION Combining Predictions of an ensemble
  is more accurate than a single classifier.
• Justification ( Several reasons)
• easy to find quite correct rules of thumb
  however hard to find single highly accurate
  prediction rule.
• If the training examples are few and the
  hypothesis space is large then there are several
  equally accurate classifiers. (model uncertainty)
• Hypothesis space does not contain the true
  function, but a linear combination of hypotheses
  might.
• Exhaustive global search in the hypothesis space
  is expensive so we can combine the predictions of
  several locally accurate classifiers.
• Examples Bagging, HME, Splines

4
Boosting (explaining)
5
Example
learning curve for Y 1 if ? X2j gt
?210(0.5) 0 otherwise
6
Adaboost.M1 Algorithn

• W(x) is the distribution of weights over the N
  training points ? W(xi)1
• Initially assign uniform weights W0(x) 1/N for
  all x.
• At each iteration k
• Find best weak classifier Ck(x) using weights
  Wk(x)
• Compute ek the error rate as
• ek ? W(xi ) I(yi ? Ck(xi )) / ? W(xi
  )
• weight ak the classifier Cks weight in the final
  hypothesis Set ak log ((1 ek )/ek )
• For each xi , Wk1(xi ) Wk(xi ) expakI(yi
  ? Ck(xi ))
• CFINAL(x) sign ? ak Ck (x)

7
Boosting asan Additive Model

• The final prediction in boosting f(x) can be
  expressed as an additive expansion of individual
  classifiers
• The process is iterative and can be expressed as
  follows.
• Typically we would try to minimize a loss
  function on the training examples

8
Forward Stepwise Additive Modeling - algorithm

• Initialize f0(x)0
• For m 1 to M
• Compute
• Set

9
Forward Stepwise Additive Modeling

• Sequentially adding new basis functions without
  adjusting the parameters of the previously chosen
  functions
• Simple case Squared-error loss
• Forward stage-wise modeling amounts to just
  fitting the residuals from previous iteration.
• Squared-error loss not robust for classification

10
Exponential Lossand Adaboost

• AdaBoost for Classification
• L(y, f (x)) exp(-y f (x)) - the exponential
  loss function

11
Exponential Lossand Adaboost

• Assuming ? ? 0

12
Finding the best ?
13
(No Transcript)
14
Historical Notes

• Adaboost was first presented in ML theory as a
  way to boost a week classifier
• At first people thought it defies the no free
  lunch theorem and doesnt overfitt.
• Connection between Adaboost and stepwise additive
  modeling was only recently discovered.

15
Why Exponential Loss?

• Mainly Computational
• Derivatives are easy to compute
• Optimal classifiers minimizes the weighted sample
• Under mild assumptions the instances weights
  decrease exponentially fast.
• Statistical
• Exp. loss is not necessary for success of
  boosting On Boosting and exponential loss
  (Wyner)
• We will see in the next slides

16
Why Exponential Loss?

• Population minimizer (Friedman 2000)
• This justifies using its sign as a classification
  rule.

17
Why Exponential Loss?

• For exponential loss
• Interpreting f as a
• logit transform
• The population maximizers and
  are the same

18
Loss Functions and Robustness

• For a finite dataset exp. loss and binomial
  deviance are not the same.
• Both criterion are monotonic decreasing functions
  of the margin.
• Examples with negative margin yf(x)lt0 are
  classified incorrectly.

19
Loss Functions and Robustness

• The problem Classification error is not
  differentiable and with derivative 0 where it is
  differentiable.
• We want a criterion which is efficient and as
  close as possible to the true classification
  lost.
• Any loss criterion used for classification should
  give higher weights to misclassified examples.
• Therefore the square loss function is not
  appropriate for classification.

20
Loss Functions and Robustness

• Both functions can be though of as a continuous
  approximation to the misclassification loss
• Exponential lost grows exponentially fast for
  instances with high margin
• Such instances weight increases exponentially
• This makes Adaboost very sensitive to mislabeled
  examples
• Deviation generalizes to K classes, exp loss not.

21
Robust Loss FunctionsFor Regression

• The relationship between square loss and absolute
  loss is analogous to that of exp. loss and
  deviance.
• The solutions are the mean and median.
• Absolute loss is more robust.
• For regression MSE leads to Adaboost for
  regression
• For Gaussian errors and robustness to outliers
• Huber loss

22
Sample of UCI datasets Comparison
Dataset Name J48 J48bagging(10) Adaboost\w Decision stumps SVMSMO B Net NB NN 1 LBMA LBMADEVIANCE
colic 85.1 82.8 81.08 78.38 78.37 79.73 77 85.1 82.43
anneal(70) 96.6 97.4 84.07 97.04 92.22 91.8 94.07 97 97.04
credit-a(x10) 84.49 86.67 85.94 85.65 85.07 85.36 80 86.22 84.06
iris-(disc5)x10 93.3 94 87.3 94 93.3 93.3 93.3 94.67 94
soybean-9x2 84.87 79.83 27.73 86.83 83.19 84.59 80.11 87.36 87.68
soybean-37 90.51 85.4 24.09 93.43 90.51 88.32 82.48 92.7 94.16
labor-(disc5) 70.18 78.95 87.82 87.72 94.74 91.23 85.96 94.74 94.74
autos-(disc5)x2 70.73 64.39 44.88 73.17 61.95 61.46 77.07 65.35 76.1
credit-g(70) 74.33 73.67 74.33 74.67 77 76.67 67.67 74.33 76.67
glassx5 57.94 56.54 42.06 57.94 56.54 54.67 55.14 58.41 57.48
diabetes 68.36 68.49 71.61 70.18 70.31 69.92 64.45 68 69.4
audiology 76.55 76.55 46.46 80.97 75.22 71.24 73.45 79.6 80.09
breast-cancer 74.13 68.18 72.38 69.93 72.03 72.73 68.18 75.52 76.22
heart-c-disc 77.56 81.19 84.49 83.17 84.16 83.83 76.57 80.21 84.16
vowel x 5 71.92 71.92 17.97 86.46 63.94 63.94 90.7 94.04 93.84
Average 78.44 77.732 62.1473 81.3 79 77.9 77.74 82.22 83.205
23
Next Presentation
