Title: Layer 2 Technologies


1

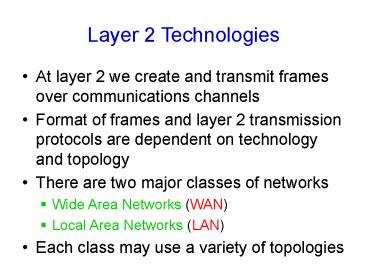

Layer 2 Technologies
  • At layer 2 we create and transmit frames over
    communications channels
  • Format of frames and layer 2 transmission
    protocols are dependent on technology and
    topology
  • There are two major classes of networks
  • Wide Area Networks (WAN)
  • Local Area Networks (LAN)
  • Each class may use a variety of topologies

2
Layer 2 Technologies
  • Point-to-Point
  • A station is directly connected to another
  • Often used in WANs
  • Each station may connect to all other stations
    (fully meshed)
  • Or, one station may connect to only a subset of
    stations in a network
  • For large networks, fully meshed networks are
    rare due to cabling complexity and costs
  • May be wired or wireless

3
Layer 2 Technologies
  • Shared Channels
  • Stations share a communications channel
  • Most often used in LANs
  • May require some form of addressing
  • May allow transmitting to many or all
    stations
  • Full broadcast
  • Multicast group of stations
  • How does a station get its fair share?
  • How does a station gain permission to transmit?
  • Must implement Media Access Control
  • May also be wired or wireless

4
Layer 2 Topologies
  • Topology is a connection strategy
  • May be influenced by the medium
  • Dictates in part the path a frame will take
  • Many general topologies have been implemented.
    Both for LANs and WANs

5
LAN/WAN Topologies
Ring
6
LAN/WAN Topology
7
LAN/WAN Topologies
8
Locality of Reference
  • Computers are most often organized in groups and
    locally interconnected as LANs
  • Computers often communicate with computers that
    are close by or local.
  • Examples are computers communicating with
    departmental servers
  • As a result, most traffic is local and never
    leaves the LAN
  • Thus, networks are organized in groups, or LANs.
  • LANs of any topology can then be interconnected
    to form larger networks

9
Interconnected LANs
Bridge
10
Interconnected LANs
Bridge
11
LAN Standards
  • Managed by an IEEE committee called the 802
    committee
  • Many subgroups within the 802 committee
  • 802.1
  • 802.2 Logical Link (inactive)
  • 802.3 Ethernet and variants
  • 802.4 Token Bus
  • 802.5 Token Ring
  • 802.6 Metropolitan Area Networks (inactive)
  • .
  • 802.11 Wireless LANs (WiFi) (a,b,g,e,I,n)
  • 802.16 Broadband wireless (WiMAX)

12
Network Architectures
  • We will discuss two major layer two network
    architectures.
  • LAN
  • Ethernet and IEEE 802.3
  • Wireless LANS and IEEE802.11
  • WAN
  • Point to Point Protocols (HDLC)

13
Broadcast Networks
  • Consider N users on a shared channel
  • User transmits when a frame is ready to send
  • Other users also transmit at will
  • If frames from 2 users overlap we have a
    collision
  • Collisions yield damaged frames
  • Users can hear own transmission and therefore
    can detect collisions

14
Broadcast Networks
  • Summary
  • Transmit at will
  • Listen for own frame
  • Retransmit if collision
  • Collisions are wasted bandwidth
  • On average, if we have a shared broadcast channel
    what throughput can we expect?

15
Aloha Network
  • Early broadcast network developed at University
    of Hawaii 1970
  • Designed to interconnect 7 campuses of the U of H
    on 4 islands
  • Used radio broadcasts
  • Central Computing Center served as hub
  • Campuses communicated through this center over
    shared radio frequencies

16
Aloha Network
Channels 9600 bps Frame 704 bits
What is maximum channel utilization ?
17
t time to transmit frame
vulnerable
18
Aloha Throughput
  • Let time to transmit a packet to be 1 unit
  • Let S Average number of packets per packet time
  • 0 lt S lt 1
  • Let G retransmissions new packets (S)
  • G S
  • It is assumed that G and S follow Poisson
    Distribution

19
Aloha Throughput
  • Based on this we can show

at G .5 S .5(e-1) 1/(2e) S approx
.18
S
G
.5
20
Aloha
  • This is called Pure Aloha stations transmitted
    at will
  • This was later modified that required stations to
    only transmit at predefined times driven by a
    central clock
  • Now we need no collision for 1 packet time rather
    than 2
  • In this case the utilization improved to

or S 1/e .36
This is called Slotted Aloha
21
Aloha
22
Carrier Sense Multiple Access
  • We can improve on Aloha if we listen before
    transmitting
  • A family of protocols called Carrier Sense
    Multiple Access (CSMA) has evolved
  • All involved some form of listen before speak
  • Variations of when to speak if no transmissions
    (carrier) heard

23
CSMA
  • Non Persistent
  • Listen on channel
  • If free, transmit
  • If busy, wait random time repeat
  • If collision, wait random time repeat
  • Persistent (also called 1-persistent)
  • Listen on channel
  • If free, transmit
  • If busy, continue to listen until free transmit
  • If collision, wait random time - repeat

24
CSMA
  • p Persistent
  • Compromise
  • Listen on channel
  • If free, transmit with probability p
  • and delay 1 unit time with probability 1-p
  • If channel busy wait until free, repeat

25
CSMA
