Chemical Naming

1

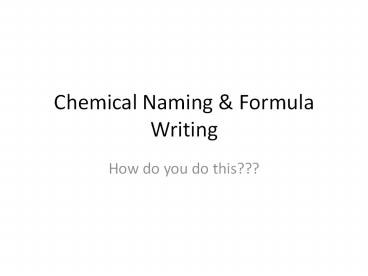

Chemical Naming Formula Writing

• How do you do this???

2
What are Ionic Compounds?

• Ionic compounds consist of a cation ( ion) and
  an anion (- ion)
• Monotomic cations can be found to the left of the
  staircase
• Monotomic anions can be found to the right of the
  staircase
• Ex NaCl, CaBr2, K3PO4, NH4Cl

3
How are Ionic Compounds Bonded?

• Ionic compounds are formed when electrons are
  transferred between the cation and anion
• The cation will lose electron(s) to become stable
  and look like a noble gas
• The anion will gain electron(s) to become stable
  and look like a noble gas

4
How is NaCl Formed?
Na has 1 valence electron and Cl has 7 valence
electrons. Na will transfer its 1 valence
electron to Cl so that they can both become
stable and look like noble gases. Na1 now looks
like Ne from the outer shell and Cl-1 now looks
like Ar.
Na
Cl
5
What Does an Ionic Formula Represent?

• An ionic formula represents the lowest whole
  number ratio of atoms in a compound
• This ratio is referred to an a formula unit

Na (green) ions will ionically bond with Cl-
(purple) ions in a repeating pattern to form what
is called a crystal lattice. A formula unit is
the lowest whole number ratio of the Na to Cl
atoms which would be 11 ? NaCl.
6
Unique Properties of Ionic Compounds?

• Solids at room temperature
• Relatively high melting points (gt300C)
• High solubility in water
• No conductivity as a solid but as an aqueous
  solution or molten, they are conductive
• You must have ions present in order to conduct
  electric current

7
What are Molecular Compounds?

• Molecular compounds consist of 2 nonmetals
  located to the right of the staircase
• 2 types polar and nonpolar covalent
• Polar covalent compounds usually are made up of 2
  or more different nonmetals
• Ex H2O, NH3, CO
• Nonpolar covalent compounds usually are made up
  of 2 of the same nonmetals
• Ex Br2, Cl2, O2

8
How are Molecular Compounds Formed?

• For polar covalent compounds, electrons are
  unequally shared between the nonmetals to achieve
  noble gas stability
• The higher electronegative element will pull the
  electron(s) its sharing closer to it than the
  less electronegative element
• For nonpolar covalent compounds, electrons are
  equally shared between the nonmetals to achieve
  noble gas stability

9
Nonpolar covalent equal sharing of an electron
between 2 F atoms to become more stable and
look like Ne
F2
Polar covalent unequal sharing of an electron
between each of the 2 H atoms and the O atom
allows H to look like He and O to look like Ne.
The electrons are pulled closer to because it
is the more electronegative element
H2O
10
What Does a Molecular Formula Represent?

• A molecular formula represents the actual number
  of atoms in a compound

There are 2 H and 1 O atoms in 1 water molecule
There are 3 H and 1 N atoms in 1 ammonia molecule
11
Unique Properties of Polar Covalent Compounds?

• Usually liquids or gases at room temperature
• Melting point is lt300C (less than ionic)
• Solubility in water varies
• Not conductive

12
Unique Properties of Nonpolar Covalent Compounds?

• Gases at room temperature (exceptions include I2
  solid and Br2 liquid)
• Very low melting point (less than polar covalent)
• No solubility in water
• Not conductive

13
What are Metallic Compounds?

• Metallic compounds consist at least one metal
• Ex Cu, Pt, Sn, Pb, Ag
• Metallic compounds made up of more than 1 metal
  are called alloys
• Ex brass (70 Cu 30 Zn), stainless steel,
  pewter, 14K-24K Au

14
How are Metallic Compounds Formed?

• Metallic compounds are bonded by a sea of
  electrons that hold the metal cations together

The delocalized electrons do not belong to any
single cation. They swim in the sea, holding
the cations together
15
What Does a Metallic Compound Represent?

• Like an ionic formula, metallic formulas also
  represent the lowest whole number ratio of atoms
  in a compound
• This ratio is referred to an a formula unit

16
Unique Properties of Metallic Compounds?

• Solids at room temperature (exception Hg liquid)
• Very high melting points (higher than ionic)
• No solubility in water
• Conductive because of the mobile ions swimming in
  the sea of delocalized electrons
