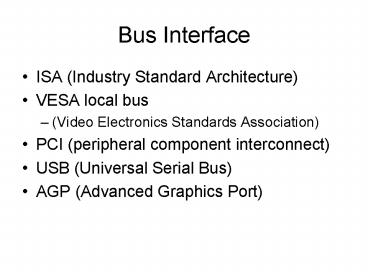

Bus Interface

1
Bus Interface

• ISA (Industry Standard Architecture)
• VESA local bus
• (Video Electronics Standards Association)
• PCI (peripheral component interconnect)
• USB (Universal Serial Bus)
• AGP (Advanced Graphics Port)

2
Slide Objectives

• Detail pin connections and signal connections on
  the ISA, VESA local, and PCI buses.
• Develop simple interfaces to the ISA, VESA local
  and PCI buses.
• Program interface places on boards that connect
  to the ISA, VESA local, and PCI buses.
• Describe operation of the USB and develop some
  short programs that transfer data.
• Explain how the AGP increases the efficiency of
  the graphics subsystem.

3
ISA

• Been around since the start of the IBM PC (1982)
• Originally an 8-bit standard, now 16-bit. There
  was a 32-bit EISA (Extended), gone
• Most PCs have an ISA slot on the mainboard that
  can accept either an 8-bit of a 16-bit ISA
  printed circuit card.
• 32-bit printer circuit cards are more often PCI,
  or in some older 486s, the VESA cards.

4
ISA / EISA / VESA local

• Clocking speed 8 MHZ too slow!!
• EISA -32-bit modification of ISA (386-PentiumII
  had 32-bit data buses)
• Both ISA and EISA run at 8 MHz
• too SLOW!
• VESA and PCI both run at 33 MHz.
• Most common application for EISA bus is as a disk
  controller or as a video graphics adapter. Both
  apps benefit from the wider bus width because the
  data transfer rates for these devices are high.

5
VESA local

• Much better approach to 32-bit interfacing
• Common for video and disk interfaces to the 486 PC

6
PCI

• PCI -Peripheral Component Interconnect
• Only bus found in the newest Pentium II systems.
  (Most systems also have ISA, but as an interface
  for older 8-bit and 16-bit interface cards).
• Has replaced VESA bus.
• Has plug and play(PnP) characteristics
• Has the ability to function with a 64-bit data
  bus.
• Most often used for interfacing I/O components
• Memory could be interfaced, but would operate
  only at a 33MHz rate with Pentium (half the speed
  of the redient local bus of the Pentium)

7
Plug and Play

• PCI interface contains a series of registers,
  located in a small memory device on the PCI
  interface, that contain information about the
  board.
• This memory can provide PnP characteristics to
  the ISA bus or any other bus.
• Information in registers allows computer to
  automatically configure the PCI card.

8

              Pentium II Processor Pentium II Processor Pentium II Processor Pentium II Processor Pentium II Processor Pentium II Processor
                    Local Bus 66MHz or 100Mhz Local Bus 66MHz or 100Mhz Local Bus 66MHz or 100Mhz Local Bus 66MHz or 100Mhz Local Bus 66MHz or 100Mhz
  AGP Video AGP Video   AGP Bus 66MHz AGP Bus 66MHz   440LX or 440BX Chip Set 440LX or 440BX Chip Set 440LX or 440BX Chip Set 440LX or 440BX Chip Set 440LX or 440BX Chip Set 440LX or 440BX Chip Set   Memory
  AGP Video AGP Video             440LX or 440BX Chip Set 440LX or 440BX Chip Set 440LX or 440BX Chip Set 440LX or 440BX Chip Set 440LX or 440BX Chip Set 440LX or 440BX Chip Set   Memory
  AGP Video AGP Video     PCI Bus 33MHz or 66 MHz   PCI Bus 33MHz or 66 MHz   PCI Bus 33MHz or 66 MHz   PCI Bus 33MHz or 66 MHz   PCI Bus 33MHz or 66 MHz           Memory
                            Memory
  Local Frame Buffer Local Frame Buffer   PIIX4 Bridge PIIX4 Bridge PIIX4 Bridge   I/O I/O   I/O I/O   Memory
  Local Frame Buffer Local Frame Buffer   PIIX4 Bridge PIIX4 Bridge PIIX4 Bridge
  Local Frame Buffer Local Frame Buffer

    USB Bus 12Mbps USB Bus 12Mbps USB Bus 12Mbps
            ISA Bus 8 MHz

        I/O I/O   I/O I/O
Bus Structure of the Pentium II
9
PCI Bridge

• Not just buffers between PCI and processor
  busses. INTELLIGENT!
• Capable of grouping single data requests into
  bursts and then exchanging those bursts with
  memory and I/O devices.
• Ability to transfer an unlimited number of bytes
  in a single burst even though processor itself
  may be limited to a much smaller size (one cache
  line)
• Each PCI device has a latency timer that defines
  longest time that device is allowed to control
  the bus.

10
PCI Bus Operation

• The data bus lines use a multiplexing scheme to
  which connector pins are multiplexed as address
  and data pins.
• A PIC transaction takes place between a master (a
  device takes control of the system buses), and a
  target (a device that only responds to access
  requests).

11
BUS Access

• Read cycle takes three clock pulses
• Output address
• Switch lines from address to data
• Transfer data
• Write cycle
• Address lines do not have to turned around
• Only requires two clock cycles.

12
Bus Commands

• 16 different commands (commands are multiplexed
  on the C/BE3-C/BE0) lines and output during the
  address phase of each bus cycle.
• INTA sequence
• I/O read access
• I/O write access
• Memory read access
• Memory write access
• Dual addressing cycle (64 bits on 32-bit data
  bus)
• Line memory read access (line of cache (greater
  than 32 bits)

13
DMA and interrupts

• Bus Master concept of PCI eliminates necessity
  for DMA controller (still used)
• Bus master shuts down system board buses and
  communicates with adapters via bus slots.

14
PCI Adapters

• Support 3.3V, 5 V and Universal
• Separate slot arrangements for 3.3 and 5v.
  Universal adapters can work in either slot
• Each PCI card contains a 256-byte configuration
  memory. 64 bytes header (type of card,
  manufacturer, revision level, current status of
  card, cache line size in 32-byte units, and bus
  latency). Remaining bytes are card specific.

15
Plug and Play

• Configuration memory of units on PCI bus allow
  system to scan through devices and assign each
  device a unique base address and interrupt level.

16
I/O Buses

• SCSI (Small Computer Systems Interface)
• Parallel bus used to peripheral such as hard
  drives, tape drives, CD_ROM players.
• 1 to 10MB/sec (PCI around 275MB/sec transfer
  rate)
• Intelligent bus
• Accepts high level commands from processor and
  then transfer information without host
  participation.
• Allows parallel processing

17
SCSI

• Can accomodate 16 devices(SCSI-3)
• Must have host adapter (typically no.7)
• Devices connected in a daisy chain fashion with
  terminating plugs connected to each end of cable.

18
USB (Universal Serial Bus)

• Current ISA sound cards use internal PC power
  supply (generates a large amount of noise).
• USB allows sound cards to have their own power
  supply
• Easy to connect
• Access to up to 127 different connections through
  a 4 connection serial cable.
• Apps keyboards, sound cards, simple
  video-retrieval devices, modems.
• Data transfer rates are 12Mbps full speed, 1.5
  Mbps slow speed operation.

19
(No Transcript)
20
Physical Topology is point-to-point tree.
21
Root primary controller Hub allows the
connection of multiple USB devices Endpoint
Source or sink of information within a USB device
A USB device that contains an ENDPOINT
(source/sink of data) is called a function.
A USB device can be just a function, just a hub,
or both a hub and a function.
22
Physical connection is point to point.
23
Pipes

• When attaching to a hub, host assigns a device an
  address.
• Characteristics of connection make up pipe
• Speed
• Direction
• Required bandwidth
• Error-handling capability
• Transfer type
• Maximum packet size
• The endpoint of the device communicates with the
  host. (endpoint 0 is for device initialization
  and configuration)

24
Bus Protocol

• Data transferred in packets
• Synchronous serial format
• Clock signal is encoded into data pattern
• Packets are variable length
• Includes
• Sync field, packet id, Information field, and CRC

25
Data transfers

• Control
• Bulk (Text data for printer)
• Interrupt (mouse clicks)
• Isochronous (voice, music)

26
USB Connector

• 4 pins
• 5 v
• -Data
• Data
• Ground
• Biphase signals
• When data are at 5.0V, -data are at zero volts
  and vice versa

27
Physical Interface
Differential Signaling, Half duplex
Full Duplex data transmission can occur in both
directions at the same time Half Duplex data
transmission can go in only one direction at a
time
28
USB Data

• Biphase signals generated using a differential
  line driver (transceiver) with noise suppression
• Uses NRZI encoding (non-return to zero, inverted)
  for transmitting packets.
• Signal level does not change for transmission of
  logic 1s
• Signal level is inverted for every change to a
  logic 0
• Uses bit-stuffing for synchronization
• A logic 0 is added after 6 continuous 1s in a row
• Data is transmitted LSB to MSB.

29
USB Commands

• Stop and Wait Flow control used
• host must wait for ACK, NAK before transferring
  additional data packets
• Sync (80h), PID sent first
• 4 Types of Packets (Data, token, handshaking, and
  start-of-frame)
• 2 types of CRC used (5-bit and 16-bit)
• ACK, NAK tokens used to coordinate transfer of
  packets.

30
PID Codes
PID Name Type Description
E1h OUT Token Host-gtfunction transaction
D2h ACK Handshake Receiver accepts packet
C3h Data0 Data Data packet PID even
A5h SOF Token Start of frame
69h IN Token Function -gt host transaction
5Ah NAK Handshake Receiver does not receive packet
4Bh Data1 Data Data packet PID odd
3Ch PRE Special Host preamble
2Dh Setup Token Setup command
1Eh Stall Token Stalled
31
Types of Packets on USB
Token
8 bits 7 bits 4 bits 5 bits
PID ADDR ENDP CRC5

Start of Frame Packet Start of Frame Packet Start of Frame Packet
8 bits 11 bits 11 bits 5 bits
PID Frame Number Frame Number CRC5

Data Packet Data Packet
8 bits 1 - 1023 bits 1 - 1023 bits 1 - 1023 bits   16 bits
PID Data Data Data Data CRC16

Handshake Packet Handshake Packet Handshake Packet
8 bits
PID
32
Accelerated Graphics Port

• Designed specifically to all high-speed transfers
  between video card frame buffer and system
  memory.
• Operates at bus clock frequency of the
  microprocessor.
• Maximum data transfer is 528MBps(2X)
• Max data rate for 4x system is 1GBps
• PCI bus has max data rate of 100MBps
