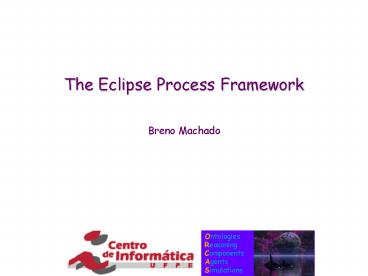

The Eclipse Process Framework

1
The Eclipse Process Framework

• Breno Machado

2
The Eclipse Process Framework

• EPF is an Open Source project within the Eclipse
  Foundation
• Goals
• An extensible framework and tooling for
  authoring, configuring and publishing processes
• Exemplary Process first delivered is OpenUP
• EPF is NOT
• Only applicable for Eclipse Java development.
• Intended to create the perfect process
• EPF is based in SPEM 2.0 (Software Process
  Engineering Metamodel)

3
The Eclipse Process Framework

• EPF is for two audiences
• Process Authors and Coaches (Process Management
  Team)
• Tooling for creating and publishing processes
• Foundational process for starting point
• Libraries of additional content that can be
  plugged-in
• Process Consumers (Project Team)
• Published website of process content for simple
  browsing
• Guidance in the form of checklists, concepts,
  guidelines
• Browse the content adapted to your experience
  level

4
Basic Concepts - EPF

• Method Library
• All Method Elements are stored in a Method
  Library
• Method Plug-in
• Physical container for Method Packages and
  Process Packages
• Method Configuration
• A logical subset of a Method Library
• Delivery Process
• A complete and integrated approach for performing
  a specific type of project

5
Basic Concepts - EPF

• Libraries contain
• Method plug-ins
• Configurations
• The OpenUP library has
• Three method plug-ins
• base_concepts
• dsdm_openup
• openup
• Two delivery processes
• Openup_DSDM
• openup_lifecycle
• Two configurations
• OpenUP
• OpenUPDSDM

6
Basic Concepts - EPF

• Process (When)
• End-End sequence of Phases, Iterations,
  Activities and Milestones that define the
  development lifecycle.
• Defines When tasks are performed via Activity
  Diagrams and/or Work Breakdown Structures

• Method Content (Who, What, Why, How)
• Highly re-useable information
• Definition of Roles, Tasks, Work Products and
  associated relationships
• Includes Guidance and Categories
• No timing information

7
Method Content - EPF

• Role
• Set of related skills, competencies and
  responsabilities
• Are NOT individuals
• Individuals may play multiple roles
• Perform Tasks
• Are responsible for Work Products
• Work Product
• Tangible things used, modified or produced by a
  Task
• Roles use and produce Work Product performing
  tasks
• Are responsability of a Role
• 3 types
• Artifact
• Deliverable
• Outcome

• Task
• Define a assignable unit of work
• Perfomed by Roles
• Describe a work step-by-step to achieve a goal.
• Modify or produce Work Products
• Dont define WHEN they are performed in the
  lifecicle.

8
Method Content - EPF

• Guidance
• May be associate with Roles, Tasks and Work
  Products
• Different types depending upon purpose
• Detailed methodology and supporting information
• Tasks say what
• Guidance say how-to

• Categories
• Group related method elements
• Five Standard Categories
• Discipline
• Domain
• Work Product Kind
• Role Set
• Tool
• May be nested
• Can define custom categories
• Used to build views in published website

• Types
• Checklist
• Concept
• Example
• Guideline
• Estimate
• Considerations
• Practice
• Report
• Reusable Asset
• Roadmap
• Supporting Material
• Template
• Term Definition
• Tool Mentor
• Whitepaper

9
Process Content - EPF

• Capability Patterns
• Sequence of related tasks, performed to achieve a
  greater purpose
• Tasks can be specialized for the given context

Task Descriptor (instance of Task)
Role Descriptor (instance of Role)
Work Product Descriptor (instance of Work
Product)
10
Process Content - EPF

• Capability Patterns
• Capability Patterns may be nested and viewed
  graphically
• An Activity is an instance of a Capability Pattern

Activity (Instance of Capability Patterns)
11
Process Content - EPF

• Delivery Process
• Defined using Work Breakdown Structure and/or
  Activity Diagrams
• Define end-end full lifecycle process
• May include Iterations, Phases, Milestones (type
  of Activity)

12
EPF Composer Authoring Perspective
Authoring Perspective
Library View
Task Editor (form based)
Configuration View
13
EPF Composer Authoring Perspective
Form based plain text or
Rich Text editors
14
EPF Composer Publishing
15
Processes Available as Reusable EPF Specification

• EPF available s examples of process to use
• OpenUP
• SCRUM
• XP
• http//www.eclipse.org/epf/downloads/downloads.php

16
Interesting Aspects of OpenUPSpecified in EPF

• An Agile Inspired process with its roots in the
  UP
• An iterative software development process that is
  minimal, complete, and extensible
• Minimal - Contains vital roles, tasks and
  guidance
• Complete - Complete for small co-located teams
• Extensible - Serves as a foundation that can be
  extended and tailored

17
OpenUP Core Principles

• OpenUP is based on a set of mutually supporting
  core principles
• Collaborate to align interests and share
  understanding
• Evolve to continuously obtain feedback and
  improve
• Balance competing priorities to maximize
  stakeholder value
• Focus on articulating the architecture
• OpenUP incorporates a number of agile practices
• Test-First Design
• Continuous Integration
• Agile Estimation
• Daily Standup, Iteration Assessment, Iteration
  Retrospective
• Self-organizing teams
• within the context of an iterative, incremental
  lifecycle (UP).

18
OpenUP Project Lifecycle

• OpenUP uses an iterative, incremental lifecycle.
• Proper application of this lifecycle directly
  addresses the first core principle (Evolve).
• The lifecycle is divided into 4 phases, each with
  a particular purpose and milestone criteria to
  exit the phase
• Inception To understand the problem.
• Elaboration To validate the solution
  architecture.
• Construction To build and verify the solution in
  increments.
• Transition To transition the solution to the
  operational environment and validate the
  solution.

19
OpenUP - Disciplines

• A discipline is a collection of tasks that are
  related to a major "area of concern" within the
  overall project.
• Within the lifecycle, tasks are performed
  concurrently across several disciplines.
• Separating tasks into distinct disciplines is
  simply an effective way to organize content that
  makes comprehension easier.
• OpenUP defines the following Disciplines

20
OpenUP - Roles

• Roles define a set of related skills,
  competencies and responsibilities.
• OpenUP defines the following Roles

21
Interesting Aspects of XPSpecified in EPF

• eXtreme Programming is a development process that
  can be used by medium and small sized times in
  the face of vague or rapidly changing
  requirements.
• Customer create stories that is a very
  lightweight use-cases
• Development is done iteratively and incrementally
• Every two weeks delivers working stories to the
  customer
• Programmers work on their programming tasks in
  pairs

22
XP Values

• Communication
• XP emphasizes face-to-face communication
• Simplicity
• XP presumes that it is better to do the simple
  thing today
• Feedback
• Continuous feedback allows the customer to steer
  the project to success
• Courage
• Perhaps a better name for this value is trust

23
XP Practices
24
XP Roles
25
XP Work Products
26
Interesting Aspects of SCRUMSpecified in EPF

• Is a mechanism in the sport of rugby for getting
  an out-of-play ball back into play
• Scrum focuses on the social and collective aspect
  of development
• Scrum Goal is to improve quality and
  productivity, with an empirical approach, relying
  on autonomous teaming
• Empirism
• An empirical process requires a good visibility
• 2 regulation cycles
• During Daily Scrums
• During Sprint Reviews
• Scope
• not describe all the software development
  activities - analysis, design, coding, testing

27
SCRUM Lifecycle
28
SCRUM Roles
29
SCRUM Artifacts
30
SCRUM Colaboration Points
