Title: Add intro to concept of electronic data sheets

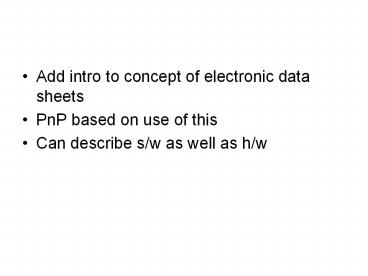

1
  • Add intro to concept of electronic data sheets
  • PnP based on use of this
  • Can describe s/w as well as h/w

2
Broad Plug-and-PlayUse Cases/Scenarios
  • Range of scenarios considered affecting
    spacecraft and monitoring of spacecraft
  • Fault Detection Isolation Recovery (FDIR)
  • Decouple FDIR mechanism from FDIR policy
  • Spacecraft development
  • commonality/reuse (built to standard
    specifications)
  • Stock parks and one-off parts from a common
    standard
  • incremental qualification (composability)
  • Spacecraft integration
  • off the shelf components
  • Spacecraft test automation
  • hardware in the loop
  • automatic test generation
  • automatic generation or configuration of standard
    EGSE (simulator or tester)
  • Dynamic reconfiguration of software tasks
  • software maintenance
  • spacecraft mission phase driven dynamic
    reconfiguration
  • Automation generation of ground/crew
    command/telemetry descriptions from spacecraft
    data sheets
  • In general, plug-and-play of monitoring and
    control interfaces, a.k.a. command and data
    acquisition, of components

3
Benefits of Plug-and-Play
  • Accelerated development process
  • Reuse of software and hardware (flight and EGSE)
  • Interoperability
  • Between agencies e.g. Agency A payload hosted on
    Agency B spacecraft
  • Spacecraft manufacturers and equipment vendors
  • Maintenance reduction
  • E.g. software update
  • Schedule risk reduction
  • develop elements (hardware or software) to
    standards that can be tested independently
  • Composability
  • bring in elements (software/hardware/simulators/te
    st equipment) at any point into schedule with
    minimal impact into schedule flow

4
Spacecraft Plug-and-Play Architecture
Application
Application
Software Bus (e.g. messaging)
Class-based I/F
DVS
DES
Raw parameter I/F
DAS
SOIS
Subnetwork Packet Service
NM Including Policy
Subnet DDS
Subnetwork Packet Protocol
Subnetwork PnP Protocol
EDS
Non-SOIS
Hardware
EDS
5
Agency Interest in Spacecraft Plug-and-Play
Architecture
  • NASA-GSFC and AFRL constructing frameworks that
    consider all of the above
  • ESA not yet considering standardisation of this
    larger spacecraft plug-and-play framework

6
Scope of SOIS Plug-and-Play
  • Software components out of scope of SOIS, belongs
    in MOIMS, probably SMC
  • Believed that such a PnP aspect of SMC onboard a
    spacecraft is in MOIMS scope but hasnt been
    explicitly addressed yet
  • Recommend MoU between SOIS and MOIMS be
    re-visited to address Plug-and-Play
  • Recommend SOIS concentrate on that part related
    to interfacing to devices across a subnetwork
  • Get benefits now, ensure enabler not obstacle to
    larger framework
  • Provision of Subnetwork Plug-and-Play Protocols
    and Network Management are out of scope as
    responsibilities of other standards bodies

7
Work Items
  • Device Virtualisation Service
  • Provision of class-based interface is required
    regardless of PnP but isnt standardised yet
    (Issue 0.1 only)
  • Config I/f for adding new device types to be done
    this is PnP
  • Refine device classes and service interface
  • Electronic Data Sheet format
  • 1451 TEDS, xTEDS convergence
  • Inputs from ESA AOCS group on their
    standardisation of AOCS transducers
  • Define format / ontology
  • Minimal content for class data sheets
  • Device Enumeration Service
  • Extend to optionally access Electronic Data Sheet
    from device
  • Refine service interface
  • Investigate need for Modifiable EDS no use
    case identified so far
  • Not under SOIS but necessary
  • Subnetwork Plug-and-Play Protocols
  • SpaceWire, MIL-STD-1553B, CAN
  • Subnetwork Device Discovery Service and Network
    Management
  • Not explicitly in SOIS but needs to be provided
    to deliver SOIS PnP over a subnetwork
  • EDS access (read only)
  • Refine service interface
  • Prototyping
  • SW bus-based middleware
  • Dynamic virtualisation using EDS
  • Subnetwork Network Manager policies
  • Interoperability tests

8
Work Package Flow
  • EDS Study
  • 1451
  • xTEDS
  • SOIS Stds. Studies in view of 1451 architecture
    study
  • Device Virtualization
  • Device Enumeration
  • Device Discovery
  • Support Stds
  • SpW PnP
  • 1553 PnP
  • CAN PnP
  • Prototyping
  • S/W bus
  • Dynamic Virtualization
  • Sub-network Manager
  • Interoperability Testing
  • SOIS /EDS Refinement

Concurrent (1)
(2)
(3)
(4)
9
Charter
  • Non-PnP work items of SOIS Application Support
    Services WG are approaching completion
  • Remaining work items are related to PnP
  • Device Virtualisation Service already in charter
  • Device Enumeration Service already in charter
  • Electronic Data Sheet standard is NOT already in
    charter
  • To cover Electronic Data Sheet standard, 2
    choices
  • Create Plug-and-Play WG and move Device
    Enumeration Service into it
  • Add Electronic Data Sheet standard to existing
    charter. Will be some overlap of resources
    between the two while the existing work is
    completed
  • Which is easier for the funding sources?
  • Securing funding (additional vs. new) vs. logical
    lifespan of working groups

10
  • Backup Slides

11
Detailed Use Case/Scenario Spacecraft
Development/Integration
  • Vendor builds hardware component (star tracker)
    to the PnP standard
  • Delivers data sheet (xml) on media
  • Automatic tools use media to generate driver
    software
  • Maps device specific data sheet to user interface
    (device virtualization) data sheet (e.g.
    thermistor curve)
  • Maps user interface (device virtualization) data
    sheet to c header structures using software
    auto-code
  • Policy is defined to be within constraints of
    data sheet
  • Auto generate EGSE test code for device tester
  • Test device
  • Auto generate EGSE device simulation
  • Verify simulator using device tester that was
    validated on real hardware
  • Start testing with simulators then plug-n-play
    devices as they become available
  • Automation tools takes vendor data sheet (defined
    in standard) and generates command telemetry
    data base
  • Data base used

12
Possible Mechanism Scope
  • Plug in device (whether powered or not out of
    scope - .x spec)
  • Either polling or asynchronous notification
    mechanism defined in .x spec)
  • Use routing information to query device for
    pertinent information
  • Policy done by Network Management Function
    (NMF)- sub-network specific is used for network
    management configuration sets upper bounds on
    current and future changes to network
  • NMF does not currently exist (where does it
    exist)
  • End of Device Discovery Service (DDS)
  • Indication may be provided to Device
    Enumeration Service (DES)
  • DES associates pertinent information with device
    driver (instantiation)
  • Device Driver provides the device specific
    functions for not sub-network packet service
    Device Access Service (DAS) and the Device
    Virtualization Service (DVS) knows position of
    device, parameters know a priori
  • DES indicates to application of device
    availability
  • Abstract Device name Unique Identification
    Classification Versioning information
  • End of SOIS scope (Device has exposed DAS DVS
    and applications can now use the device)
  • Application starts using device via DVS

13
SOIS Plug-and-Play
  • Range of scenarios considered affecting
    spacecraft and monitoring of spacecraft
  • list of scenarios
  • Monitoring and control, command and data
    acquisition of both
  • Plug-and-play of software components as well as
    devices
  • list of Benefits
  • architecture, spacecraftcomponent development
    process
  • Electronic data sheets defining interfacing to
    devices across a subnetwork and user (software)
    interfaces to generic devices
  • Overlap in Device Virtualisation Service between
    the two aspects DVS provides the mapping from
    the user interface of a generic device to the
    actual interface of a specific device
  • NASA GSFC/ARFL considering framework that
    considers all of the above
  • ESA not yet considering standardisation of this
    larger framework (onboard a spacecraft)
  • Software components out of scope of SOIS, belongs
    in MOIMS, probably SMC
  • Believed that such an SMC onboard a spacecraft
    is in MOIMS scope but hasnt been explicitly
    addressed yet
  • Recommend MoU between SOIS and MOIMS be
    re-visited to address Plug-and-Play
  • Recommend SOIS concentrate on that part related
    to interfacing to devices across a subnetwork
