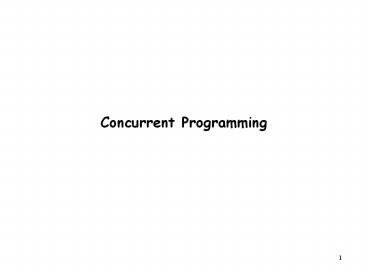

Concurrent Programming

1
Concurrent Programming
2
Outline

• Concurrency with I/O multiplexing
• Synchronization
• Shared variables
• Synchronizing with semaphores
• Suggested reading
• 12.2, 12.4, 12.5.13

3
I/O Multiplexing Interfaces
include ltunistd.hgt include ltsys/types.hgt int
select(int nfds, fd_set readfds, fd_set
writefds, fd_set exceptfds,
struct timeval timeout) Returns nonzero count
of ready descriptors, -1 on error FD_ZERO(fd_set
fdset) / Clear all bits in fdset / FD_CLR(int
fd, fd_set fdset) / Clear bit fd in fdset
/ FD_SET(int fd, fd_set fdset) / Turn on bit
fd in fdset / FD_ISSET(int fd, fd_set fdset)
/ Is bit fd in fdset on? / Macros for
manipulating descriptor sets
4
select() function

• select()
• Sleeps until one or more file descriptors in the
  set readset are ready for reading
• Returns the number of ready descriptors and sets
  each bit of readset to indicate the ready status
  of its corresponding descriptor

5
select() function

• readset
• bit vector (max FD_SETSIZE bits) that indicates
  membership in a descriptor set
• if bit k is 1, then descriptor k is a member of
  the descriptor set
• maxfd
• Cardinality of the readset
• tests descriptors 0, 1, 2, ..., maxfd-1 for set
  membership

6
Working Model of select

• Monitor a set of data structure
• Descriptor sets fd_set

FD_ZERO(read_set)
FD_SET(3,read_set) FD_SET(STDIN,read_set)
stdin
FD_CLR(3,read_set)
7
Working Model of select
Read
Active Descriptors
Pending Inputs
listenfd 3
listenfd 3
clientfd
clientfd
10
10
0
1
Active
7
7
2
4
4
3
-1
-1
Inactive
4
-1
-1
5
12
12
Active
6
5
5
7
-1
-1
8
-1
-1
9
Never Used
-1
-1
8
Concurrent Programming with I/O Multiplexing

• FD_ZERO(read_set)
• FD_SET(STDIN_FILENO, read_set)
• FD_SET(listenfd, read_set)
• while(1)
• ready_set read_set
• Select(listenfd1, ready_set,
• NULL, NULL, NULL)
• if (FD_ISSET(STDIN_FILENO, ready_set)
• /read command line from stdin /
• command()
• if (FD_ISSET(listenfd, ready_set))
• connfd Accept(listenfd,
  (SA )clientaddr, clientlen)
• echo(connfd)

9
Concurrent Programming with I/O Multiplexing

• void command(void)
• char bufMAXLINE
• if (!Fgets(buf, MAXLINE, stdin))
• exit(0) / EOF /
• /Process the input command /
• printf(s, buf)

10
Concurrent Event-Driven Programming Model

• State machine
• States
• Input events
• transitions

11
Concurrent Echo Server with I/O Multiplexing
1 include "csapp.h" 2 3 typedef
struct/Represents a pool of connected
descriptors/ 4 int maxfd / Largest
descriptor in read_set / 5 fd_set read_set
/ Set of all active descriptors / 6 fd_set
ready_set/Subset of descriptors ready for
reading/ 7 int nready / Number of ready
descriptors from select / 8 int maxi /
Highwater index into client array / 9 int
clientfdFD_SETSIZE / Set of active
descriptors / 10 rio_t clientrioFD_SETSIZE
/ Set of active read buffers/ 11 pool 12 13
int byte_cnt 0 / Counts total bytes received
by server /
12
Concurrent Echo Server with I/O Multiplexing
15 int main(int argc, char argv) 16 17 int
listenfd, connfd, port 18 socklen_t clientlen
sizeof(struct sockaddr_in) 19 struct
sockaddr_in clientaddr 20 static pool
pool 21 22 if (argc ! 2) 23
fprintf(stderr, "usage s ltportgt\n",
argv0) 24 exit(0) 25 26 port
atoi(argv1) 27 28 listenfd
Open_listenfd(port) 29 init_pool(listenfd,
pool)
13
Concurrent Echo Server with I/O Multiplexing
30 while (1) 31/Wait for listening/connected
descriptor(s) to become ready/ 32
pool.ready_set pool.read_set 33
pool.nready Select(pool.maxfd1,
pool.ready_set, NULL, NULL, NULL) 34 35 / If
listening descriptor ready, add new client to
pool / 36 if (FD_ISSET(listenfd,
pool.ready_set)) 37 connfd
Accept(listenfd, (SA )clientaddr,
clientlen) 38
add_client(connfd, pool) 39 40 41 / Echo
a text line from each ready connected descriptor
/ 42 check_clients(pool) 43 44
14
Concurrent Echo Server with I/O Multiplexing
1 void init_pool(int listenfd, pool p) 2 3
/ Initially, there are no connected descriptors
/ 4 int i 5 p-gtmaxi -1 6 for (i0
ilt FD_SETSIZE i) 7 p-gtclientfdi
-1 8 9 / Initially, listenfd is only member
of select read set / 10 p-gtmaxfd
listenfd 11 FD_ZERO(p-gtread_set) 12
FD_SET(listenfd, p-gtread_set) 13
15
Concurrent Echo Server with I/O Multiplexing
1 void add_client(int connfd, pool p) 2 int
i 3 p-gtnready-- 4 for (i 0 i lt
FD_SETSIZE i) /Find an available slot/ 5
if (p-gtclientfdi lt 0) 6 / Add
connected descriptor to the pool / 7
p-gtclientfdi connfd 8
Rio_readinitb(p-gtclientrioi, connfd) 9 10
/ Add the descriptor to descriptor set / 11
FD_SET(connfd, p-gtread_set) 12 13 /
Update max descriptor and pool highwater mark
/ 14 if (connfd gt p-gtmaxfd) p-gtmaxfd
connfd 15 if (i gt p-gtmaxi) p-gtmaxi i 16
break 17 18 if (i FD_SETSIZE)
/ Couldnt find an empty slot / 19
app_error("add_client error Too many
clients") 20
16
Concurrent Echo Server with I/O Multiplexing
1 void check_clients(pool p) 2 int i,
connfd, n char bufMAXLINE 4 rio_t rio 6
for (i 0 (i lt p-gtmaxi) (p-gtnready gt 0)
i) 8 connfd p-gtclientfdi 9 rio
p-gtclientrioi 10 /If the descriptor is
ready, echo a text line from it / 12 if
((connfd gt 0) (FD_ISSET(connfd,
p-gtready_set))) 13 p-gtnready-- 14
if ((n Rio_readlineb(rio, buf, MAXLINE)) ! 0)
15 byte_cnt n 16
printf("Server received d (d total) bytes on
fd 17 d\n", n, byte_cnt,
connfd) 18 Rio_writen(connfd, buf,
n) 19 else / EOF detected, remove
descriptor from pool / 23
Close(connfd) 24 FD_CLR(connfd,
p-gtread_set) 25 p-gtclientfdi -1 26
27 28 29
17
Pros and Cons of I/O Multiplexing

• One logical control flow.
• Can single-step with a debugger.
• No process or thread control overhead.
• Design of choice for high-performance Web servers
  and search engines.
• Significantly more complex to code than
  process- or thread-based designs.
• Hard to provide fine-grained concurrency
• E.g., our example will hang up with partial
  lines.
• Cannot take advantage of multi-core
• Single thread of control

18
Approaches to Concurrency

• Processes
• Hard to share resources Easy to avoid unintended
  sharing
• High overhead in adding/removing clients
• Threads
• Easy to share resources Perhaps too easy
• Medium overhead
• Not much control over scheduling policies
• Difficult to debug event orderings not
  repeatable
• I/O Multiplexing
• Tedious and low level
• Total control over scheduling
• Very low overhead
• Cannot create as fine grained a level of
  concurrency
• Does not make use of multi-core

19
Potential Form of Unintended Sharing
while (1) int connfd Accept(listenfd,
(SA ) clientaddr, clientlen) Pthread_create(
tid, NULL, echo_thread, (void ) connfd)
main thread
Main thread stack
connfd
connfd connfd1
peer1
Peer1 stack
vargp
connfd vargp
connfd connfd2
Race!
peer2
Peer2 stack
connfd vargp
vargp
Why would both copies of vargp point to same
location?
20
Shared variables in threaded C programs

• Which variables in a C program are shared or not?
• What is the memory model for threads?
• How are instances of the variable mapped to
  memory?
• How many threads reference each of these
  instances?

21
Threads memory model

• Conceptual model
• Each thread runs in the context of a process.
• Each thread has its own separate thread context
• Thread ID, stack, stack pointer, program counter,
  condition codes, and general purpose registers
• All threads share the remaining process context
• Code, data, heap, and shared library segments of
  the process virtual address space
• Open files and installed handlers

22
Threads memory model

• Operationally, this model is not strictly
  enforced
• While register values are truly separate and
  protected....
• Any thread can read and write the stack of any
  other thread.

The MISMATCH between the CONCEPTUAL and OPERATION
MODEL is a source of confusion and errors
23
Shared variable analysis

• 1 include "csapp.h"
• 2 define N 2
• 3 void thread(void vargp)
• 4
• 5 char ptr / global variable /
• 6

24
Shared variable analysis

• 7 int main()
• 8
• 9 int i
• 10 pthread_t tid
• 11 char msgsN
• 12 "Hello from foo",
• 13 "Hello from bar"
• 14
• 15
• 16 ptr msgs
• 17 for (i 0 i lt N i)
• 18 Pthread_create(tid, NULL, thread, (void
  )i)
• 19 Pthread_exit(NULL)
• 20

1 include "csapp.h" 2 define N 2 3 void
thread(void vargp) 4 5 char ptr 6 /
global variable /
25
Shared variable analysis

• 21 void thread(void vargp)
• 22
• 23 int myid (int)vargp
• 24 static int cnt 0
• 25
• 26 printf("ds(cntd)\n", myid, ptrmyid,
  cnt)
• 27

26
Mapping Variable Instances to Memory

• Global variables
• Def Variable declared outside of a function
• Virtual memory contains exactly one instance of
  any global variable
• Local variables
• Def Variable declared inside function without
  static attribute
• Each thread stack contains one instance of each
  local variable
• Local static variables
• Def Variable declared inside function with the
  static attribute
• Virtual memory contains exactly one instance of
  any local static variable.

27
Shared variable analysis

• Which variables are shared?

Variable Referenced by Referenced by Referenced
by instance main thread? peer thread-0? peer
thread-1? ptr yes yes yes cnt no yes yes i.
m yes no no msgs.m yes yes yes myid.p0 no
yes no myid.p1 no no yes
28
Shared variable analysis

• Answer A variable x is shared iff multiple
  threads reference at least one instance of x
• Thus
• ptr, cnt, and msgs are shared.
• i and myid are NOT shared.

29
Shared variable analysis
1 include "csapp.h" 2 3 define NITERS
100000000 4 void count(void arg) 5 6 /
shared variable / 7 unsigned int cnt 0 8

• 9 int main()
• 10
• 11 pthread_t tid1, tid2
• 12
• 13 Pthread_create(tid1, NULL, count, NULL)
• 14 Pthread_create(tid2, NULL, count, NULL)
• 15 Pthread_join(tid1, NULL)
• 16 Pthread_join(tid2, NULL)
• 17
• 18 if (cnt ! (unsigned)NITERS2)
• 19 printf("BOOM! cntd\n", cnt)
• 20 else
• 21 printf("OK cntd\n", cnt)
• 22 exit(0)
• 23

30
Shared variable analysis

• 24
• 25 / thread routine /
• 26 void count(void arg)
• 27
• 28 int i
• 29 for (i0 iltNITERS i)
• 30 cnt
• 31 return NULL
• 32

31
Shared variable analysis
linuxgt badcnt BOOM! cnt198841183 linuxgt
badcnt BOOM! cnt198261801 linuxgt badcnt BOOM!
cnt198269672

• cnt should be equal to 200,000,000.
• What went wrong?!

32
Assembly code for counter loop
C code for thread i
for (i0 iltNITERS i) cnt
33
Assembly code for counter loop
Asm code for thread i
.L9 movl -4(ebp),eax i-4(ebp) cmpl
99999999,eax jle .L12 jmp .L10 .L12 movl
cnt,eax Load leal 1(eax),edx
Update movl edx,cnt Store .L11 movl
-4(ebp),eax leal 1(eax),edx movl
edx,-4(ebp) jmp .L9 .L10
Head (Hi)
Load cnt (Li) Update cnt (Ui) Store cnt (Si)
Tail (Ti)
34
Concurrent execution

• Key idea In general, any sequentially consistent
  interleaving is possible, but some are incorrect!
• Ii denotes that thread i executes instruction I
• eaxi is the contents of eax in thread is
  context

35
Concurrent execution
36
Concurrent execution (cont)

• Incorrect ordering two threads increment the
  counter, but the result is 1 instead of 2.

37
Progress graphs
A progress graph depicts the discrete execution
state space of concurrent threads. Each axis
corresponds to the sequential order
of instructions in a thread. Each point
corresponds to a possible execution state (Inst1,
Inst2). E.g., (L1, S2) denotes state where
thread 1 has completed L1 and thread 2 has
completed S2.
38
Trajectories in progress graphs
A trajectory is a sequence of legal state
transitions that describes one possible
concurrent execution of the threads. Example H
1, L1, U1, H2, L2, S1, T1, U2, S2, T2
39
Critical sections and unsafe regions
L, U, and S form a critical section with respect
to the shared variable cnt. Instructions in
critical sections (write to some shared variable)
should not be interleaved. Sets of states where
such interleaving occurs form unsafe regions.
40
Safe and unsafe trajectories
Def A trajectory is safe iff it doesnt touch
any part of an unsafe region. Claim A
trajectory is correct (write cnt) iff it is
safe.
41
Synchronizing with semaphores

• Dijkstra's P and V operations on semaphores
• semaphore non-negative integer synchronization
  variable.
• P(s) while (s 0) wait() s--
• Dutch for "Proberen" (test)
• V(s) s
• Dutch for "Verhogen" (increment)

42
Synchronizing with semaphores

• Dijkstra's P and V operations on semaphores
• OS guarantees that operations between brackets
  are executed indivisibly.
• Only one P or V operation at a time can modify s.
• When while loop in P terminates, only that P can
  decrement s.
• Semaphore invariant (s gt 0)

43
POSIX semaphores
include ltsemaphore.hgt int sem_init(sem_t sem,
0, unsigned int value) int sem_wait(sem_t s)
/ P(s) / int sem_post(sem_t s) / V(s)
/ include csapp.h void P(sem_t s) /
Wrapper function for sem_wait / void V(sem_t
s) / Wrapper function for sem_wait /
44
Sharing with POSIX semaphores
include "csapp.h" define NITERS
10000000 unsigned int cnt / counter / sem_t
sem / semaphore / int main()
pthread_t tid1, tid2 Sem_init(sem, 0, 1)
/ create 2 threads and wait / ... if
(cnt ! (unsigned)NITERS2) printf("BOOM!
cntd\n", cnt) else printf("OK
cntd\n", cnt) exit(0)
45
Sharing with POSIX semaphores
/ thread routine / void count(void arg)
int i for (i0 iltNITERS i)
P(sem) cnt V(sem)
return NULL
46
Safe sharing with semaphores
Provide mutually exclusive access to shared
variable by surrounding critical section with P
and V operations on semaphore s (initially set to
1). Semaphore invariant creates a forbidden
region that encloses unsafe region and is never
touched by any trajectory.
47
Next

• Semaphores for Shared Resources
• Producer-consumer problem
• Readers-writers problem
• Example
• Concurrent server based on pthreading
• Concurrency Issues
• Thread safe, reentrant, race, and deadlock
• Suggested reading
• 12.5.4-5, 12.7
