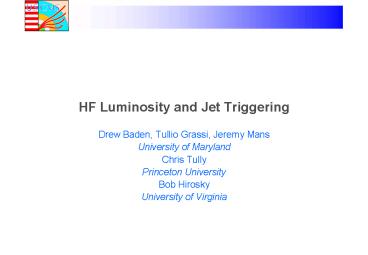

HF Luminosity and Jet Triggering

1
HF Luminosity and Jet Triggering

• Drew Baden, Tullio Grassi, Jeremy Mans
• University of Maryland
• Chris Tully
• Princeton University
• Bob Hirosky
• University of Virginia

2
HF Basics

• HF covers 3lthlt5
• Steel absorber and rad hard quartz fibers
• Cerenkov light collected via phototubes, uniform
  HCAL readout
• HF and HF-
• 36f and 12h 432 towers per side
• Df10 and Dh0.166
• Each tower has a long and a short fiber running
  along z
• Short is in the back ETHAD
• Long is front to back ETEMHAD
• Makes 2x432864 towers per side
• Level 1 Trigger and HF
• Combines 2f x 3h 6 towers 1 trigger primitive
  (TPG)
• Df20 and Dh0.5
• Only used for MET and JETS
• Not for electrons and photons

3
Jets in Level 1

• TPGs
• HB/HE 0.087x0.087 DhxDf 0.5 x 0.35 in HF
• CMS Level 1 Jets
• Calorimeter organized into Regions
• 4x4 TPGs per region in HB and HE
• 1 TPG per region in HF
• Jet finding via sliding window
• Sliding window using 3x3 regions 12x12 TPGs
• Jet candidates are sent from RCT to GCT, which
  sorts and sends candidates to GT by category
• 12 jets, nominally 4 highest each of central,
  forward, and tau jet candidates

TPG (hxf) Region
HB/HE 0.087x0.087 4x4 TPGs
HF 0.5 x 0.35 1 TPG
Calorimeter Region Barrel/Endcap
4
Min Bias

• Min bias distributions _at_ 1034
• ltngt20 (assumes 80mb inelastic)
• ltdn/dhgt ltdn0/dhgt 8 _at_ 14TeV
• ltETgt few GeV (and falls exponentially)
• 20ltngt x 8ch x 10dh x 2GeV 3.2 TeV/interaction
  (Had)
• HF...40 of CMS in Dh coverage
• 640 GeV, 72 TPGs/side, 10 GeV/TPG (_at_ltngt20)
• Current TPG 0.5 x 0.348 hxf
• s
• New Level 1 triggering will need to
• Sharpen efficiency
• Move HLT-like algorithms and resolution as close
  to L1 as possible

Atlas CERN/LHC 96-40
5
SLHC Background Reduction

• Beat down the background L1A rate
• LHC Design luminosity of 1034 has large
  backgrounds
• Depending on the scheme for high luminosity
• ltngt current for 25ns SLHC, rates scale with
  Luminosity
• for continuous beam.smaller ltngt but large
  pileup...not sure
• 100kHz L1A rate is ingrained, will most likely
  hold
• Size of derandomizing buffers, etc.
• Bandwidth to HLT
• Number of HLT processors....
• CMS Calorimeter trigger based on TPGs
• In HF
• 1 TPG 6 towers (3h x 2f)
• Lack of granularity might make it useless for
  Level 1 jet triggers with large number of
  multiple interactions
• In HB and HE
• Jet-finding in Level 1 very inflexible, probably
  cannot be changed
• Ditto for isolated e and g triggers
• We propose to start RD on improvements

Condition Process Rate
1g ETgt60 Jet?p0 ? gg 10Hz
2g ETgt15 Jets ? p0s gg 10Hz
1l pTgt60 W? l, jet? l 10Hz
2l pTgt15 Z ? l l 20Hz
ETmiss gt 150 QCD jets 10Hz
6
SLHC Signal Enhancement

• Add functionality
• Higgs id without a tag is very hard
• Gluon fusion backgrounds are too high, esp at
  1035
• W Boson Fusion (WBF) dominant experimentally
  accessible rate
• Forward jets central Higgs decay
• Tag jets are in HFHE so HE will need to be
  included
• Current trigger at high luminosity will be
  difficult
• Depends on scheme for increasing luminosity of
  course

h (tagged forward jets)
C. Tully H. Pi JetMetPRS Aug 2004
7
Simulation Results
1034/cm2/s

• Chris Tully led effort to study current trigger _at_
  1035/cm2/s
• Chose 25ns RF structure for lack of any better
  guidance
• Compared WBF? qqH to QCD background
• Study feature bit for HF TPG
• Current version bit 1 if any of the 6 towers
  in the TPG gt of total TPG ET
• Used a 2x2 instead of 3x2 for expediency
• Not much discrimination at LHC or SLHC
  luminosities
• At 1035 can see the effect of minbias/underlying
  event adding significant energy to jet
• feature bit becomes featureless

1035/cm2/s
8
A first look

• Current scheme
• Jet candidates using 3x3 CR sum, DhxDf1.5 x 1.0
• Slides window by 1 CR, DhxDf0.5 x 0.35
• New scheme
• Construct jet candidates from 4x4 tower sums,
  DhxDf0.67 x 0.7
• Slide window by 1 tower, DhxDf0.17 x 0.17
• Feature bit on if number of cells needed to sum
  60 of ET (n60) in 4x4 cluster lt cut
• Use n60 lt 7 to set feature bit
• Prelim studies show QCD jets are narrow well
  contained
• Jets from .5 cone all have 2nd moment lt 0.3 in R
• Require jet candidate threshold feature bit
  1
• Can also require perimeter quiet (not studied
  yet)

9
n60

• LHC design luminosity 1034/cm2/s and SLHC
  1034/cm2/s w ith 25ns RF structure
• High efficiency and background rejection for both
  LHC and SLHC
• e gt 80 and background rejection 3 _at_
  1035/cm2/s

1035/cm2/s
1034/cm2/s

10
WBF Signal vs background

• Signal WBF? qqH, MH130 GeV
• Background QCD from uniform sampling 30 300
  GeV
• Central trigger H ? WW ? lnln (lt,e)
• Add forward jet trigger using current and new
  algorithm
• Compare 1034 and 1035
• Current algorithm jet candidtes from DhxDf1.5 x
  1.0 sliding window and feature bit
• New algorithm jet candidates from DhxDf0.67 x
  0.7 sliding window and n60 cut
• Comparison
• Signal
• Efficiency goes up in both cases due to volunteer
  ts in central this needs more study
• Background
• Current algorithm goes from 49 to 100
• New algorithm stable at 30

11
Hardware Design

• We propose NOT changing current HTR
• 48 QIE channels input
• 6 SLB sites
• Each SLB transmits 2 TPGs/twisted pair over 4
  pair
• For HF, 1TPG 6 QIE channels
• 48/6 8 TPG output
• HF HTRs will only populate 1 SLB site
• We will have 5 free SLB sites to use
• Proposal
• Luminosity dedicate 1 SLB site
• Jet trigger dedicate 4 SLB sites

12
Luminosity

• 1st prototype of combined Luminosity/SLB/RCTtest
  board made
• 1 SLB site footprint on bottom
• SLB connectivity
• 36bits from each HTR Xilinx TTCLocalbus
• UW RCT receiver footprint on top
• Xilinx Virtex2PRO FPGA
• Rocket I/O, embedded PPC, block ram...
• Uses
• Level 1/TPG commissioning
• Can host RCT Vitesse quad receiver
• Will buffer TPGs and transmit back into HTR FPGA
  for testing
• Simulating Level 1
• Has RJ45 and SMA output which can drive Jeremys
  HCAL trigger board
• Luminosity
• 72 bits from HTR xilinx can accommodate full
  48-channel single tower threshold
• Output use RJ45 and drive gigabit ethernet
• Under consideration...
• Plan to meet w/MarlowTully soon...

13
HF Trigger

• Topology
• Each HF HTR receives 12h x 4f towers
• Need 9 HTRs per side for the long fibers
• Baseline Jet algorithm
• This suggests a 4x4 sliding window to contain the
  jet
• For isolation another 2 on each side in f (and
  maybe also in h)
• 6x6 for area for each jet candidate
• What are the I/O considerations here?
• Need to be able to get the data from the HF/HTRs
  into some kind of cluster finder

14
HTR/Cluster Finder I/O

• Its all in the edges...
• Figure shows 3 HTR worth of data
• Find 4x4 jets sliding 2 in f over each edge
• There are 5 possible groupings of 4 towers within
  2 of the edge
• Heavy lines show the possible set of towers in f
• For a 6x6 design, will need 3 HTRs worth of data
  for each cluster finder
• Figure shows 2 cases central HTR data and
  leftright for isolation, and a jet that
  straddles the border
• Each HTR will have to send its 12x4 towers to 2
  separate cluster finders
• I/O calculations involve 48 towers
• Cable plant involves 48x2 towers

15
Bandwidth and Cabling

• HTR Xilinx ?4-slot Trigger card (HFT, for HF
  Trigger)
• Needs all 48 channels, but only enough lines to
  send data from 32 channels _at_ 40MHz
• Need to run the transmission at 80MHz.
• 80MHz tests show that with proper termination and
  clock phasing, should work ok
• HFT ? Cluster finder
• Try to send data over cat6/cat7 quad twisted pair
  using 8B/10B
• We already know how to do 8B/10B since we are
  doing this now
• Minimizes costs and engineering (no optical)
• Will need to make the copper cables as short as
  possible
• Need to already consider rack topology

16
Rack Topology

• Chris Tully worked this out with Rohlf and Ianos
• New Luminosity VME crate in the center
  minimizes distance from the 3 HF crates and
  doesnt break Wesleys topology for Level 1
• Goal keep cable lengths lt 5m

17
I/O Scheme Using Copper

• Current scheme
• Use TTC clock into the QPLL to drive our links
• Asynchronous fifo at receiving end for phase
  synchronization
• Alternate scheme
• Use crystal oscillators to drive links, and
  asynchronous FIFOs on TX
• Latency cost in frame clock ticks (80 or 120MHz
  frame clocks)
• Small number of frame clock ticks on TX end
• Logic on receiver end links will be not be
  running at LHC frequency
• Would necessarily increase latency by some small
  number of frame clocks
• Note that current RCTGCT latency is 40 clock
  ticks, so we would have that amount of time to
  play with
• Current HTR firmware uses 12 clock ticks now
• We think we will have plenty of time to produce
  jets for the global trigger

18
I/O Considerations Drive Everything

• Current system SLB transmits using 1.2Gbps links
• Fully populated HTR has links/SLB, each _at_
  1.2Gbps
• Each SLB drives 1 quad twisted pair cable running
  over 10m
• We plan to use 4 SLB sites
• A single card would be 15.5cm high, capable of
  housing an 8way RJ45 connector ala the Princeton
  Fanout card (which has 2 of these)
• So we need to run our links on 4 quad twisted
  pair cat6/7 cables, sending the data to 2
  separate receivers
• So we need to squeeze out all 48 channels onto 4
  quad twisted pair (16 pair)
• Need to send 3 channels/twisted pair every 25ns,
  or 3 bytes _at_ 40MHz
• If we add hamming codes, that would make 4 byes _at_
  40MHz 160MB/s
• Using the same 8B/10B encoding as now, that makes
  1.6Gbps
• This is the same gigabit ethernet that we use now
• Note Xilinx FPGAs have built-in I/O exceeds
  3Gbps
• XC2VP30 has 8 built-in transceivers and costs
  500 today, would need 2 per HFT
• RD is needed here. Note da Silva uses these
  for the ECAL DCC.

19
HF Jet Board (HFJ)

• This will be a 9U VME board in the Luminosity
  crate
• Straightforward design
• Links on RJ45 connectors, deserialized, fanout to
  FPGA
• 9 HTR/side so try to service 3 HTR/HFJ
• 8 RJ45/HLT means 24 RJ45/HFJ HFJ would probably
  have to be 2 VME widths
• Need 3 HFJ/side, or 6 total, or 12 VME slots
• Pin gymnastics
• Each of 24 RJ45 will have 4 twisted pair, or 96
  pair total per HFJ, or 96 deserializers!
• HTRs have 16.maybe this is doable
• Might be better off using something like the
  Vitesse quad deserializers
• 96 deserializers, 20 pins each ? 1920 total
  parallel digital pins
• Use 3 FPGA/HFJ, each HFJ services 32 inputs and
  needs 640 pins for I/O
• Xilinx XC2V4000 flip-chip has 912 user I/O pins,
  there are others
• Clustering algorithms
• Needs a lot of study simulation and hardware
  implementation

20
FPGA Menu
21
Optical I/O Scheme

• Use optical to run faster by x4 and save
  connectors
• 10Gigabit ethernet is becoming more and more
  common
• Supported by the FPGA internal transceivers
• Will definitely need to use crystals for
  transmitting
• Single mode fibers are becoming more and more
  easy to use
• Would allow single-width VME boards for the HFJ
• Fewer connectors (24/HFJ down to 6 optical)
• Board layout, mechanics of connectors, will be
  critical
• RD would have to start soon for this path

22
RD Program

• Scrub design so that we can piggyback on existing
  system and build cards that can be implemented by
  LHC startup
• Keep entire current VME architecture, but add new
  capability
• Run parasitically, collect data, study, iterate
• RD list for Luminosity project
• Settle on Luminosity requirements, finish
  prototype single-SLB width board
• RD list for Trigger project
• Simulation needed to settle on algorithm approach
• HLT card
• Learn how to use new FPGAs with embedded
  processing, DSP, built-in deserializers.
• Verify HTR to HLT _at_ 80MHz
• HLT to HJF transmission
• Study transmitting signals over lt5m cat7 copper
  cables _at_ 1.6Gbps
• Use crystals to drive transmitter as an alternate
  scheme
• RD quad serializers on the HLT and quad
  deserializers on HFJ
• 10G optical transmission using crystals and
  single-mode fibers
• HFJ
• Study algorithms for clustering lots of
  simulation needed here
• RD on how to include HE to get the meat of the
  WBF signal and extend jet trigger to full CMS
