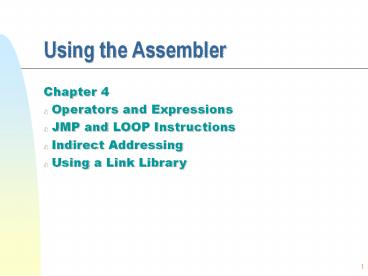

Using the Assembler

1
Using the Assembler

• Chapter 4
• Operators and Expressions
• JMP and LOOP Instructions
• Indirect Addressing
• Using a Link Library

2
Producing the .lst and .map files

• With MASM 6.11, the ML command assemble and links
  a .ASM file
• ml hello.asm
• It produces a .OBJ file and a .EXE file
• Option /Zi produces debugging info for CV
• Option /Fl produces a source listing
• Option /Fm produces a map file
• Ex to produce all of these, type (with spaces)
• ml /Zi /Fl /Fm hello.asm

3
Examining the .lst and .map files

• hello.lst
• The R suffix of an address indicates that it is
  relocatable (resolved at loading time)
• With the .model small directive, MASM aligns the
  segments in memory in the following way
• the stack segment is align at the next available
  paragraph boundary (ie at a physical address
  divisible by 10h)
• the code and data segments are aligned at the
  next available word boundary (ie at a physical
  address divisible by 2)
• The (relative) starting physical address of the
  segments are found in the hello.map file

4
Alignment of the data segment

• The offset address of the first data is generally
  not 0 if the data segment is loaded on a word
  boundary
• Ex if the code part of hello.asm takes 11h bytes
  and starts at 30000h. The first data will start
  at 30012h and DS will contain 3001h.
• .data
• message db "Hello, world!",0dh,0ah,'
• The offset address of message will be 2 instead
  of 0 (check this with Code View)
• mov bx, offset message BX2
• mov bx, offset message1 BX3 ...

5
Alignment of the data segment (cont.)

• TASM however will align the data segment at the
  first paragraph boundary (with the .model small
  directive)
• So the offset address of the first data in the
  data segment will always be 0
• (like it is indicated in section 4.1.4 of the
  textbook)

6
Memory Models supported by MASM and TASM
7
Processor Directives

• By default MASM and TASM only enable the assembly
  of the 8086 instructions
• The .386 directive enables the assembly of 386
  instructions
• instructions can then use 32-bit operands,
  including 32-bit registers
• Place this directive just after .model
• Same principle for all the x86 family
• Ex use the .586 directive to enable the assembly
  of Pentium instructions

8
Using a Link Library

• A link library is a file containing compiled
  procedures. Ex irvine.lib contains procedures
  for doing I/O and string-to-number conversion
  (see table 5 and appendix e). Ex
• Readint reads a signed decimal string from the
  keyboard and stores the corresponding 16-bit
  signed number into AX
• Writeint_signed displays the signed decimal
  string representing the signed number in AX
• To use these procedures in intIO.asm
• ml irvine.lib intIO.asm

9
The EXTRN directive

• A pgm must use the EXTRN directive whenever it
  uses a name that is defined in another file. Ex.
  in intIO.asm we have
• extrn Readintproc, Writeint_signedproc
• For externally defined variables we use either
  byte, word or dword. Ex
• extrn byteVarbyte, wordVarword
• For an externally defined constant, we use abs
• extrn trueabs, falseabs

10
The LOOP instruction

• The easiest way to repeat a block of statements a
  specific number of times
• LOOP label
• where the label must precede LOOP by less than
  127 bytes of code
• LOOP produces the sequence of events
• 1) CX is decremented by 1
• 2) IF (CX0) THEN go to the instruction following
  LOOP, ELSE go to label
• LOOPD uses the 32-bit ECX register as the loop
  counter (.386 directive and up)

11
The LOOP instruction (cont.)

• Ex the following will print all the ASCII codes
  (starting with 00h)
• mov cx,128
• mov dl,0
• mov ah,2
• next
• int 21h
• inc dl
• loop next
• If CX would be initialized to zero
• after executing the block for the 1st time, CX
  would be decremented by 1 and thus contain FFFFh.

• the loop would thus be repeated again 64K times!!


Break ...
12
Indirect Addressing

• Up to now we have only used direct operands
• such an operand is either the immediate value we
  want to use or a register/variable that contains
  the value we want to use
• But to manipulate a set of values stored in a
  large array, we need an operand that can index
  (and run along) the array
• An operand that contains the offset address of
  the data we want to use is called an indirect
  operand
• To specify to the assembler that an operand is
  indirect, we enclose it between

13
Indirect Addressing (cont.)

• Ex if the word located at offset 100h contains
  the value 1234h, the following will load AX with
  1234h and SI100h
• mov ax,si AX1234h if SI100h
• In contrast, the following loads AX with 100h
• mov ax,si AX100h if SI100h
• In conclusion
• mov ax,si loads AX with the content of SI
• mov ax,si loads AX with the word pointed by
  SI

14
Ex summing the elements of an array

• .data
• Arr dw 12,26,43,13,97,16,73,41
• count ( - Arr)/2 number of elements
• .code
• mov ax,0 AX holds the sum
• mov si,offset Arr
• mov cx,count
• L1
• add ax,si
• add si,2 go to the next word
• loop L1

15
Indirect Addressing (cont.)

• For 16-bit registers
• only BX, BP, SI, DI can be used as indirect
  operands
• For 32-bit registers
• EAX, EBX, ECX, EDX, EBP, ESP, ESI, EDI can be
  used as indirect operands
• Caution when using 32-bit registers in real mode
  (only the 1st MB is addressable)
• mov ebx, 1000000h
• mov ax, ebx outside real-mode address space

16
Indirect Addressing (cont.)

• The default segment used for the offset
• it is SS whenever BP, EBP or ESP is used
• it is DS whenever the other registers are used
• This can be overridden by the operator
• mov ax, si offset from DS
• mov ax, essi offset from ES
• mov ax, bp offset from SS
• mov ax, csbp offset from CS
• With indirect addressing, the type is adjust
  according to the destination operand
• mov ax,edi 16-bit operand
• mov ch,ebx 8-bit operand
• mov eax,si 32-bit operand

17
Base and Index Addressing

• Base registers (BX and BP), index registers (SI
  and DI) and 32-bit registers can be use with
  displacements (ie constant and/or variable)
• If A is a variable, the following forms are
  permitted
• mov ax, bp4
• mov ax, 4bp same as above
• mov ax, siA
• mov ax, Asi same as above
• mov ax, Aedx4

18
Base and Index Addressing (cont.)

• Example of using displacements
• .data
• A db 2,4,6,8,10
• .code
• mov si,3
• mov dl, Asi1 DL 10

19
Base-Index Addressing

• Base-index addressing is used when both a base
  and an index register is used as an indirect
  operand.
• When two 16-bit registers are used as indirect
  operands the first one must be a base and the
  second one must be an index
• mov ah, bpbx invalid, both are base
• mov ah, sidi invalid, both are index
• mov ah, bpsi valid, segment is in SS
• mov ah, bxsi valid, segment is in DS

20
Base-Index Addressing (cont.)

• A two dimensional array example
• .data
• rowsize 3
• arr db 10h, 20h, 30h
• db 0Ah, 0Bh, 0Ch
• .code
• mov bx, rowsize choose 2nd row
• mov si, 2 choose 3rd column
• mov al, arrbxsi AL 0Ch
• mov al, arrbxsi

21
Base-Index Addressing with 32-bit registers

• Both of the 32-bit registers can be base or index
  (previous restriction is lifted)
• mov ax, ecxedx permitted, both are index
• mov ax, ebxedx permitted, base and index
• mox ax, ebxedx same as above
• The 1st register determines the segment used
• mov ax,esiebp offset from DS
• mov ax,ebpesi offset from SS
• We can also add displacements
• mov dh, Aesiedi2

Break ...
22
The OFFSET Operator

• The OFFSET returns the distance of a label or
  variable from the beginning of its segment.
• Example
• .data
• bList db 10h, 20h, 30h, 40h
• wList dw 1000h, 2000h, 3000h
• .code
• mov al, bList al 10h
• mov di, offset bList di 0000
• mov bx, offset bList1 bx 0001

23
The SEG Operator

• The SEG operator returns the segment part of a
  label or variables address.
• Example
• push ds
• mov ax, seg array
• mov ds, ax
• mov bx, offset array
• .
• pop ds

24
The PTR Operator (directive)

• Sometimes the assembler cannot figure out the
  type of the operand. Ex
• mov bx,1
• should value 01h be moved to the location pointed
  by BX, or should it be value 0001h ?
• The PTR operator forces the type
• mov byte ptr bx, 1 moves 01h
• mov word ptr bx, 1 moves 0001h
• mov dword ptr bx, 1 moves 00000001h

25
The LABEL directive

• It gives a name and a size to an existing storage
  location. It does not allocate storage.
• It must be used in conjunction with byte, word,
  dword, qword...
• .data
• val16 label word
• val32 dd 12345678h
• .code
• mov eax,val32 EAX 12345678h
• mov ax,val32 error
• mov ax,val16 AX 5678h
• val16 is just an alias for the first two bytes of
  the storage location val32

26
The TYPE Operator

• It returns the size, in bytes, of a variable
• .data
• var1 dw 1, 2, 3
• var2 dd 4, 5, 6
• .code
• mov bx, type var1 BX 2
• mov bx, type var2 BX 4
• Handy for array processing. Ex If SI points to
  an element of var2, then to make SI point to the
  next element, we can simply write
• add si, type var2

27
The LENGTH, SIZE Operators

• The LENGTH operator counts the number of
  individual elements in a variable that has been
  defined using DUP.
• .data
• var1 dw 1000
• var2 db 10, 20, 30
• array dw 32 dup(0)
• .code
• mov ax, length var1 ax1
• mov ax, length var2 ax1
• mov ax, length array ax32
• The SIZE operator is equivalent to LENGTHTYPE

28
Sign and Zero Extend Instructions

• MOVZX (move with zero-extend)
• MOVSX (move with sign-extend)
• Both move the source into a destination of larger
  size (valid only for 386 and later processors)
• imm operands are not allowed
• mov bl, 07h
• mov bh, 80h
• movzx ax,bh AX 0080h
• movsx dx,bh DX FF80h
• movsx ax, bl AX 0007h
• movzx ecx,dx ECX 0000FF80h
• movsx ecx,dx ECX FFFFFF80h
• movsx ecx,ax ECX 00000007h
