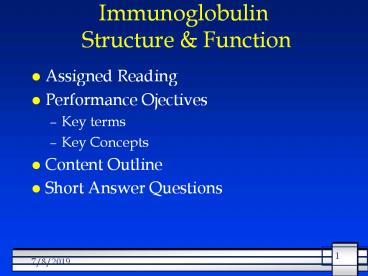

Immunoglobulin Structure Function

• Assigned Reading
• Performance Ojectives
• Key terms
• Key Concepts
• Content Outline
• Short Answer Questions

2
Angels Devils
3
Assigned Reading

• Chapter 5 pp107-142
• Janis Kubys Immunology 3rd Ed

4
Content Outline

• Basic Structure
• B Cell Receptor
• Antigenic Determinants of Igs
• Immunoglobulin Superfamily
• Ig Classes

• Monoclonal Antibodies (MABS)
• Immunoglobulin Sequencing Studies
• Immunoglobulin Fine Structure

5
Background
6
Tiselius
7
Electrophoresis
8
General Structure of Immunoglobulins

• Electron microscopy
• Crystallography
• Hinge region
• light heavy chains
• binding site
• domains
• fragments

9
IgG Crystal
10
X - Ray Crystallography

• Crystallized Antigen or Antigen - Antibody
  Complex
• Electron Density Map of the Molecule
• Three Dimensional Images

11
Antibodies contain a flexible hinge region

• EM evidence
• Location
• Chemical Structure
• Advantages

12
Antibody Flexibility

• EMs of same conc of antibody mixed with different
  conc of antigen
• Ag-Ab complexes form different shapes
• Ag is inflexible
• AB MUST BE FLEXIBLE

13
Ag-Ab Complexes
14
Immunoglobulin flexible hinge
15
Hinge Prolines
16
Advantages of hinge

• Rotation around central point
• Bind antigens at various distances
• Bind various ratios of antigens

Blocks or binds to antigens over a wide range of
concentrations
17
Structure of IgG
18
IgG Domains
19
IgG Enzyme hydrolysis
20
Ag-Ab complexes after Pepsin
21
B Cell Receptor

• BEFORE IMMUNIZATION
• Ig genes are organized Igs assembled
• Anchored on membrane as specific receptors for
  immunogen
• AFTER IMMUNIZATION
• different expression of Ig genes
• lose anchorgtgt secreted
• different class of Ig secreted

22
Antigenic Determinants of Igs

• Immunoglobulins are immunogenic
• Inject human antibodies into a mouse
• Mouse develops anti-Human antibodies
• Use these antibodies to probe structure of
  immunoglobulins
• Three classes of anti-antibodies
• Isotypes
• Allotypes
• Idiotypes

23
Antibody Classes Outline

• 5 classes of antibodies
• Concentration of classes
• Structure and function of
• IgG
• IgM
• IgA
• IgD
• IgE

24
Immunoglobulin Classes

• Immunoglobulin A IgA, mA
• Immunoglobulin D IgD, mD
• Immunoglobulin E IgE, mE
• Immunoglobulin G IgG, mG
• Immunoglobulin M IgM, mM

25
Immunoglobuin concentrations
26
Ig Superfamily
27
IgG Physicochemical Properties

• Molecular weight
• Sedimentation constant 7S
• Total 146,000
• Heavy chain 51,000
• Isotypes 4
• Heavy chain domains 4
• Carbohydrate () 2-3
• half life (days) 21

28
Structure of IgG
29
IgG Domains
30
IgG subclasses
31
IgG Functions

• Bind antigen in tissue fluids
• Promote destruction of antigen
• activates complement
• Promote phagocytosis
• binds to Fc receptors on macrophages
• Passive protection of fetus
• binds to receptors on placenta
• transferred to fetal circulation

32
Functions of IgG Domains

• VH VL Antigen binding
• CH1 Complement binding c4b
• CH2 complement binding C1q
• CH3 Macrophage binding,Fc receptor
• CH2 CH3 neutrophil K cell binding, bind to
  placental syncytiotrophoblast

33
Primary vs Secondary Response
34
IgMPhysicochemical Properties

• Molecular weight
• Sedimentation constant 19 S
• Total 900,000
• Heavy chain 65,000
• Isotypes 1
• Heavy chain domains 5
• Carbohydrate () 12
• half life (days) 5

35
IgM Structure
36
IgM Heavy chains
37
IgM Functions

• Antigen receptor for B cell
• Short term protection
• binds tightly to antigen
• (high avidity)

38
IgAPhysicochemical Properties

•
  Serum Secretory
• Molecular weight
• Sedimentation constant 7S 11S
• Total 160,000
  385,000
• Heavy chain 52-56,000
  52,56,000
• Isotypes 2
  2
• Heavy chain domains 4 4
• Carbohydrate () 7-11 7-11
• Half life (days) 6 6

39
Structure of IgA
40
IgA dimers
41
EM of IgA
42
Secretion of IgA
43
IgA Functions

• Protects body surfaces against invading microbes
• Secretory IgA -
• transported to epithelium
• secreted in mucus, milk tears
• Blood IgA -
• transported to liver
• binds to hepatocytes
• secreted into bile

44
J chain

• Small polypeptide chain
• found in polymeric classes of antibodies
• Acts as a clasp to join prototype subunits
• produced by same cell that makes antibodies

45
J chain structure
46
J chain Beta sheets
47
J Chain Barrel
48
IgE Physicochemical Properties

• Molecular weight 188,000
• Sedimentation constant 8S
• Total 188,000
• Heavy chain 72,500
• Isotypes 1
• Heavy chain domains 5
• Carbohydrate () 12
• half life (days) 2

49
Structure of IgE
50
Molecular model of IgE
51
IgE Functions

• Mediates inflammatory response
• Immunity to parasitic worms
• Mediates many allergies (type I)

52
IgD Physicochemical Properties

• Molecular weight
• Sedimentation constant 7S
• Total 184,000
• Heavy chain 70,000
• Isotypes 1
• Heavy chain domains 4
• Carbohydrate () 9-14
• half life (days) 3

53
IgD Structure
54
IgD Hinge region
55
Substructure of IgD
56
Mouse IgD
57
Mouse IgD
58
IgD Function

• Activation of B cells by antigen
• IgD membrane antigen receptor
• Indicator of Mature B cells
• low levels of IgD IgM in Bone marrow
• high levels of IgD IgM in peripheral lymphoid
  organs

59
DONE!!!
60
Performance Objectives
61
Key Terms

• allotypes, allotypic determinants, Am
  determinants, Gm determinants,
• Km determinants, Bence Jones proteins,
  Antibodies, immunoglobulin classes,
• antibody subclasses, constant region (C), Fab
  fragment, Fab' fragment,
• F(ab')2 fragment, Fc fragment, Framework residues
  (FR), Heavy chain,

62

• hinge regions, chimeric antibodies, hybridoma,
  hypervariable regions (HVRs),
• complematrarity determining regions(CDRs)
• Hypoxantinine-Aminoopterin-Thymidine medium
  (HAT),idiotypes, idiotypic determinants,
• immunoglobulin domains immunoglobulins, isotype,
  isotypic determinants,

63

• joining chain (J), Light chain, monoclonal
  antibodies, multiple myeloma,
• Secretory Iga, Segmental flexibility, variable
  regions (V)

64
Key Concepts

• Distinguish between the overall structure and the
  fine structure of immunoglobulins
• Describe the variable and constant regions of
  immunoglobulins light and heavy chains
• Explain the structural organization of the
  variable regions of an immunoglobulins light and
  heavy chains

65

• Differentiate between Hypervariable regions and
  complementarity determining regions
• Contrast monoclonal antibody production vs
  polyclonal antibody production
• Discuss the differences in the biological
  effector functions of the different classes of
  immunoglobulins

66

• Diagram the procedure for monoclonal antibody
  production
• Construct a table comparing the biological
  characteristics of the five classes of
  immunoglobulins
• Construct a table comparing the biochemical and
  biophysical characteristics of the five classes
  of immunoglobulins

67
Short Answer Questions
68

• The analysis of IgG molecules after hydrolysis by
  pepsin and papain led to similar yet different
  results. Explain.
• What is the difference between and immunoglobulin
  and a myeloma protein?
• Why were myeloma proteins and Bence Jones
  proteins critical to the early studies on
  antibody structure? What has largely replaced
  them?

69

• Differentiate among, complementarity determining
  regions, hypervariable regions and framework
  regions.
• Explain the statements "Antibodies can be
  antigens" and "Antibodies can be used to
  characterize antibodies".
• Discuss the terms immunoglobulin isotypes,
  immunoglobulin allotypes and immunoglobulin
  idiotypes and give examples of each.

70

• Compare conventional antibody production with
  monocloanl antibody production and recombinant
  antibody production.
• What are antibody domains?
• Why can't light chains be used to classify
  antibodies?
• The function of an immunoglobulin molecule is
  related to its structure. Explain.

71

• Different cellular fusion products can
  potentially occur in a hybridoma fusion.
• What are the potential products?
• Why are they a problem?
• How can you obtain the appropriate
  combination?
• Distinguish between idiotypes and anti-idiotypes.
