Title: Marco Sirianni (ESA/STScI)


1

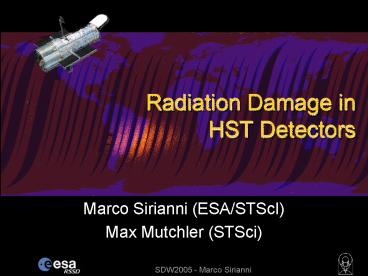

Radiation Damage in HST Detectors
  • Marco Sirianni (ESA/STScI)
  • Max Mutchler (STSci)

2
Detectors on HST
3
CCDs on HST
ACS/WFC FPA 2x SiTe 4048x2096 Thinned
Backside CCDs 15mm pixel size - MPP
(integration only) Site VIS-AR Coating - 4 amps
readout T -77 C 3 mm minichannel
ACS/HRC FPA 1x SiTe 1024x1024 Thinned
Backside CCDs 21 mm pixel size - MPP - Site NUV
AR Coating 1 amp readout
T - 81 C 3 mm
minichannel
4
HST Radiation Environment
  • LEO - alt. 580 Km, incl. 28.41 - 14.99 rev/day

7/9 orbits/day are SAA free 6/8 orbits/day
are SAA impacted LEO are quite shielded orbits
still
5
Radiation Damage
  • MPP devices are mainly sensitive to displacement
    damage
  • Vacancies migrate until a stable configuration
    is
  • reached mainly
  • P-V centers
  • V-O centers
  • V-V centers
  • Any new energy level in the bandgap acts as
    emission/trapping site
  • Direct impact on
  • - Dark Current increase
  • - hot pixels ( Field-enhanced dark spikes )
  • - CTE degradation

6
Single Event effect
  • On June 2003 one of the four ACS/WFC amplifier
    showed a jump in read noise 1 e- rms in
    amplitude.
  • The change occurred during a SAA transit and
    stabilized to 0.6 e- after few anneal cycles.

STIS suffered of a similar problem six months
before The failure of the side-1 electronics.
7
Dark Current variation
As expected the dark rate increases linearly with
time
8
Dark Current comparison
Dark rate increase e-/pix/hr/yr
WFC HRC STIS WFPC2 WF3
Predicted (rad. Test) 1.5 (-81 C) n.a n.a n.a 1.4 (-83 C)
Observed 1.8 2.1 3.3 (side 1) 2.2 (side 2) 2.0 (0-5 yr) 0 after
Temp. -77 C -81 C -83 C / (lt -83 C) -88 C
9
Hot Pixels ACS HRC
Pre flight dark frame - selected 256x256 pix
region
10
Hot Pixels ACS WFC
11
Hot Pixels ACS WFC
12
Annealing of defects
  • In order to remove contamination from the
    detector windows WFPC2 is heated once a month to
    22 C
  • It has been noticed a reduction of hot pixels
    after the CCD warm-up (up to 80)
  • All known traps anneal at much higher temperature
    (150-320 C)
  • STIS and ACS also warm up the CCDs once a month
  • to anneal hot pixels.

13
Hot pixel annealing
Annealing Rate constant with time depends
on the threshold same rate for 24,12,6hr
soak same rate at -10 C
14
Annealing comparison
Instrument Temp (CCD/ann.) Threshold (e-/pix/sec) Anneal rate Source
STIS -83 / 5 gt 0.1 80 75 Hayes et al.1998 Kim Quijano et al. 2003
WFPC2 -88 / 22 gt 0.02 variable 80 Koekemoer et al. 2003
WFC3 ground -83 / 30 gt0.01 gt0.04 80 97 Polidan et al. 2004
15
Life of a hot pixels
16
Permanent hot pixels
17
Permanent hot pixels..
18
Permanent hot pixels..
Permanent hot pixel growth ( of total number of
pixels / year)
Threshold e-/pix/sec WFC HRC STIS WFPC2
temp - 77 C - 80 C - 83 C - 88 C
Dark curr. 0.003 0.004 0.006 0.008
gt 0.02 1.60 1.54 2.99 (0.30--0.11)
gt0.04 0.78 0.52
gt0.06 0.46 0.29
gt0.08 0.30 0.21
gt0.10 0.23 0.17 0.36
gt1 0.03 0.02 0.08
19
Annealing lesson learned
  • We still do not why 0-20 C annealing is
    effective
  • Only field-enhanced hot pixels are effected,
    there is no measurable impact on the uniform dark
    rate.
  • The anneal rate depends on the dark rate of the
    pixel
  • 24, 12, or 6 hr at 20 give the same annealing
    rate
  • The same improvement is seen at -10 C (24-48hr)
  • Evidence of reverse annealing
  • Compete anneal is rare

20
CTE monitoring
  • WFPC2/STIS/ACS empirical correction for point
    source photometry
  • Measurement of charge loss as a function of
  • signal - position - background and epoch
  • ACS EPER and FPR (only serial for WFC)
  • Every six months at several signal levels
  • Every month at the Fe55 level (1620e-)
  • Different temperature (from -76 C to -88 C)
  • different clock rate (parallel clock rate from
    20 to 60 Hz)
  • different shielding (different trap
    population)

21
CTE measurement
We can investigate CTE degradation as a function
of time/signal level. Ex WFC -A EPER
And predict the impact of science data in the
next few years
22
CTE trend
At all signal levels CTE degradation is
linear with fluence
WFC PARALLEL EPER
23
CTE Degradation rate
24
Conclusion
  • In 15 years more 22 detectors have flown on HST
  • Different architectures in the same radiative
    environment
  • Unique possibility
  • To try to understand what is really going
  • To provide information for the development/operati
    on of future space detectors
  • Huge archive but data collection and analysis did
    not followed any standard.

25
Conclusions
  • We have started with CCDs analysis
  • Dark rate increase and Hot pixel generation is
    quite well understood - they are a concern, but
    not an issue.
  • CTE is an issue, little mitigation is possible
  • WFPC2 saturation to radiation is a mystery
  • We have better understanding of annealing
    effectiveness, but we still do not why it occurs
  • We will post the data of the analysis on a
    dedicated web page at STScI.
