Some Salient Characteristics of Java

1

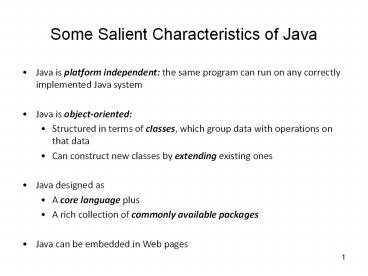

Some Salient Characteristics of Java

• Java is platform independent the same program
  can run on any correctly implemented Java system
• Java is object-oriented
• Structured in terms of classes, which group data
  with operations on that data
• Can construct new classes by extending existing
  ones
• Java designed as
• A core language plus
• A rich collection of commonly available packages
• Java can be embedded in Web pages

2
JRE JDK

• A Java distribution comes typically in two
  flavors, the Java Runtime Environment (JRE) and
  the Java Development Kit (JDK).
• The Java runtime environment (JRE) consists of
  the JVM and the Java class libraries and contains
  the necessary functionality to start Java
  programs.
• The JDK contains in addition the development
  tools necessary to create Java programs. The JDK
  consists therefore of a Java compiler, the Java
  virtual machine, and the Java class libraries.

3
JVM

• JVM (Java virtual machine)
• Is a software implementation of a computer that
  executes programs like a real machine. Is written
  specifically for a specific operating system.
  Java programs are compiled by the Java compiler
  into bytecode. The Java virtual machine
  interprets this bytecode and executes the Java
  program.
• This gives Java the write once run anywhere
  nature.

4
Java Processing and Execution

• Begin with Java source code in text files
  Model.java
• A Java source code compiler produces Java byte
  code
• Outputs one file per class Model.class
• A Java Virtual Machine loads and executes class
  files

5
Compiling and Executing a Java Program
6
Classloader Classpath

• ClassLoader
• The Java ClassLoader is a crucial, but often
  overlooked, component of the Java run-time
  system. It is the class responsible for finding
  and loading class files at run time. Creating
  your own ClassLoader lets you customize the JVM
  in useful and interesting ways, allowing you to
  completely redefine how class files are brought
  into the system.
• Classpath
• The classpath defines where the Java compiler and
  Java runtime look for .class files to load. This
  instructions can be used in the Java program. For
  example if you want to use an external Java
  library you have to add this library to your
  classpath to use it in your program.

7
Garbage Collector

• Garbage collector
• The JVM automatically re-collects the memory
  which is not referred to by other objects. The
  java garbage collector checks all object
  references and find the objects which can be
  automatically released.
• While the garbage collector releases the
  programmer from the need to explicitly manage
  memory the programmer still need to ensure that
  he does not keep unneeded object references
  otherwise the garbage collector cannot release
  the associated memory. Keeping unneeded object
  references are typically called memory leaks.

8
Package

• Java groups classes into functional packages.
• Packages are typically used to group classes into
  logical units. For example all graphical views of
  an application might be placed in the same
  package called com.appname.application.views
• Other main reason for the usage of packages is to
  avoid name collisions of classes. A name
  collision occurs if two programmers give the
  same fully qualified name to a class. The fully
  qualified name of a class in Java consists out of
  the package name followed by a dot (.) and the
  class name. (package1.class1 package2.class1)
• The import statement tells the compiler to make
  available classes and methods of another package
• (See coding practices for naming)

9
Classes and Objects

• The class is the unit of programming. The class
  can be seen as the blueprint of an object. It
  describes how an object is created.
• A Java program is a collection of classes
• Each class definition (usually) in its own .java
  file
• The file name must match the class name
• A class describes objects (instances)
• Describes their common characteristics is a
  blueprint
• Thus all the instances have these same
  characteristics
• These characteristics are
• Data fields for each object
• Methods (operations) that do work on the objects

10
Inheritance

• A class can be derived from another class. In
  this case this class is called a subclass.
  Another common phrase is that a class extends
  another class.
• Inheritance is a mechanism in which one object
  acquires all the properties and behavior of
  another object of another class.
• It represents the IS A relations
• Multiple inheritance is not supported in Java.

11
Abstraction Encapsulation

• Abstraction is the process of hiding
  implementation details and showing only
  functionality.
• Abstraction hides the implementation details,
  whereas encapsulation hides the data.
• Abstraction lets you focus on what the object
  does rather than how it does it.

12
Abstract Class

• A class that is declared as abstract is known as
  abstract class.
• It needs to be extended and its method
  implemented.
• It cannot be instantiated.

public abstract class MyAbstractClass abstract
double returnDouble()
13
Abstract class vs Interface
14
Interface

• Interface is a blueprint of a class that have
  static constants and abstract methods.
• It can be used to achieve fully abstraction and
  multiple inheritance.

public interface MyDefinition // constant
definition String URL"http//www.google.com"
// define several method stubs void test()
void write(String s)
15
References and Primitive Data Types

• Java distinguishes two kinds of entities
• Primitive types
• Objects
• Primitive-type data is stored in primitive-type
  variables
• Reference variables store the address of an
  object
• No notion of object (physically) in the stack
• No notion of object (physically) within an
  object

16
Primitive Data Types

• Represent numbers, characters, boolean values
• Integers byte, short, int, and long
• Real numbers float and double
• Characters char

17
Operators

• subscript , call ( ), member access .
• pre/post-increment --, boolean complement !,
  bitwise complement , unary -, type cast
  (type), object creation new
• /
• binary - ( also concatenates strings)
• signed shift ltlt gtgt, unsigned shift gtgtgt
• comparison lt lt gt gt, class test instanceof
• equality comparison !
• bitwise and
• bitwise or
• logical (sequential) and
• logical (sequential) or
• conditional cond ? true-expr false-expr
• assignment , compound assignment - / ltlt
  gtgt gtgtgt

18
Declaring and Setting Variables

• int square
• square n n
• double cube n (double)square
• Can generally declare local variables where they
  are initialized
• All variables get a safe initial value anyway
  (zero/null)

19
Referencing and Creating Objects

• You can declare reference variables
• They reference objects of specified types
• Two reference variables can reference the same
  object
• The new operator creates an instance of a class
• A constructor executes when a new object is
  created
• Example String greeting ?hello?

20
Constructor

• Constructor is just like a method that is use to
  initialize the state of an object.
• It is invoked at the time of creation.
• The return value is the current instance

21
Methods

• A Java method defines a group of statements as
  performing a particular operation
• static indicates a static or class method
• A method that is not static is an instance method
• All method arguments are call-by-value
• Primitive type value is passed to the method
• Method may modify local copy but will not affect
  callers value
• Object reference address of object is passed
• Change to reference variable does not affect
  caller
• But operations can affect the object, visible to
  caller

22
Method Overloading vs Method Overwriting

• If a class has multiple methods by the same name
  but different parameters its called method
  Overloading. It increases the readibility of the
  program.
• If a subclass provides a specific implementation
  of a method that is already provided by its
  parent class it is known as method overriding. It
  is used for runtime polymorphism.

23
Escape Sequences

• An escape sequence is a sequence of two
  characters beginning with the character \
• A way to represents special characters/symbols

24
The String Class

• The String class defines a data type that is used
  to store a sequence of characters
• String is an immutable object
• You cannot modify a String object
• If you attempt to do so, Java will create a new
  object that contains the modified character
  sequence

25
The StringBuffer Class

• Stores character sequences
• Unlike a String object, you can change the
  contents of a StringBuffer object

26
StringTokenizer Class

• We often need to process individual pieces, or
  tokens, of a String

27
Wrapper Classes for Primitive Types

• Sometimes we need to process primitive-type data
  as objects
• Java provides a set of classes called wrapper
  classes whose objects contain primitive-type
  values Float, Double, Integer, Boolean,
  Character, etc.

28
Modifiers

• Access modifiers
• There are three access modifiers keywords
  available in Java. public, protected and private.
• There are four access levels public, protected, d
  efault and private. They define how the
  corresponding element is visible to other
  components.

Modifier Class Package Subclass World
public Y Y Y Y
protected Y Y Y N
no modifier Y Y N N
private Y N N N
Table 1. Access Level
29
Static

• Variables
• Static variable is used to refer the common
  property of all objects (that is not unique for
  each object)
• Static variables get memory only once in class
  area at the time of loading
• Methods
• Static methods belong to the class rather than
  the object of a class.
• A static method can be invocked withouth a need
  to create na instance of the class.
• Static methods can access static data and change
  their value

30
Final

• Variable
• You cannot change the value of final variables.
• Method
• Final methods cannot be overwritten (see previous
  slide)
• Class
• Final classes cannot be inherited.

31
Converting Numeric Strings to Numbers

• A dialog window always returns a reference to a
  String
• Therefore, a conversion is required, using static
  methods of class String

32
Input/Output using Streams

• An InputStream is a sequence of characters
  representing program input data
• An OutputStream is a sequence of characters
  representing program output
• The console keyboard stream is System.in
• The console window is associated with System.out

33
Opening and Using Files Reading Input

• import java.io.
• public static void main (String args)
• // open an input stream (exceptions!)
• BufferedReader rdr
• new BufferedReader(
• new FileReader(args0))
• // read a line of input
• String line rdr.readLine()
• // see if at end of file
• if (line null) ...

34
Opening and Using Files Reading Input (2)

• // using input with StringTokenizer
• StringTokenizer sTok
• new StringTokenizer (line)
• while (sTok.hasMoreElements())
• String token sTok.nextToken()
• ...
• // when done, always close a stream/reader
• rdr.close()

35
Alternate Ways to Split a String

• Use the split method of String
• String s.split(\\s)
• // see class Pattern in java.util.regex
• Use a StreamTokenizer (in java.io)

36
Opening and Using Files Writing Output

• // open a print stream (exceptions!)
• PrintStream ps new PrintStream(args0)
• // ways to write output
• ps.print(Hello) // a string
• ps.print(i3) // an integer
• ps.println( and goodbye.) // with NL
• ps.printf(2d 12dn, i, 1ltlti) // like C
• ps.format(2d 12dn, i, 1ltlti) // same
• // closing output streams is very important!
• ps.close()

37
Exceptions

• What are they?
• An exception is a representation of an error
  condition or a situation that is not the expected
  result of a method.
• Exceptions fall into two categories
• Checked Exceptions
• Unchecked Exceptions
• Checked exceptions are inherited from the core
  Java class Exception. They represent exceptions
  that are frequently considered non fatal to
  program execution
• Checked exceptions must be handled in your code,
  or passed to parent classes for handling.

38
Exceptions (2)

• Unchecked exceptions represent error conditions
  that are considered fatal to program execution.
• You do not have to do anything with an unchecked
  exception. Your program will terminate with an
  appropriate error message.
• To handle the exception, you write a try-catch
  block. To pass the exception up the chain, you
  declare a throws clause in your method or class
  declaration.

39
Coding Exceptions

• Example
• try normal program codecatch(Exception e)
  exception handling code

40
Throw vs Throws
41
What is a Thread?

• Individual and separate unit of execution that is
  part of a process
• multiple threads can work together to accomplish
  a common goal
• Video Game example
• one thread for graphics
• one thread for user interaction
• one thread for networking

42
Advantages

• easier to program
• 1 thread per task
• can provide better performance
• thread only runs when needed
• no polling to decide what to do
• multiple threads can share resources
• utilize multiple processors if available

43
Creating Threads (method 1)

• extending the Thread class
• must implement the run() method
• thread ends when run() method finishes
• call .start() to get the thread ready to run

44
Creating Threads Example 1

• class Output extends Thread
• private String toSay
• public Output(String st)
• toSay st
• public void run()
• try
• for()
• System.out.println(toSay)
• sleep(1000)
• catch(InterruptedException e)
• System.out.println(e)

45
Example 1 (continued)

• class Program
• public static void main(String args)
• Output thr1 new Output(Hello)
• Output thr2 new Output(There)
• thr1.start()
• thr2.start()
• main thread is just another thread (happens to
  start first)
• main thread can end before the others do
• any thread can spawn more threads

46
Creating Threads (method 2)

• implementing Runnable interface
• virtually identical to extending Thread class
• must still define the run()method
• setting up the threads is slightly different

47
Creating Threads Example 2

• class Output implements Runnable
• private String toSay
• public Output(String st)
• toSay st
• public void run()
• try
• for()
• System.out.println(toSay)
• Thread.sleep(1000)
• catch(InterruptedException e)
• System.out.println(e)

48
Example 2 (continued)

• class Program
• public static void main(String args)
• Output out1 new Output(Hello)
• Output out2 new Output(There)
• Thread thr1 new Thread(out1)
• Thread thr2 new Thread(out2)
• thr1.start()
• thr2.start()
• main is a bit more complex
• everything else identical for the most part

49
Advantage of Using Runnable

• remember - can only extend one class (no multiple
  extends)
• implementing runnable allows class to extend
  something else

50
Controlling Java Threads

• _.start() begins a thread running
• wait() and notify() for synchronization
• more on this later
• _.stop() kills a specific thread (deprecated)
• _.suspend() and resume() deprecated
• _.join() wait for specific thread to finish
• _.setPriority() 0 to 10 (MIN_PRIORITY to
  MAX_PRIORITY) 5 is default (NORM_PRIORITY)

51
Java Thread Scheduling

• highest priority thread runs
• if more than one, arbitrary
• yield() current thread gives up processor so
  another of equal priority can run
• if none of equal priority, it runs again
• sleep(msec) stop executing for set time
• lower priority thread can run

52
States of Java Threads

• 4 separate states
• new just created but not started
• runnable created, started, and able to run
• blocked created and started but unable to run
  because it is waiting for some event to occur
• dead thread has finished or been stopped

53
States of Java Threads
stop(), end of run method
start()
runnable
new
dead
wait(), I/O request, suspend()
notify(), I/O completion, resume()
blocked
54
synchronized Statement

• Every object has a lock associated with it.
• Calling a synchronized method attempts to possess
  the lock
• If no one owns the lock, then this thread
  has/owns the lock.
• If a calling thread does not own the lock
  (another thread already owns it), the calling
  thread is placed in the entry set for the
  objects lock.
• The lock is released when a thread exits the
  synchronized method.

55
Defining Your Own Classes

• Unified Modeling Language (UML) is a standard
  diagram notation for describing a class

Field signatures type and name
Method signatures name, argument types, result
type
Class name
Field values
Class name
56
Processing and Running HelloWorld

• javac HelloWorld.java
• Produces HelloWorld.class (byte code)
• java HelloWorld
• Starts the JVM and runs the main method
