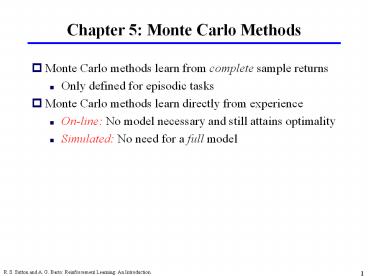

Chapter 5: Monte Carlo Methods

1
Chapter 5 Monte Carlo Methods

• Monte Carlo methods learn from complete sample
  returns
• Only defined for episodic tasks
• Monte Carlo methods learn directly from
  experience
• On-line No model necessary and still attains
  optimality
• Simulated No need for a full model

2
Monte Carlo Policy Evaluation

• Goal learn Vp(s)
• Given some number of episodes under p which
  contain s
• Idea Average returns observed after visits to s

• Every-Visit MC average returns for every time s
  is visited in an episode
• First-visit MC average returns only for first
  time s is visited in an episode
• Both converge asymptotically

3
First-visit Monte Carlo Policy Evaluation
Initialize p policy to be evaluated V an
arbitrary state-value function Returns(s) empty
list, for all seS Repeat forever Generate an
episode using p For each state s appearing in the
episode R return following the first occurrence
of s Append R to Return(s) V(s) average(Returns(s)
)
4
Blackjack example

• Object Have your card sum be greater than the
  dealers without exceeding 21.
• States (200 of them)
• current sum (12-21)
• dealers showing card (ace-10)
• do I have a useable ace?
• Reward 1 for winning, 0 for a draw, -1 for
  losing
• Actions stick (stop receiving cards), hit
  (receive another card)
• Policy Stick if my sum is 20 or 21, else hit

5
Blackjack Value Functions

• After many MC state visit evaluations the
  state-value function is well approximated
• Dynamic Programming parameters difficult to
  formulate here!
• For instance with a given hand and a decision to
  stay what would be the expected return value?

6
Backup Diagram for Monte Carlo

• Entire episode is included while in DP only one
  step transitions
• Only one choice at each state (unlike DP which
  uses all possible transitions in one step)
• Estimates for all states are independent so MC
  does not bootstrap (build on other estimates)
• Time required to estimate one state does not
  depend on the total number of states

7
The Power of Monte Carlo
Example - Elastic Membrane (Dirichlet Problem)
How do we compute the shape of the membrane or
bubble attached to a fixed frame?
8
Two Approaches
Relaxation Iterate on the grid and compute
averages (like DP iterations)
Kakutanis algorithm, 1945 Use many random walks
and average the boundary points values (like MC
approach)
9
Monte Carlo Estimation of Action Values (Q)

• Monte Carlo is most useful when a model is not
  available
• We want to learn Q
• Qp(s,a) - average return starting from state s
  and action a following p
• Converges asymptotically if every state-action
  pair is visited
• To assure this we must maintain exploration to
  visit many state-action pairs
• Exploring starts Every state-action pair has a
  non-zero probability of being the starting pair

10
Monte Carlo Control (to approximate an optimal
policy)
Generalized Policy Iteration GPI

• MC policy iteration Policy evaluation by
  approximating Qp using MC methods, followed by
  policy improvement
• Policy improvement step greedy with respect to
  Qp (action-value) function no model needed to
  construct greedy policy

11
Convergence of MC Control

• Policy improvement theorem tells us

• This assumes exploring starts and infinite number
  of episodes for MC policy evaluation
• To solve the latter
• update only to a given level of performance
• alternate between evaluation and improvement per
  episode

12
Monte Carlo Exploring Starts
Fixed point is optimal policy p Proof is one of
the fundamental questions of RL
13
Blackjack Example continued

• Exploring starts easy to enforce by generating
  state-action pairs randomly
• Initial policy as described before (sticks only
  at 20 or 21)
• Initial action-value function equal to zero

14
On-policy Monte Carlo Control

• On-policy learn or improve the policy currently
  executing
• How do we get rid of exploring starts?
• Need soft policies p(s,a) gt 0 for all s and a
• e.g. e-soft policy
• probability of action selection

• Similar to GPI move policy towards greedy policy
  (i.e. e-soft)
• Converges to best e-soft policy

15
On-policy MC Control
16
Learning about p while following another
17
Off-policy Monte Carlo control

• On-policy estimates the policy value while
  following it
• so the policy to generate behavior and estimate
  its result is identical
• Off-policy assumes separate behavior and
  estimation policies
• Behavior policy generates behavior in environment
• may be randomized to sample all actions
• Estimation policy is policy being learned about
• may be deterministic (greedy)
• Off-policy estimates one policy while following
  another
• Average returns from behavior policy by using
  nonzero probabilities of selecting all actions
  for the estimation policy
• May be slow to find improvement after nongreedy
  action

18
Off-policy MC control
19
Incremental Implementation

• MC can be implemented incrementally
• saves memory
• Compute the weighted average of each return

incremental equivalent
non-incremental
20
Racetrack Exercise

• States grid squares, velocity horizontal and
  vertical
• Rewards -1 on track, -5 off track
• Only the right turns allowed

• Actions 1, -1, 0 to velocity
• 0 lt Velocity lt 5
• Stochastic 50 of the time it moves 1 extra
  square up or right

21
Summary

• MC has several advantages over DP
• Can learn directly from interaction with
  environment
• No need for full models
• No need to learn about ALL states
• Less harm by Markovian violations (later in book)
• MC methods provide an alternate policy evaluation
  process
• One issue to watch for maintaining sufficient
  exploration
• exploring starts, soft policies
• No bootstrapping (as opposed to DP)
