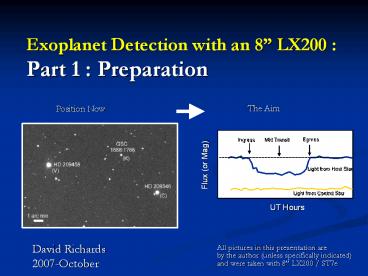

Exoplanet Detection with an 8 LX200 Part 1
Preparation
The Aim
Position Now
Egress
Ingress
Mid Transit
Flux (or Mag)
Light from Host Star
Light from Control Star
UT Hours

• David Richards
• 2007-October

All pictures in this presentation are by the
author (unless specifically indicated) and were
taken with 8 LX200 / ST7e
2
Exoplanet Challenge

• First exoplanet transit detection made in 1999 -
  HD 209458b
• HD 209458 (Osiris, 13 Pegasi ) Charbonneau et
  al 2000, Henry et al 2000 (from Hipparcos Images
  ?)
• Castellano et al (NASA Ames) demonstrated HD
  209458b transit detection with an 8 LX200
  telescope and ST7e CCD camera
• JAAVSO, Vol 33, No 1, 2004
• Same equipment as me !
• Same journal volume as a paper by D.Mais and
  myself on Mira variables !
• Led to a strong ambition to detect an Exoplanet
  for myself
• 14 more transiting exoplanets discovered
  2004-2007
• Its both feasible and now regularly proven that
  amateurs with CCD cameras and just moderately
  sized telescopes can detect transit events
• Ive made my own exoplanet detection attempts in
  2005 and 2006, but without firm success
• Requires ideal sky conditions and the highest
  possible precision (lt0.005 m)
• Im currently optimising my imaging setup and
  (with luck) hope to make a firm transit detection
  during the 2007/8 season.

3
Table of Nearby Transiting Exoplanets (Jul 2007)
Note Most known transiting exoplanet sols are
visible from N. Hemisphere )
5 distant exoplanets (OGLE-TR-10,56,111,113,132)
in Sagittarius and Carina are not listed,
OGLE - Optical Gravitional Lensing Experiment
4
My Own Equipment Setup
Meade 8 LX200 Goto Telescope
ST-7e CCD Camera
Equatorial Wedge
PermanentPier
5
2005 Attempt HD 209458
60s exp (C Filter)
Planet HD 209458b around HD 209458 (Osiris)
Discovered in 1999 (followed up
1999-2004)Parent Sol is a 7.6 magnitude star in
PegasusOrbital period 3.52 days. Transit
duration 3 hours, Transit depth 0.0165 mag
Attempted Transit Observation in V Filters,
2005-08-08
Depth of magnitude dip being looked for
15s exposures (V Filter)
6
2006 Attempt TrES-1
Av 3 x 20s exp (C Filter)
Planet TrES-1 around GSC 26521324 Jupiter sized
planet discovered in 2003-2004 (R.Alonso et
al)Sol 11.8 magnitude star in Lyra (lying at
500 ly distance)Orbital period 3.03 days.
Transit duration 2.5 hours, Transit depth
0.023 mag
Attempted Transit Observation in C Filters,
2006-08-08 / 09
30s exposures (C Filter)
End Transit(predicted)
Mid Transit(predicted)
Depth of magnitude dip being looked for
7
Improving my chances

• Transit Opportunities - Dates/Times /Airmass
• Screening worksheet/charts
• Baseline Images for each candidate
• Central Image Positions, Reference Stars,
  Exposure Times
• Better Flat fields
• Not realistically feasible with current focuser,
  due to gravity droop on CCD camera(option to
  invest in new heavy duty focuser, but avoiding at
  this stage)
• Anti-Dew System
• New power source installed in early 2007 has
  fixed previous problem with dew heater
• Reduction in star drift / keep stars fixed on
  same pixels
• Improved Polar Alignment (aiming for less than 1
  arc min, current misalignment is 3.4 arc min )
• Guiding between frames with new script that is
  robust to passing cloud
• Robust Software / Procedures
• Software thats going to work on that one ideal
  night when conditions are perfect
• Focus / FWHM monitoring
• Script to monitor FWHM / sky brightness in
  realtime
• Better prediction of Clear Weather Good Seeing
• Weather forecasts / Jet Stream monitoring

8
Screening Transit Opportunities
9
Screening Transit Opportunities
10
HD 189733 good candidate
in Vulpecula mag 7.67, transit depth 0.025
magref star mag 8.1
11
Results from guiding between frames
12
Practice Photometry (non exoplanet star)
13
Weather
Total Cloud Cover Forecast for Sun Sept 2nd,
2300 (2 ½ days prior)
Total Cloud Cover on Sun Sept 2nd, 2300 (on
the day forecast)
14
Latest Attempt WASP-1
Transit Depth of magnitude dip being looked for
(0.011 m)
15
Pointing Accuracy during WASP-1 Transit Attempt,
2007-09-14
16
How close ?
17
HD 209458 opportunity, 2007-11-18
18
HD 189733 opportunity, 2007-10-16
19
