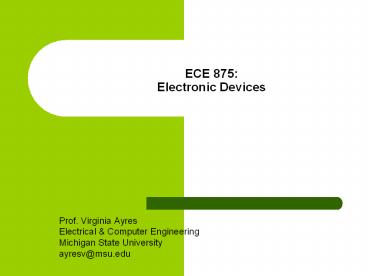

ECE 875: Electronic Devices

1
ECE 875Electronic Devices

• Prof. Virginia Ayres
• Electrical Computer Engineering
• Michigan State University
• ayresv_at_msu.edu

2
Lecture 10, 03 Feb 14
Chp. 01 Concentrations Nondegenerate Degenerate
Nondegenerate Intrinsic Contributed by
impurities Wanted impurities dopants Unwanted
impurities traps
Concentrations n
Effect of temperature
3
Example Pr. 1.12
4
Example Pr. 1.12
Need this
?
Use
?
5
General Info will use figure next slide to do
Pr. 1.12
Centripetal force Coulomb force
Average is defined as the harmonic mean not the
geometric mean. Used when E-field is present
P and B are shallow impurities in Si
6
Tabulated can get EC ED _at_ 300 K from Sze Fig
10 (useful)
For P in Si EC ED 0.046 eV This is the
ionization energy Pr. 1.12 Given ionization
energy doesnt change as a function of T
7
Have EC ED Need EF ED Note (EC ED)
(EC EF) EF ED Given ND 1016 cm-3
nondegenerate in Si Therefore use Sze (21)
Need NC _at_ 77K In App G NC _at_ 300K 2.8 x 1019
cm-3
8
Use the ratio to something you know method
2
9
(No Transcript)
10
Also kT at 77K
Plug and chug method
OR
Ratio to something you know method
11
?
_at_ 77K 3.64 X 1018 cm-3
Thus far Sze (21)
Problem n ? ND 1016 cm-3 at 77K because not
all ND are ionized
12
(No Transcript)
13
(No Transcript)
14
Important part NOT EQUAL
15
Important step COMPARE
16
Lecture 10, 03 Feb 14
Chp. 01 Concentrations Nondegenerate Degenerate
Nondegenerate Intrinsic Contributed by
impurities Wanted impurities dopants Unwanted
impurities traps
Concentrations n
Effect of temperature
17
Summary concentration as a function of
temperature and dopingFor nondegenerate doping
(n-type Si shown in figure)
18
Summary Freeze-out range concentration ?
partially ionized dopants
DONORS Neutral ND Electron occupies a local
energy level ED, h 1, gD 2 Ionized ND A
local energy level ED is empty and available
ACCEPTORS Neutral NA A local energy level EA is
empty and available Ionized NA- Electron
occupies a local energy level EA, h 1, gA 4

F(E) is probability of an electron occupying an
energy level E. If energy level E local level
ED (neutral ND) or local level EA (ionized NA-)
use
19
Summary Intrinsic range concentration ?
partially ionized dopants
n
p
20
Summary Saturation range concentration ? fully
ionized dopants AND some probability of
valence-to-conduction band transitions
Fully ionized dopants single doping n-type p
ni2/n, solve quadratic for n p-type n
ni2/p, solve quadratic for p
21
Summary Intrinsic range concentration ? fully
ionized dopants AND high probability of
valence-to-conduction band transitions
n
pi ni
22
Summary For all ranges Egap f(T) also f(P)
23
Fig. 14 (a) Silicon (b not shown GaAs)
24
Example
Sun-side for a LEO (low-earth orbit) satellite is
200oC 473 K. What doping concentrations cant
be used in Si electronics because all pn
junctions will act like intrinsic Si, causing
device inoperability?
25
473 K
Answer n and p doping concentrations 1013 cm-3
and below cant be used.
26
Lecture 10, 03 Feb 14
Chp. 01 Concentrations Nondegenerate Degenerate
Nondegenerate Intrinsic Contributed by
impurities Wanted impurities dopants Shallow
dopants Deep level dopants Unwanted impurities
traps
Concentrations n
Effect of temperature
27
Donors and acceptors dont have to be
shallow. Many atoms can get into Si reason for
cleanrooms
28
How to read graph
DONORS Neutral ND Electron occupies a local
energy level ED, h 1, gD 2 Ionized ND A
local energy level ED is empty and available
ACCEPTORS Neutral NA A local energy level EA is
empty and available Ionized NA- Electron
occupies a local energy level EA, h 1, gA 4

Above Ei read EC ED Below EI read EA - EV
Generally for single substitutional
impurities Donor Levels/two charge states ED
(neutral 0, positive 1) Acceptor levels/two
charge states EA (neutral 0, negative -1)
29
Can have donor levels below Ei and acceptor
levels above Ei
30
Pr. 1.16 (a) gold dopant/impurity Au
The acceptor level at EA-0.54 has two charge
states neutral 0 to start and -1 if it gets an
e-.
The donor level at ED-0.29 has two charge states
neutral 0 to start and 1 if it loses an e-
At start state of charge of the Au levels in
Si EA-.54 neutral 0 ED-.29 neutral 0
31
Pr. 1.16 (a) Add neutral B to Au dopant/impurity
The acceptor level at EA-0.54 has two charge
states neutral 0 to start and -1 if it gets an
e-.
The donor level at ED-0.29 has two charge states
neutral 0 to start and 1 if it loses an e-
The acceptor level at EA-0.044 has two charge
states neutral 0 to start and -1 if it gets an
e-. It does get e- from the ED-0.29 donor level.
32
Pr. 1.16 (a) After neutral B addition to Si with
Au dopant/impurities
The acceptor level at EA-0.54 is neutral 0 at
start and WHAT at finish
The donor level at ED-0.29 is neutral 0 at start
and WHAT at finish
The acceptor level at EA-0.44 is neutral 0 at
start and WHAT at finish
Neutrality is maintained overall.
33
Pr. 1.16 (b) effect of Au impurities on electron
concentration n and hole concentration p, both
from Si
Consider what the acceptor level at EA-0.54 can
do with n from Si
Consider what he donor level at ED-0.29 can do
with p in Si
Result Si e- and holes that would have
participated in current I are both being tied up
(trapped) instead by the Au impurity levels.
They are NOT contributing to current I while they
are in traps.
34
Effect on currents
1.5.4 Will show recombination and generation
due to deep level dopants has greatest effect on
ordinary current Ordinary current Current I is
in an assumed pn junction device
35
1.5.4 Rate U is related to current I
36
What is U Net transition rate driven by powerful
pn ni2 at thermal equilibrium
Fig 25 (a) matches Fig. 4 (b)
Note Recombining e- must have a momentum value
that matches the crystal momentum of the hole it
is dropping into. Direct bandgap OK all the
way to the valence band
Recombination with emission of photon Has a rate
Re
Generation with creation of e- hole pair Has a
rate Gthermal
37
What is U Net transition rate driven by powerful
pn ni2 at thermal equilibrium
Fig 25 (a) matches Fig. 4 (b)
Recombination decreases both n and p by 1 Now pn
lt ni2 Think what if just recombination kept
going?
38
What is U Net transition rate driven by powerful
pn ni2 at thermal equilibrium
39
What is U Net transition rate driven by powerful
pn ni2 at thermal equilibrium
Fig 25 (a) matches Fig. 4 (b)
Recombination rate Re depends on having -
Concentration of electrons in EC, -
Concentration of holes in EV to take the e- -
Probability of spontaneous recombination Rec
Therefore Re Rec np Rec ni2
40
What is U Net transition rate driven by powerful
pn ni2 at thermal equilibrium
41
What is U Net transition rate driven by powerful
pn ni2 at thermal equilibrium
General
Specific
pn junction
42
Evaluate U within 1 diffusion length of the
junction on the n-side of a pn junction
43
Within 1 diffusion length Lp of the junction on
the n-side of a pn junction
Review For a pn junction with low level
injection Dp on n-side and Dn on p-side
pp0 NA-
nn0 ND
pn0 ni2/nND
Lp
np0 ni2/pNA-
Ln
excess holes Dp
electrons Dn
VM Ayres, ECE875, S14
