Group/Presentation Title

1

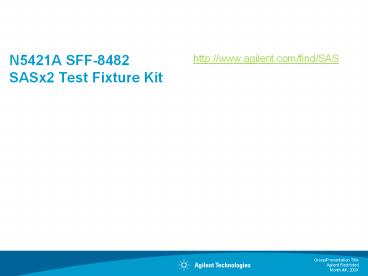

N5421A SFF-8482 SASx2 Test Fixture Kit

• http//www.agilent.com/find/SAS

2
N5421A SFF-8482 SAS x2 Test Fixture Kit
3
N5421A SFF-8482 SAS x2 Test Fixture
KitDescriptions
Board ID Description
A02 SAS x2 Backplane Primary Test Fixture Differential TX and RX Host Primary pairs brought out to (4) SMAs from SFF-8482 SAS connector
B03 SAS x2 Backplane Secondary Test Fixture Differential TX and RX Host Secondary pairs brought out to (4) SMAs from SFF-8482 SAS connector
C04 SAS x2 Drive Primary Test Fixture Differential TX and RX Drive Primary pairs brought out to (4) SMAs from SFF-8482 SAS connector
D05 SAS x2 Drive Secondary Test Fixture Differential TX and RX Host Secondary pairs brought out to (4) SMAsfrom SFF-8482 SAS connector
F07 TX/RX Device Transient Test Loads Differential TX and RX Host Primary pairs brought out to InfiniiMax probe points from (4) SMAs
4
N5421A SFF-8482 SAS x2 Test Fixture Kit Example
Test Connection
C04 SAS x2 Drive Primary Test Fixture
F07 TX/RX Device Transient Test Loads
5
N5421A SFF-8482 SAS x2 Test Fixture Kit Example
Test Connection
C04 SAS x2 Drive Primary Test Fixture
