Impact of Cycle Design on Steam Generator

1

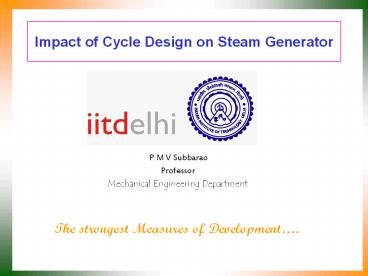

Impact of Cycle Design on Steam Generator

• P M V Subbarao
• Professor
• Mechanical Engineering Department

The strongest Measures of Development.
2
Basic The Theme Steam Generator Design

• Constrains
• Imposed by Cycle Design (pmax, Tmax, etc.)
• Fuel Combustion Related.
• Heat Transfer Related
• Safety and Reliability Related.

3
The Basic Rankine Cycle
4
Gas to Liquid Heat Exchange
Liquid Heating
5
The Power Gods
1760 James Watt
1820 Sadi Carnot
George Brayton W Rankine 1860
6
Law of Power Generation
Coal (Source)
Power Plant --Cycle Design -- Equipment
Design --Equipment Operation
Land, Water Air (Sinks)
7
Progress in Rankine Cycle
Year 1907 1919 1938 1950 1958 1959 1966 1973 1975
MW 5 20 30 60 120 200 500 660 1300
p,MPa 1.3 1.4 4.1 6.2 10.3 16.2 15.9 15.9 24.1
Th oC 260 316 454 482 538 566 566 565 538
Tr oC -- -- -- -- 538 538 566 565 538
FHW -- 2 3 4 6 6 7 8 8
Pc,kPa 13.5 5.1 4.5 3.4 3.7 3.7 4.4 5.4 5.1
h, -- 17 27.6 30.5 35.6 37.5 39.8 39.5 40
8
Role of SG in Rankine Cycle
Perform Using Natural resources of energy .
9
Impact of cycle on Construction of Steam Generator
Economizer
10
Trends in coal-fired generation Performance

• The average efficiency of coal-fired generation
  is projected to increase from 34 in 2006 to 36
  in 2015 and to 38 in 2030.
• In the OECD, efficiency increases from 37 to
  41.
• In non-OECD countries, efficiency improves from
  31 to 37 because new coal-fired power plants
  built to meet rapidly growing electricity demand
  are expected to be far more efficient than
  existing ones.

11
Modern Measure of Performance
12
The Rankine Cycle
13
Pump Isentropic Process
1
2
SSSF Conservation of mass
First Law
No heat transfer, change in kinetic and potential
energies are negligible
14
2 3 SG Isobaric Heating p3 p2
QCV
3
2

• No work transfer, change in kinetic and potential
  energies are negligible

Assuming a single fluid entering and leaving
15
Constant Pressure Heating Process
16
Constant Pressure Heating Process
Vapour
Liquid Vapour
h
Liquid
s
17
Ideal Rankine Cycle
18
Constant Pressure Heating Process
s
