Title: Section 8.3 Molecular Structures


1

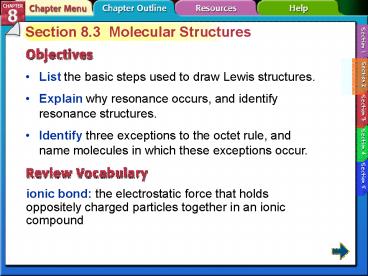

Section 8.3 Molecular Structures
  • List the basic steps used to draw Lewis
    structures.
  • Explain why resonance occurs, and identify
    resonance structures.
  • Identify three exceptions to the octet rule, and
    name molecules in which these exceptions occur.

ionic bond the electrostatic force that holds
oppositely charged particles together in an ionic
compound
2
Section 8.3 Molecular Structures (cont.)
structural formula resonance coordinate
covalent bond
Structural formulas show the relative positions
of atoms within a molecule.
3
Section 8-1
Why do atoms bond?
  • Atoms gain stability when they share electrons
    and form covalent bonds.
  • Lower energy states make an atom more stable.
  • Gaining or losing electrons makes atoms more
    stable by forming ions with noble-gas electron
    configurations. (octet)
  • Sharing valence electrons with other atoms also
    results in noble-gas electron configurations.

4
Section 8-1
Why do atoms bond? (cont.)
  • Atoms in non-ionic compounds share electrons.
  • Water is formed when Hydrogen and Oxygen atoms
    share electrons.
  • The chemical bond that results from sharing
    electrons is a covalent bond.
  • A molecule is formed when two or more atoms bond.

5
  • Shared electrons are considered to be part of the
    outer energy level of all the atoms that share
    it.
  • This type of bonding usually occurs between
    elements near each other on the periodic table.
  • Most of this type of bonding is done with
    nonmentals.

6
  • The chemical bond that results from sharing
    electrons is a covalent bond
  • 3 types of Covalent bonds
  • Single Covalent bond sharing 2 electrons
  • Double Covalent bond Sharing 4 eletrons
  • Triple Covalent Bond Sharing 6 electrons
  • Atoms do not share more than 6 electrons between
    them (quadruple bond does not exist)

7
Section 8-1
Why do atoms bond? (cont.)
  • The most stable arrangement of atoms exists at
    the point of maximum net attraction, where the
    atoms bond covalently and form a molecule.
  • F 1s22s2 2p5
  • Shared are covalently bondedloan pairs are
    unbonded.

8
Structural Formulas
  • In a Lewis structure dots or a line are used to
    symbolize a single covalent bond.
  • A structural formula uses letter symbols and
    bonds to show relative positions of atoms.

9
Structural Formulas
  • Electron Dot Diagrams
  • show valence e- as dots
  • distribute dots like arrows in an orbital
    diagram
  • 4 sides 1 s-orbital, 3 p-orbitals
  • EX oxygen

O
10
Drawing Lewis Diagrams
  • Arrange atoms least electronegative atom
    usually in the middle. (never hydrogen)
  • Calculate the total number of valence e-.
  • Place one bonding pair (line) between the central
    atom and the terminal atoms
  • Place the remaining pairs of electrons around the
    terminal atoms and any remaining pairs go on the
    central atom
  • Check to be sure the central atom has four pairs
    of electrons, if not convert a pair of electrons
    from a terminal atom to make a double or triple
    bond

11
Drawing Lewis Diagrams
  • CF4

1 C 4e- 4e- 4 F 7e- 28e- 32e-
F F C F F
- 8e- 24e-
12
Drawing Lewis Diagrams
  • CO2

1 C 4e- 4e- 2 O 6e- 12e- 16e-
O C O
- 4e- 12e-
13
Polyatomic Ions
  • To find total of valence e-
  • Add 1e- for each negative charge.
  • Subtract 1e- for each positive charge.
  • Place brackets around the ion and label the
    charge.

14
Polyatomic Ions
  • ClO4-

1 Cl 7e- 7e- 4 O 6e- 24e- 31e-
O O Cl O O
1e- 32e-
- 8e- 24e-
15
Polyatomic Ions
  • NH4

1 N 5e- 5e- 4 H 1e- 4e- 9e-
H H N H H
- 1e- 8e-
- 8e- 0e-
16
Resonance Structures
  • Resonance is a condition that occurs when more
    than one valid Lewis structure can be written for
    a molecule or ion.
  • This figure shows three correct ways to draw the
    structure for Nitrate.

17
Resonance Structures (cont.)
  • Two or more correct Lewis structures that
    represent a single ion or molecule are resonance
    structures.
  • The molecule behaves as though it has only one
    structure.
  • The bond lengths are identical to each other and
    intermediate between single and double covalent
    bonds.

18
Resonance Structures
  • SO3

19
Exceptions to the Octet Rule
  • Some molecules do not obey the octet rule.
  • A small group of molecules might have an odd
    number of valence electrons.
  • NO2 has five valence electrons from nitrogen and
    12 from oxygen and cannot form an exact number of
    electron pairs.

20
Section 8-3
Exceptions to the Octet Rule (cont.)
  • A few compounds form stable configurations with
    less than 8 electrons around the atoma suboctet.
  • A coordinate covalent bond forms when one atom
    donates both of the electrons to be shared with
    an atom or ion that needs two electrons.

21
Section 8-3
Exceptions to the Octet Rule (cont.)
  • A third group of compounds has central atoms with
    more than eight valence electrons, called an
    expanded octet.
  • Elements in period 3 or higher have a d-orbital
    and can form more than four covalent bonds.

22
Octet Rule
  • Exceptions
  • Hydrogen ? 2 valence e-
  • Groups 1,2,3 get 2,4,6 valence e-
  • Expanded octet ? more than 8 valence e-, central
    atom only and must be in the third row or lower
  • Radicals ? odd of valence e-

23
Section 8-3
Section 8.3 Assessment
What is it called when one or more correct Lewis
structures can be drawn for a molecule?
A. suboctet B. expanded octet C. expanded
structure D. resonance
  1. A
  2. B
  3. C
  4. D

24
Section 8-3
Section 8.3 Assessment
Where do atoms with expanded octets occur?
A. transition metals B. noble gases
C. elements in period 3 or higher D. elements
in group 3 or higher
  1. A
  2. B
  3. C
  4. D
