Title: Network monitoring: detecting node failures

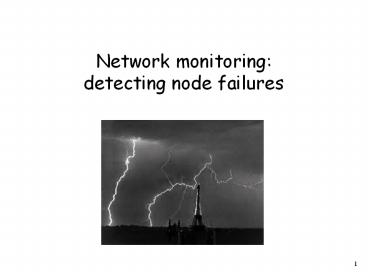

1
Network monitoringdetecting node failures
2
Monitoring failures in (communication) DS
  • A major activity in DS consists of monitoring
    whether all the system components work properly.
  • To our scopes, we will concentrate our attention
    on DS which can be modelled by means of a MPS,
    thus embracing all those real-life applications
    which make use of an underlying communication
    graph G(V,E).
  • Here, we have to monitor nodes and links
    (mal)functioning, through the use of a set of
    sentinel nodes, which will periodically return to
    a network administrator a certain set of
    information about their neighborhood

3
Example locating a burglar
  • This could be your nice apartment ?

Problem suppose that you want to protect it
against intrusions, and that you decide to
install an Intruder Detection System (IDS)
guarding the apartment, based on video
surveillance.
and so you decide to put 2 cameras in rooms b
and c (it is easy to see that in this way all the
rooms are guarded)
4
Example locating a burglar (2)
  • But now you leave the apartment and then a
    burglar enters in ? fortunately, your IDS
    detects it and remotely inform you about that

Question can you call the police and tell them
precisely in which room the burglar is located?
This depends on the information returned by the
IDS
5
Example locating a burglar (3)
  • Luckily enough, you installed an IDS consisting
    of advanced detectors, each of which can return
    the name of the room from which the intrusion
    comes

In this case, detectors in rooms b and c are
effective (they will both tell to you "room
f")
6
Example locating a burglar (4)
  • On the other hand, assume that you had installed
    an IDS guarding the apartment consisting of basic
    detectors, which are only able to send an alarm
    bit after they detect an intrusion in a guarded
    room so, both b and c reports an alarm bit

but now the question is where is the burglar?
Either in room b, c, or f??? The IDS does not
work properly here, since we do not know in which
room the burglar is!
7
Example locating a burglar (5)
  • However, if you had installed 4 old detectors
    guarding the apartment as in the picture, the
    situation gets back to be safe

Now detectors b and c send an alarm bit, but a
and d do not, and so you can infer the burglar is
in room f can you see why?
Because each room has a distinct set of guarding
detectors!
8
Transposition to network monitoring
  • While in the previous example, the IDS monitors
    the apartment for threats from the outside, a
    network monitoring system (NMS) monitors the
    network for problems caused by crashed servers
    (nodes), or network connection disruptions
    (edges).
  • A NMS has to monitor continuously the network,
    and has to report immediately a malfunctioning
    in a MPS, this means that we need synchronicity
    among processors.
  • In a NMS, the status of nodes and edges is
    monitored through the use of sentinel nodes,
    which periodically exchange messages with
    adjacent nodes (for instance, a reciprocal status
    request every k rounds), and then report some
    kind of information to the network administrator.
  • Which type of message is exchanged among nodes in
    the network? And which type of message a sentinel
    node is able to report to the network
    administrator? This depends on the underlying
    network infrastructure, along with the monitoring
    software. For instance, in a wireless network, a
    sentinel node could not be able to precisely
    establish which of its neighbors is not replying
    to a ping, and so it can only return an alarm bit
    to the administrator!

9
Formalizing the node-monitoring problem
  • Input A graph G (V,E) modeling a MPS, and a
    query model Q, namely a formal description of the
    entire process through which a sentinel node x
    reports its piece of information to the network
    administrator (i.e., (1) which nodes are queried
    by x, and (2) through which type of message, and
    finally (3) which type of information x can
    return)
  • Goal Compute a minimum-size subset of sentinel
    node S?V allowing to monitor G with respect to
    the simultaneous failure of at most k nodes in G,
    i.e., such that the composition of the
    information reported by the nodes in S to the
    network administrator is sufficient to identify
    the precise set of crashed nodes, for any such
    set of size at most k.

10
Again on the query model
  • In the burglar example, in the first case a
    sentinel node returns the name of an adjacent
    affected node, while in the second case it just
    returns the information that an adjacent node has
    been affected!
  • This is exactly what the definition of a query
    model is about the set of information that a
    sentinel node x is able to return.
  • Observe that the largest is the set of returned
    information, the strongest is the query model,
    and the sparsest is the set of sentinels that we
    need to monitor the graph!

11
Network monitoring and dominance in graphs
  • The simplest possible query models are those in
    which each sentinel node communicates with its
    neighbors only, and thus a sentinel node can
    report a set of information about its
    neighborhood ? the monitoring problem in this
    case is naturally related with the concept of
    dominance in graphs, i.e., with the activity of
    selecting a set of nodes (dominators) in a graph
    in order to have all the nodes of the graph
    within distance at most 1 from at least a
    dominator
  • These query models are then further refined on
    the basis of the type of messages that sentinel
    nodes exchange with their neighbors and with the
    network administrator

12
Dominating Set
Given a graph G(V,E), a dominating set of G is a
set of nodes D such that every node of G is at
distance at most 1 from D
y
z
x
D4
x dominates x,y,z
13
Minimum Dominating Set (MDS)
This is a dominating set of minimum size
c
a
e
b
d
g
y
z
x
f
D3
14
Network monitoring and MDS
  • In a query model in which a sentinel node
  • Sends a ping to each adjacent node and waits for
    a reply
  • Sends to the network administrator the id of the
    set of adjacent nodes which did not reply
  • a MDS D of a graph G(V,E) defines a
    minimum-size set of processors which can monitor
    the correct functioning of all the nodes in V\
    D, since every node in G is pinged by at least
    one node in D (notice that if a node x in D
    fails, the network administrator is not able to
    understand whether besides x- some of the nodes
    dominated by x have failed or not in this sense,
    if we are guaranteed that at most a single node
    in G can fail, then a MDS is enough to monitor
    the entire graph!)

15
A special type of Dominating Set the
Identifying Code (IC)
This is a dominating set D in which every node v
is dominated by a distinct set of nodes in D
(this is called the identifying set of v)
A Minimum IC (MIC) is an IC of smallest
cardinality.
16
Network monitoring and MIC
  • In a query model in which a sentinel node
  • Sends a ping to each adjacent node and waits for
    a reply
  • Sends to the network administrator an alarm bit
    (0 if all the adjacent replied, 1 otherwise)
  • a MIC C of a graph G(V,E) defines a
    minimum-size set of processors which can monitor
    the failure of at most one node in V\C, since
    every node in G is pinged by a distinct set of
    nodes in C (notice that if a node x in C fails,
    the network administrator is not able to
    understand whether besides x- some of the nodes
    dominated by x have failed or not so again, if
    we are guaranteed that at most a single node in G
    can fail, then a MIC is enough to monitor the
    entire graph!)

17
Our problems
  • We will study the monitoring problem for single
    node failures (i.e., node crashes) w.r.t. the two
    following two query models
  • Sentinels are able to return the id of the
    adjacent failed node ? we will search a MDS of
    the network (MDS problem)
  • Sentinels are only able to return an alarm bit
    about the neighborhood (i.e., a warning that an
    adjacent node has failed) ? we will search a MIC
    of the network (MIC problem)
  • Main questions Are MDS and MIC problems easy or
    NP-hard? If so, can we provide efficient
    (distributed) approximation algorithms to solve
    it?
  • We will show that MDS and MIC problems are
    NP-hard, and that they are both not approximable
    within o(ln n) we will also provide an T(ln
    n)-approximation distributed algorithm for MDS
    and MIC (only a skecth)

18
Reminder being NP-hard
  • A problem P is NP-hard iff one can Turing-reduce
    in polynomial time any NP-complete problem P to
    it
  • Turing-reducing in polynomial time P to P means
    that there exists a polynomial-time algorithm
    that solves P (i.e., it recognizes the
    YES-instances of P) by calling an oracle machine
    as a subroutine for solving P, and such
    subroutine call takes only one step to compute
  • Of course, if we could solve an NP-hard problem
    in polynomial time, then PNP
  • MDS and MIC are optimization problems, since we
    search for solutions of minimum size
  • For optimization problems, we can use a special
    (strongest) type of reduction, namely the
    L-reduction, which linearly preserves the degree
    of approximability of a problem such a type of
    reduction is also useful to prove NP-hardness, as
    we will see soon

19
Reminder optimization problems and
approximability
  • An optimization problem A is a quadruple (I, f,
    m, g), where
  • I is a set of instances
  • given an instance x ? I, f(x) is the set of
    feasible solutions
  • given a feasible solution y of x, c(y) denotes
    the measure of y, which is usually a positive
    real
  • g is the goal function, and is either min or max.
  • The goal is then to find for some instance x an
    optimal solution, that is, a feasible solution y
    with
  • c(y) g c(y') y' ? f(x).
  • Given a minimization (resp., maximization)
    problem A, let OPTA(x) denote the cost of an
    optimal solution to A w.r.t. instance x. Then, we
    say that A is ?-approximable, ?1, if there
    exists a polynomial-time algorithm for A which
    for any instance x ? I returns a feasible
    solution whose measure is at most (resp., at
    least) ?OPTA(x).

20
L-reduction definition
  • Let A and B be optimization problems and cA and
    cB their respective cost functions. A pair of
    functions f and g is an L-reduction from A to B
    (we write ALB) if all of the following
    conditions are met
  • functions f and g are computable in polynomial
    time
  • if x is an instance of problem A, then f(x) is an
    instance of problem B (and so f is used to
    transform instances)
  • if y is a solution to f(x), then g(y) is a
    solution to x (and so g is used to transform
    solutions)
  • there exists a positive constant a such that
  • OPTB(f(x)) a OPTA(x)
  • (informally, the cost of an optimal solution of
    the transformed instance is not far way from the
    cost of an optimal solution of the original
    instance)
  • there exists a positive constant ß such that for
    every solution y to f(x)
  • OPTA(x) - cA(g(y)) ßOPTB(f(x)) - cB(y)
  • (informally, the distance from the cost of an
    optimal solution of the transformed solution, is
    not far way from the distance of the cost of the
    solution found for the transformed instance from
    its optimal).

21
L-reduction consequences
  • If A is L-reducible to B and B admits a
    (1d)-approximation algorithm, then A admits a
    (1daß)-approximation algorithm, where a and ß
    are the constants associated with the reduction.
    Indeed, by dividing both sides of the last
    inequality by OPTA(x)
  • 1 - cA(g(y))/OPTA(x) ßOPTB(f(x))/OPTA(x) -
    (1d) OPTB(f(x))/OPTA(x)
  • and since OPTB(f(x)) a OPTA(x)
  • 1 - cA(g(y))/OPTA(x) a ß1 - (1d) ?
    cA(g(y))/OPTA(x) 1daß.
  • If A is L-reducible to B and A is NP-hard, then B
    is also NP-hard (this comes from the first three
    items of the definition, since any Turing
    reduction from an NP-complete problem to A can be
    easily extended in polynomial time to a reduction
    to B).
  • If A is L-reducible to B and A is not
    approximable within a factor of ?, then B is not
    approximable within a factor of o(?) (this comes
    from the fourth item, since otherwise one could
    use the approximate solution of B to compute in
    polynomial time a o(?)-approximate solution to
    A).
  • If A is L-reducible to B and B is L-reducible to
    A, then A and B are asymptotically equivalent in
    terms of (in)approximability.

22
The Set Cover problem
  • We will show that the Set Cover Problem and the
    Minimum Dominating Set Problem are asymptotically
    equivalent in terms of (in)approximability (and
    so we show an L-reduction in both directions)
  • First of all, we recall the definition of the Set
    Cover (SC) problem. An instance of SC is a pair
    (Uo1,,om, SS1,,Sn), where U is a universe
    of objects, and S is a collection of subsets of
    U. The objective is to find a minimum-size
    collection of subsets in S whose union is U.
  • SC is well-known to be NP-hard, and to be not
    approximable within (1-e) ln n, for any e gt 0,
    unless NP ? DTIME(nlog log n) (i.e., unless NP
    has deterministic algorithms operating in
    slightly super-polynomial time this is just a
    bit more believable to happen than PNP).
  • On the positive side, the greedy heuristic (i.e.,
    at each step, and until exhaustion, choose the
    so-far unselected set in S that covers the
    largest number of uncovered elements in U)
    provides a T(ln n) approximation ratio.

23
L-reduction from MDS to SC
  • Given a graph G  (V, E) with V  1, 2, ..., n,
    construct an SC instance (U, S) as follows the
    universe U is V, and the family of subsets is
    S  S1, S2, ..., Sn such that Sv consists of
    the vertex v and all vertices adjacent to v in G
    (this is the function f, and notice that the two
    instances have the same size, i.e., n).
  • Now, it is easy to see that if C  Sv  v ? D
    is a feasible solution of SC, then D is a
    dominating set for G, with D  C (this is the
    function g, and notice that the two solutions
    have the same size).
  • Now notice that if D is a dominating set for G,
    then C  Sv  v ? D is a feasible solution of
    SC, with C  D. Hence, an optimal solution of
    MDS for G equals the size of a Minimum Set Cover
    (MSC) for (U, S).
  • From the two previous points, we have OPTB(f(x))
    OPTA(x), cA(g(y))cB(y), and so aß1.
  • ? Therefore, MDS LSC, and a ?-approximation
    algorithm for SC provides exactly a
    ?-approximation algorithm for MDS.

24
Example of the L-reduction from MDS to SC
  • For example, given the graph G (V,E) shown
    below, we construct a set cover instance with the
    universe U  1, 2, ..., 6 and the subsets
    S1  1, 2, 5, S2  1, 2, 3, 5,
    S3  2, 3, 4, 6, S4  3, 4,
    S5  1, 2, 5, 6, and S6  3, 5, 6. In this
    example, D  3, 5 is a dominating set for G,
    and this corresponds to the set cover
    C  S3, S5 of the universe. For example, the
    vertex 4 ? V is dominated by the vertex 3 ? D,
    and the element 4 ? U is contained in the set S3
    ? C.

25
L-reduction from SC to MDS
  • Let (U, S) be an instance of SC with the universe
    Uo1,,om, and the family of subsets
    SS1,,Sn, and let I1,,n w.l.o.g., we
    assume that U and the index set I are disjoint.
    Construct a graph G  (V, E) as follows the set
    of vertices is V  I ? U, there is an edge
    i, j ? E between each pair i, j ? I, and there
    is also an edge i, o for each i ? I and o ? Si.
    That is, G is a split graph I is a clique and U
    is an independent set. This is the function f,
    and notice that the two instances have not the
    same size (i.e., n vs nm).
  • Now let D be a dominating set for G. Then it is
    possible to construct another dominating set X
    such that X  D and X ? I simply replace
    each o ? D n U by a neighbour i ? I of o. Then
    C  Si  i ? X is a feasible solution of SC,
    with C  X  D. This is the function g, but
    notice that the two solutions have not the same
    size.

26
L-reduction from SC to MDS (2)
  • Conversely, if C  Si  i ? D is a feasible
    solution of SC for some subset D ? I, then D is a
    dominating set for G, with D  C First, for
    each o ? U there is an i ? D such that o ? Si,
    and by construction, o and i are adjacent in G
    hence o is dominated by i. Second, since D must
    be nonempty, each i ? I is adjacent to a vertex
    in D.
  • From the two previous points, and from the fact
    that U is an independent set in G, it is easy to
    see that
  • OPTB(f(x)) OPTA(x), and so a1.
  • Moreover, cA(g(y)) cB(y), and since these are
    minimization problems, we have that
  • OPTA(x) - cA(g(y)) OPTB(f(x)) - cB(y)
  • and so ß1.
  • ? Then, SC LMDS, and a o(?)-inapproximability of
    SC provides a o(?)-inapproximability for MDS.

27
Example of the L-reduction from SC to MDS
  • For example, let be given the following instance
    of SC U  a, b, c, d, e, S1  a, b, c,
    S2  a, b, S3  b, c, d, and S4  c, d, e,
    and so I  1, 2, 3, 4. In this example,
    C  S1, S4 is a set cover this corresponds to
    the dominating set D  1, 4. Conversely, given
    any other dominating set for the graph G, say
    D  a, 3, 4, we can construct a dominating set
    X  1, 3, 4 which is not larger than D and
    which is a subset of I. The dominating set X now
    corresponds to the set cover C  S1, S3, S4.

I
U
28
Consequences on the approximability of MDS
  • From the 2-direction L-reductions, it follows
    that MDS is as hard to approximate as SC.
  • More precisely, MDS is NP-hard and cannot be
    approximated within (1-e) ln n, for any e gt 0,
    unless NP ? DTIME(nlog log n).
  • On the positive side, the greedy heuristic (i.e.,
    at each step, and until exhaustion, choose the
    so-far unselected set in S that covers the
    largest number of uncovered elements in U)
    provides a T(ln n) approximation ratio.

29
Special cases
  • If the graph has maximum degree ?, then the
    greedy approximation algorithm finds an
    O(log ?)-approximation of a MDS (we will see soon
    the proof).
  • For special (but still prominent, from an
    application point of view) cases, such as unit
    disk graphs (UDG) and planar graphs (PG), the
    problem admits a polynomial-time approximation
    scheme (PTAS), where
  • A PTAS is an algorithm which takes an instance of
    a minimization (resp., maximization) problem, and
    a parameter e gt 0, and in polynomial time (for
    fixed e), produces a solution that is within a
    factor 1 e (resp., 1 e) of being optimal.
  • A UDG is the intersection graph of a set of unit
    circles in the Euclidean plane they are often
    used to model wireless networks.
  • A PG is a graph that can be drawn in such a way
    that no edges cross each other they are often
    used to model transportation networks, but also
    communication networks.

30
A UDG
31
Some PGs
32
Sequential MDS Greedy Algorithm
  • Greedy Algorithm (GA) For any node v of the
    given graph G, define its span to be the number
    of non-dominated nodes in v U N(v). Then, start
    with empty dominating set D, and at each step add
    to D node v with maximum span, until all nodes
    are dominated.
  • Theorem The GA is H(?1)-approximating, where ?
    is the degree of G, and H(n) 11/21/31/n ?
    ln n, i.e., the GA is (1ln ?) -approximating.

33
Sequential MDS Greedy Algorithm (2)
  • Proof We prove the theorem by using amortized
    analysis. We call black the nodes in D, grey the
    nodes which are dominated (neighbors of nodes in
    D), and white all the non-dominated nodes. Each
    time we choose a new node of the dominating set
    (each greedy step), we have a cost of 1, (since
    one node is added to the solution), but instead
    of assigning the whole cost to the node we have
    chosen, we distribute the cost equally among all
    newly dominated nodes.
  • Now, assume that we know a MDS D. By definition,
    to each node which is not in D, we can assign a
    neighbor from D. By assigning each node to
    exactly one node of D, the graph is decomposed
    into stars, each having a dominator (node in D)
    as center, and non-dominators as leaves. Clearly,
    the cost of a MDS is 1 for each such star.

34
Sequential MDS Greedy Algorithm (3)
  • Now, we now look at a single star with center v
    in D. Assume that in the current step of the GA,
    v is not black, and let w(v) be the number of
    white nodes in the star of v. If a set of nodes
    in the star of v become grey in the current step
    of the GA, they get charged some cost. By the
    greedy condition of the algorithm, this weight
    can be at most 1/w(v), since otherwise the
    algorithm could rather have chosen v for D,
    because v would cover at least w(v) nodes. Notice
    that after becoming grey, nodes do not get
    charged any more.
  • In the worst case (i.e., to maximize the cost
    charged to the star of v), no two nodes in the
    star of v becomes grey at the same step of the
    GA. In this case, the first node gets charged at
    most 1/(d(v)1), the second node gets charged at
    most 1/d(v), and so on, where d(v) is the degree
    of v in G. Thus, the total amortized cost of a
    star is at most
  • 1/(d(v)1)1/d(v) 1/21 H(d(v)1) H(?1)
    1 ln ?.

35
Distributing (synchronously) the GA
  • Synchronous, non-anonymous, uniform MPS
  • Proceed in phases, initially no node is in D
  • Each phase has 3 steps
  • each node calculates its current span, by testing
    adjacent nodes (2 rounds)
  • each node sends (span, ID) to all nodes within
    distance 2 (2 rounds)
  • each node joins the dominating set D iff its
    (span, ID) is lexicographically higher than all
    others within distance 2 (1 round to notify
    neighbors)

36
Distributed Greedy Algorithm
  • It can be easily proven that the distributed
    algorithm has the same approximation ratio as the
    greedy algorithm.
  • However, the algorithm can be quite slow look at
    caterpillar graphs (paths of decreasing degrees)
  • Nodes along the "backbone" add themselves to D
    sequentially from left to right ? ?(?n) phases
    (and rounds) are needed!
  • Via randomization, the greedy algorithm can be
    modified so as to terminate w.h.p. in O(log ? log
    n) rounds, with an expected O(log
    ?)-approximation ratio.

37
(In)approximability of MIC
  • Concerning the MIC problem, the situation is very
    similar to MDS.
  • More precisely, MIC is NP-hard and cannot be
    approximated within (1-e) ln n, for any e gt 0,
    unless NP ? DTIME(nlog log n).
  • On the positive side, there exists a sequential
    (1ln n)-approximation algorithm for MIC.
  • Moreover, there exists an asynchronous
    distributed algorithm for MIC running in O(IC)
    iterations (where IC is the returned solution,
    and an iteration is essentially an exploration of
    the 3-neighborood of a node), and with IC(1ln
    n) MIC.
Write a Comment
User Comments (0)
About PowerShow.com
