Introduction to Abstract Interpretation

1

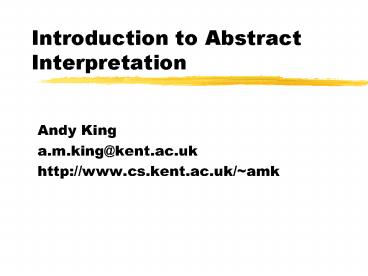

Introduction to Abstract Interpretation

• Andy King
• a.m.king_at_kent.ac.uk
• http//www.cs.kent.ac.uk/amk

2
Pointers to the literature

• SAS, POPL, ESOP, ICLP, ICFP,
• Useful review articles and books
• Patrick and Radhia Cousot, Comparing the Galois
  connection and Widening/Narrowing approaches to
  Abstract Interpretation, PLILP, LNCS 631,
  269-295, 1992. Available from LIX library.
• Patrick and Radhia Cousot, Abstract
  interpretation and Application to Logic Programs,
  JLP, 13(2-3)103-179, 1992
• Flemming Neilson, Hanne Riis Neilson and Chris
  Hankin, Principles of Program Analysis, Springer,
  1999.
• Patrick has a database of abstract interpretation
  researchers and regularly writes tutorials, see,
  CC02.

3
Applications of abstract interpretation

• Verification can a concurrent program deadlock?
  Is termination assured?
• Parallelisation are two or more tasks
  independent? What is the worst/best-case running
  time of function?
• Transformation can a definition be unfolded?
  Will unfolding terminate?
• Implementation can an operation be specialised
  with knowledge of its (global) calling context?
• Applications and players are incredibly diverse

4
Casting out nines algorithm

• Which of the following multiplications are
  correct
• 2173 ? 38 81574 or
• 2173 ? 38 82574
• Casting out nines is a checking technique that is
  really a form of abstract interpretation
• Sum the digits in the multiplicand n1, multiplier
  n2 and the product n to obtain s1, s2 and s.
• Divide s1, s2 and s by 9 to compute the
  remainder, that is, r1 s1 mod 9, r2 s2 mod 9
  and r s mod 9.
• Calculate r (r1 ? r2) mod 9
• If r ? r then multiplication is incorrect
• The algorithm returns incorrect or dont know

5
Running the numbers for 2173 ? 38 81574

• Compute r1 (2173) mod 9
• Compute r2 (38) mod 9
• Calculate r (81574) mod 9
• Calculate r (r1 ? r2) mod 9
• Check (r ? r)
• Deduce that 2173 ? 38 81574 is

6
Abstract interpretation is a theory of
relationships

• The computational domain for multiplication
  (concrete domain)
• N the set of non-negative integers
• The computational domain of remainders used in
  the checking algorithm (abstract domain)
• R 0, 1, , 8
• Key question is what is the relationship between
  an element n?N which is used in the real
  algorithm and its analog r?R in the check

7
What is the relationship?

• When multiplicand is n1 456, say, then the
  check uses r1 (456) mod 9 4
• Observe that
• 456 mod 9
• (4100 56) mod 9
• (490 410 56) mod 9
• (410 56) mod 9
• ((4 5)10 6) mod 9
• ((4 5)9 (4 5) 6) mod 9
• (4 5 6) mod 9
• More generally, induction can show r1 n1 mod 9
  and r2 n2 mod 9

8
Correctness is the preservation of relationships

• The check simulates the concrete multiplication
  and, in effect, is an abstract multiplication
• Concrete multiplication is n n1 ? n2
• Abstract multiplication is r (r1 ? r2) mod 9
• Where r1 describes n1 and r2 describes n2
• For brevity, write r ? n iff r n mod 9
• Then abstract multiplication preserves ? iff
  whenever r1 ? n1 and r2 ? n2 it follows that r ?
  n

9
Correctness argument

• Suppose r1 ? n1 and r2 ? n2
• If
• n n1 ? n2 then
• n mod 9 (n1 ? n2) mod 9 hence
• n mod 9 ((n1 mod 9) ? (n2 mod 9)) mod 9 whence
• n mod 9 (r1 ? r2) mod 9 r therefore
• r ? n
• Consequently if ?(r ? n) then n ? n1 ? n2

10
Summary

• Formalise the relationship between the data
• Check that the relationship is preserved by the
  abstract analogues of the concrete operations
• The relational framework Acta Informatica,
  30(2)103-129,1993 not only emphases the theory
  of relations but is very general

11
Numeric approximation and widening

• Abstract interpretation does not require an
  abstract domain to be finite

12
Interval approximation

• Consider the following Pascal-like program
• SYNTOX PLDI90 inferred the invariants scoped
  within
• Invariants occur between consecutive lines in the
  program
• i?0,15 asserts 0?i?15 whereas i?0,0 means i0

begin i 0 1 i?0,0 while (i
lt 16) do 2 i?0,15
i i 1 3 i?1,16 end
4 i?16,16
13
Compilation versus (classic) interpretation

• Abstract compilation compile the concrete
  program into an abstract program (equation
  system) and execute the abstract program
• good separation of concerns that aids debugging
• the particulars of the domain can be exploited to
  reorder operations, specialise operations, etc
• Abstract interpretation run the concrete
  program but on-the-fly interpret its concrete
  operations as abstract operations
• ideal for a generic framework (toolkit) which is
  parameterised by abstract domain plugins

14
Abstract domain that is used in interval analysis

• Domain of intervals includes
• l,u where l ? u and l,u ? Z for bounded sets ie
  0, 5?0,1,4 since 0,1,4 ? 0, 5
• ? to represent the empty set of numbers, that is,
  ? ? ?
• l,? for sets which are bounded below such as
  l,l2,l4,
• -?,u to represent sets which are bounded above
  such as ..,l-5,l-3,l

15
Weakening intervals
if then 1 i?0,2 else 2
i?3,5 endif 3 i?0,5

• Join (path merge) is defined
• Put d1?d2 d1 if d2 ?
• d2 else if d1 ?
• min(l1,l2), max(u1,u2)
  otherwise
• whenever d1 l1,u1 and d2 l2,u2

16
Strengthening intervals

• Meet is defined
• Put d1?d2 ? if (d1 ?) ? (d2 ?)
• max(l1,l2), min(u1,u2) otherwise
• whenever d1 l1,u1 and d2 l2,u2

3 i?0,5 if (2 lt i) then 4 i?3,5
else 5 i?0,2
17
Meet and join are the basic primitives for
compilation

• I1 0,0 since program point (1) immediately
  follows the i 0
• I2 (I1? I3) ? -?, 15 since
• control from program points (1) and (3) flow
  into (2)
• point (2) is reached only if i lt 16 holds
• I3 n1 n ? I2 since (3) is only reachable
  from (2) via the increment
• I4 (I1? I3) ? 16, ? since
• control from (1) and (3) flow into (4)
• point (4) is reached only if ?(i lt 16) holds

18
Interval iteration
I1 ? 0,0 0,0 0,0 0,0 0,0 0,0 0,0
I2 ? ? 0,0 0,0 0,1 0,1 0,2 0,2
I3 ? ? ? 1,1 1,1 1,2 1,2 1,3
I4 ? ? ? ? ? ? ? ?
I1 0,0 0,0 0,0 0,0
I2 0,15 0,15 0,15 0,15
I3 1,15 1,16 1,16 1,16
I4 ? ? 16,16 16,16
19
Jacobi versus Gauss-Seidel iteration

• With Jacobi, the new vector ?I1,I2,I3,I4? of
  intervals is calculated from the old
  ?I1,I2,I3,I4?
• With Gauss-Seidel iteration
• I1 is calculated from ?I1,I2,I3,I4?
• I2 is calculated from ?I1,I2,I3,I4?
• I3 is calculated from ?I1,I2,I3,I4?
• I4 is calculated from ?I1,I2,I3,I4?

I1 ? 0,0 0,0 0,0 0,0 0,0 0,0
I2 ? 0,0 0,1 0,2 0,14 0,15 0,15
I3 ? 1,1 1,2 1,3 1,15 1,16 1,16
I4 ? ? ? ? ? 16,16 16,16
20
Gauss-Seidel versus chaotic iteration

• Observe that I4 might change if either I1 or I3
  change, hence evaluate I4 after I1 and I3
  stabilise
• Suggests that wait until stability is achieved at
  one level before starting on the next

I1
I2
I1
I4
I3
I4
I2, I3
21
Gauss-Seidel versus chaotic iteration

• Chaotic iteration can postpone evaluating Ii for
  bounded number of iterations
• I1 is calculated from ?I1,-,-,-?
• I2 and I3 are calculated Gauss-Seidel style
  from ?I1,I2,I3,-?
• I4 is calculated from ?I1,I2,I3,I4?
• Fast and (incremental) fixpoint solvers TOPLAS
  22(2)187-223,2000 apply chaotic iteration

I1 ? 0,0 0,0 0,0 0,0 0,0 0,0
I2 ? - 0,0 0,1 0,15 0,15 0,15
I3 ? - 1,1 1,2 1,16 1,16 1,16
I4 ? - - - - - 16,16
22
Suppose i was decremented rather than incremented
begin i 0 1 i?0,0 while (i
lt 16) do 2 i?-?,0
i i -1 3 i?-?,-1 end
4 i??

• I1 0,0
• I2 (I1? I3) ? -?, 15
• I3 n-1 n ? I2
• I4 (I1? I3) ? 16, ?

I1 ? 0,0 0,0 0,0 0,0 0,0 0,0
I2 ? - - 0,0 -1,0 -2,0
I3 ? - - -1,-1 -2,-1 -3,-1
I4 ? - - - - - -
23
Ascending chain condition

• A domain D is ACC iff it does not contain an
  infinite strictly increasing chain d1ltd2ltd3lt
  where dltd iff d?d and d?d (see below)
• The interval domain D is ordered by
• ? ? d forall d?D and
• l1,u1 ? l2,u2 iff l2?l1?u1?u2
• and is not ACC since 0,0lt-1,0lt-2,0lt

T
-4 3 2 1 0 1 2 3 4
?
24
Some very expressive relational domains are ACC

• The sub-expression elimination relies on
  detecting duplicated expression evaluation
• Karr Acta Informatica, 6, 133-151 noticed that
  detecting an invariance such as
• y (x/2) 6 was key to this optimisation

begin x (2 (z ?w)) - 2 y (z
7) ?w end
25
The affine domain

• The domain of affine equations over n variables
  is
• D ?A,B?A is m?n dimensional matrix and
• B is m dimensional column vector
• D is ordered by
• ?A1,B1???A2,B2? iff (if A1xB1 then A2xB2)

26
An affine abstraction

• Consider ?A,B? where
• A B
• Consider x ?x1,x2,x3?T where AxB
• Then x1 1
• Then x2 2x3 0

1 0 0
0 1 -2
1
0
begin x1 1 x2 2x3 end
27
Pre-orders versus posets

• A pre-order ?D, ?? is a set D ordered by a binary
  relation ? such that
• If d?d for all d?D
• If d1?d2 and d2?d3 then d1?d3
• A poset is pre-order ?D, ?? such that
• If d1?d2 and d2?d1 then d1d2

28
The affine domain is a pre-order (so it is not
ACC)

• Observe ?A1,B1???A2,B2? but ?A2,B2???A1,B1?
• A1 B1 A2 B2
• To build a poset from a pre-order
• define d?d iff d?d and d?d
• define d? d?Dd?d and D? d?d?D
• define d? ? d? iff d?d
• The poset ?D?, ?? is ACC since chain length is
  bounded by the number of variables n

1 0 0
0 1 0
0 0 1
1
0
0
2 0 0
0 1 0
0 0 1
2
0
0
29
Inducing termination for non-ACC (and huge ACC)
domains

• Enforce convergence for intervals with a widening
  operator ?D?D ? D
• ??d d
• d?? d
• l1,u1 ? l2,u2 if l2ltl1 then -? else l1,
• if u1ltu2 then ? else u1
• Examples
• 1,2?1,2 1,2
• 1,2?1,3 1,? but 1,3?1,2 1,3
• Safe since li,ui?(l1,u1?l2,u2) for i?1,2

30
Chaotic iteration with widening

• To terminate it is necessary to traverse each
  loop a finite number of times
• It is sufficient to pass through I2 or I3 a
  finite number of times Bourdoncle, 1990
• Thus widen at I3 since it is simpler

I1
I2
I3
I4
31
Termination for the decrement

• I1 0,0
• I2 (I1? I3) ? -?, 15
• I3 I3?n-1 n ? I2 note the fix
• I4 (I1? I3) ? 16, ?
• When I2 -1,0 and I3 -1,-1, then
• I3?n-1 n ? I2 -1,-1 ? -2,-1 -?,-1

I1 ? 0,0 0,0 0,0 0,0 0,0 0,0 0,0
I2 ? - - 0,0 -1,0 -?,0 -?,0 -?,0
I3 ? - - -1,-1 -?,-1 -?,-1 -?,-1 -?,-1
I4 ? - - - - - - ?
32
(Malicious) research challenge

• Read a survey paper to find an abstract domain
  that is ACC but has a maximal chain length of
  O(2n)
• Construct a program with O(n) symbols that
  iterates through all O(2n) abstractions
• Publish the program in IPL

33
Are numeric domains convex?

• A set S?Rn is convex iff for all x,y?S it follows
  that ?x (1-?)y 0???1 ? S
• The 2 leftmost sets in R2 are convex but the 2
  rightmost sets are not
• Intervals and affine systems are convex

34
Arithmetic congruences are not convex

• Elements of the arithmetic congruence (AC) domain
  take the form x 2y 1 (mod 3) which describes
  integral values of x and y
• More exactly, the AC domain consists of
  conjunctions of equations of the form
• c1x1cmxm (c mod n) where ci,c?Z and n?N
• Incredibly AC is ACC IJCM, 30, 165--190, 1989

35
Research challenge

• Søndergaard FSTTCS,95 introduced the concept of
  an immediate fixpoint
• Consider the following (groundness) dependency
  equations over the domain of Boolean functions
  ?Bool, ?, ??
• f1 x ? (y ? z)
• f2 ?t(?x(?z(u ? (t?x) ? v ? (t?z) ? f4)))
• f3 ?u (?v(x ? u ? z ? v ? f2))
• f4 f1? f3
• Where ?x(f) fx ?true?fx ?false thus ?x(x?y)
  true and ?x(x?y) y

36
The alternative tactic

• The standard tactic is to apply iteration
• Søndergaard found that the system can be solved
  symbolically (like a quadratic)
• This would be very useful for infinite domains
  for improved precision and predictability

f1 false x ? (y?z) x ? (y?z) x ? (y?z) x ? (y?z)
f2 false false false v ? (y?u) (u?y) ? v
f3 false false false false (x?y) ? z
f4 false false x ? (y?z) x ? (y?z) (x?y) ? z
37
Combining analyses

• Verifiers and optimisers are often multi-pass,
  built from several separate analyses
• Should the analyses be performed in parallel or
  in sequence?
• Analyses can interact to improve one another
  (problem is in the complexity of the interaction
  Pratt)

38
Pruning combined domains
2 ?x, y?
y b
x f(y, z)
1 ?x, true?
4 ?x, y?z?
5 ?x,x, y, x, z,y, z, (x?(y?z))? (y?z)?
z c
3 ?x, z?
39
Pruning combined domains

• Suppose that ?1? D1?C and ?2?D2?C, then how is
  DD1?D2 interpreted?
• Then ?d1,d2??c iff d1?1c ? d2?2c
• Ideally, many ?d1,d2??D will be redundant, that
  is, ??c?C . c?1d1?c?2d2

40
Time versus precision from TOPLAS
17(1)28--44,1993
Time Precision
Share ASub Share?ASub Share ASub Share?ASub
serialise 9290 839 1870 235 35 35
init-subst 569 1250 829 5 72 5
map-color 4600 1040 5760 76 74 73
grammar 170 140 269 11 11 11
browse 51860 1609 49580 196 104 104
bid 1129 1000 1429 11 0 0
deriv 2819 2630 3550 0 0 0
rdtok 5670 4450 6389 185 48 48
read 8790 8380 11069 11 1 1
boyer 11040 3949 7709 242 93 93
peephole 20760 7990 23029 386 310 310
ann 93509 16789 53269 1935 1690 1690
41
The Galois framework

• Abstract interpretation is classically presented
  in terms of Galois connections

42
Lattices a prelude to Galois connections

• Suppose ?S, ?? is a poset
• A mapping ?S?S?S is a join (least upper bound)
  iff
• a?b is an upper bound of a and b, that is, a?a?b
  and b?a?b for all a,b?S
• a?b is the least upper bound, that is, if c?S is
  an upper bound of a and b, then a?b?c
• The definition of the meet ?S?S?S (the greatest
  lower bound) is analogous

43
Complete lattices

• A lattice ?S, ?, ?, ?? is a poset ?S, ?? equipped
  with a join ? and a meet ?
• The join concept can often be lifted to sets by
  defining ??(S)?S iff
• t?(?T) for all T?S and for all t?T
• if t?s for all t?T then (?T)?s
• If meet can often be lifted analogously, then the
  lattice is complete
• A lattice that contains a finite number of
  elements is always complete

44
A lattice that is not complete

• A hyperplane in 2-d space in a line and in 3-d
  space is a plane
• A hyperplane in Rn is any space that can be
  defined by x?Rn c1x1cnxn c where
  c1,,cn,c?R
• A halfspace in Rn is any space that can be
  defined by x?Rn c1x1cnxn ? c
• A polyhedron is the intersection of a finite
  number of half-spaces

45
Examples and non-examples in planar space
46
Join for polyhedra

• Join of polyhedra P1 and P2 in Rn coincides (with
  the topological closure) of the convex hull of
  P1?P2

47
The join of an infinite set of polyhedra

• Consider the following infinite chain of regular
  polyhedra
• The only space that contains all these polyhedra
  is a circle yet this is not polyhedral

48
Galois connection example (2 complete lattices
)

• The concrete domain ?C,?C,?C,?C? is ??(Z),?,?,??
• The abstract domain ?A,?A,?A,?A? where
• A ?,,-,T
• ? ?A a ?AT for all a?A
• join ?A and meet ?A are defined by

?A ? - T
? ? - T
T T
- - T - T
T T T T T
?A ? - T
? ? ? ? ?
? ? T
- ? ? - T
T ? - T
49
concretisation mapping

• The concretisation mapping ?A?C is defined
• ?(?) Ø
• ?() n?Z n gt 0
• ?(-) n?Z n lt 0
• ?(T) Z
• Concretisation spells out how to interpret the
  symbols in the abstract domain
• Observe that ?(?)??()??(T) and more generally ?
  is required to be order-preserving
• If a1 ?A a2 then ?(a1) ?C ?(a2)

50
an abstraction mapping

• Since 1,2??() and 1,2??(T) either or T can
  represent 1,2.
• Thus need a mechanism to map a set to the best
  abstract object that represents it
• The abstraction mapping ?C?A is defined
• ?(S) ? if S Ø
• ?(S) else if n gt 0 for all n?S
• ?(S) - else if n lt 0 for all n?S
• ?(S) T otherwise
• Require ? to be monotonic, that is, if c1 ?C c2
  then ?(c1) ?A ?(c2)

51
? can be defined from ? (and vice versa)

• Observe ?(S) ?Aa?A S ? ?(a)
• As an example consider ?(1,2)
• 1,2 ? ?(T) ?
• 1,2 ? ?() ?
• 1,2 ? ?(-) ?
• 1,2 ? ?(?) ?
• Therefore ?(1,2) ?A, T
• Dually ?(a) ?S?Z ?(S) ?A a

52
? requires A to be complete (dually for ? and C)

• Since ?(S) ?Aa?A S ? ?(a), meet needs to be
  defined over possibly infinite subsets of A
• Observe that ? ?(R2)?A cannot be defined for A
  set of planar polyhedra
• Consider c ?x, y??R2 x2 y2 ? 1
• But ?Aa1, a2, a3, is not defined

c
a1
a2
a3
53
?A, ?, C, ?? is Galois connection whenever

• ?A, ?A? and ?C, ?C? are complete lattices
• The mappings ?C?A and ?A?C are monotonic, that
  is,
• If c1 ?C c2 then ?(c1) ?A ?(c2)
• If a1 ?A a2 then ?(a1) ?C ?(a2)
• The compositions ???A?A and ???C?C are
  extensive and reductive respectively, that is,
• c ?C (???)(c) for all c?C
• (???)(a) ?A a for all a?A

54
c ?C (???)(c) is a statement about safe
abstractions

• If c lt c for some c?C then working in abstract
  setting has compromised precision
• If c lt c for some c?C then working in abstract
  setting has compromised correctness
• Bar (???)(c) ltC c for every c?C
• Thus stipulate c ?C (???)(c) for all c?C to
  guarantee safety

?
c
a
c
?
55
(???)(a) ?A a is a statement about best
abstractions

• Recall that ?(a) spells out what a?A represents
• Thus a is one way to describe ?(a) T is another
  way to describe ?(a) but a is better since a ?A T
• Desire ?(?(a)) to be the best way to describe
  ?(a)
• Therefore require ?(?(a)) ?A a

56
Collecting domains and semantics

• Observe that C is not that concrete programs
  include operations such as Z?Z?Z
• C?(Z) is collecting domain which is easier to
  abstract than Z since it already a lattice
• To abstract Z?Z?Z, say, we synthesise a
  collecting version C?(Z)??(Z)??(Z) and then
  abstract that
• Put S1 C S2 n1n2 n1? S1 and n2 ? S2

57
Safety and optimality requirements

• The most precise (optimal) way to define AA?A?A
  is to define a1 A a2 ?(?(a1)C?(a2))
• Not practical since ?(a1) and ?(a2) are infinite
• Handcraft computable AA?A?A with a1 A a2 ?A
  a1 A a2 for all a1,a2?A
• Merely need to assert ?(?(a1)C?(a2)) ?A a1 A
  a2 for all a1,a2?A for correctness

58
Abstract multiplication

• Consider ?(?()C?()) and A
• Recall ?() n?Z n gt 0, hence ?()C?()
  n1n2 n1 gt 0 and n2 gt 0 n n gt 0
• Hence ?(?()C?()) A

• Since ?(?()C?()) ?A A safety follows for
  this case
• Since A ?(?()C?()) optimality follows
  for this case

A ? - T
? ? ? ? ?
? - T
- ? - T
T ? T T T
59
Exotic applications of abstract interpretation

• Recovering programmer intentions for
  understanding undocumented or third-party code
• Verifying that a buffer-over cannot occur, or
  pin-pointing where one might occur in a C program
• Inferring the environment in which is a system of
  synchronising agents will not deadlock
• Lower-bound time-complexity analysis for
  granularity throttling
• Binding-time analysis for inferring off-line
  unfolding decisions which avoid code-bloat
