Title: Intrinsic Absorption in Quasars: BALs


1

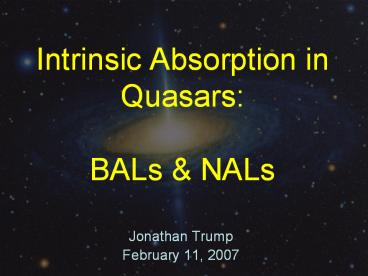

Intrinsic Absorption in QuasarsBALs NALs
  • Jonathan Trump
  • February 11, 2007

2
Quasar Absorption Lines
  • Intrinsic
  • Caused by material in the AGN engine itself
  • Host
  • From gas in the host galaxy
  • Intervening
  • From an intervening galaxy
  • This all has nothing to do with Type 2 AGN were
    talking about absorption lines by diffuse gas,
    not global obscuration of the BLR by lots of dust!

3
Why Should We Care?
  • Dynamics
  • Mechanism for losing angular momentum?
  • Accretion disk as power source for winds
  • Effects on host?
  • Composition
  • Densities
  • Abundances
  • Unified Model
  • Evolution? Orientation?

4
Broad Absorption Line Quasars
from Trump et al. 2006
5
Broad Absorption Line Quasars
  • Broad absorption
  • Typically gt1000 km/s
  • Up to 20,000 km/s
  • Blueshifted from emission line
  • Typically few thousand km/s (0.01c)
  • Up to 60,000 km/s (0.2c)
  • Outflowing gas wind
  • High velocity dispersion
  • High velocity

6
The Zoo of BAL types
from Reichard et al. 2003
7
Broad Absorption Line Quasars
  • High-Ionization BALs
  • CIV 1550 Å, also SiIV, NV, Lya
  • 15 of quasars
  • Low-Ionization BALs
  • MgII 2800 Å, also Al II, Al III
  • 1-2 of quasars
  • FeLoBALs
  • FeII or FeIII (widespread)
  • lt0.1 of quasars
  • Rarer objects absorption in He, Balmer lines

8
FeLoBALs (theyre weird)
from Trump et al. 2006
9
FeLoBALs (theyre weird)
from Hall et al. 2007
For more about FeLoBALs, see Hall et al. 2002,
ApJ, 141, 267
10
Characterizing BALs
  • Balnicity Index (BI)
  • Weymann et al. 1991
  • Limits width, min/max blueshift, depth
  • Absorption Index (AI)
  • Hall et al. 2002
  • Less limiting than BI, includes mini-BALs
  • Characterization limited by S/N of spectra
  • BALQSOs are red, and LoBALs are redder
  • BALQSO fraction
  • Underestimated by all surveys fainter, redder,
    obscured in X-rays
  • Typically saturated, but with partial coverage

11
What Causes BALs?
  • Evolution
  • Young quasars in a dusty cocoon
  • Especially considered for LoBALs
  • Orientation
  • Disk-driven wind in all quasars
  • Only visible in BALs because of orientation
  • Supporting evidence Increased trough velocity
    with luminosity (Trump et al. 2006)
  • See models by Murray Chiang 1998, Proga et al.
    2000, etc.

12
from Elvis 2000
13
BALQSOs in Radio
  • LBQS (Weymann et al. 1991) surprising lack of
    radio-loud BALQSOs
  • SDSS (Reichard et al. 2003) same findings
  • 10 of quasars are radio-loud, but only a few
    percent of BALQSOs are radio-loud
  • Supports orientation

14
BALQSOs in X-rays
  • From Brandt et al. 2000
  • More UV absorption -gt weaker in soft X-rays

15
BALQSOs in X-rays
  • weaker X-rays -gt harder spectrum
  • Absorbed in soft X-rays only
  • Gallagher et al. 2006

16
BALQSOs in IR
  • If BALQSOs are in a dusty cocoon, wed expect
    stronger IR emission
  • Not the case!
  • Spitzer survey of Gallagher et al. 2007 find
    similar properties to normal QSOs
  • Occasionally, some narrow absorption in IR

17
BALs from Orientation
  • Different absorption mechanisms originate at
    different scales from the central engine

from Gallagher Everett 2007
18
Narrow Absorption Lines
from Wise et al. 2004
from Narayanan et al. 2004
19
Narrow Absorption Lines
  • In gt20 of all quasars (Wise et al. 2004), but
    hard to ID because of S/N host/intervening
    lines
  • Variability
  • Variable on the order of 1 yr
  • Implies scales of lt100 pc from the central source
  • gt Intrinsic!
  • Really, the only way to determine intrinsic from
    host/intervening but time-consuming

20
BALs NALs In Summary
  • BALs big, broad, blueshifted absorption
  • High velocities velocity dispersions require
    AGN engine
  • NALs narrow, blueshifted absorption
  • High velocities variability require AGN engine
  • Typically weaker in X-rays, radio
  • Mid-IR normal
  • Probably caused by orientation
  • Disk-driven winds
  • But LoBALs are tougher to explain

21
BALs from Orientation
from Gallagher Everett 2007
