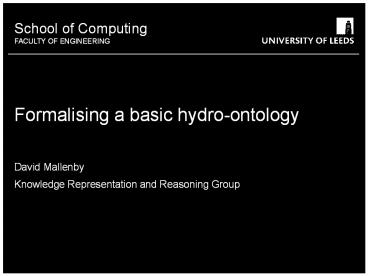

Formalising a basic hydro-ontology

1
Formalising a basic hydro-ontology
School of Computing FACULTY OF ENGINEERING

• David Mallenby
• Knowledge Representation and Reasoning Group

2
School of Computing FACULTY OF ENGINEERING

• Vagueness in Geography examples
• Vagueness is ubiquitous in geographical concepts
• Both boundaries and definitions are usually
  vague, as well as resistant to attempts to give
  more precise definitions
• Vagueness is also contextual a large river in
  one country may not be considered large somewhere
  else
• Classical reasoning requires explicit boundaries
  something is or isnt a river

3
School of Computing FACULTY OF ENGINEERING

• Vagueness in Geography vague reasoning
  approaches
• A better approach therefore would be to allow
  reasoning of the vague predicates, rather than
  using predefined perspectives and segments
• The principle approaches for vague reasoning are
• Fuzzy Logic
• Supervaluation theory
• Often presented as opposing theories, but this in
  part assumes that vagueness can only take one
  form
• Rather, there are instances suited to each
  approach
• So we must consider what our problem requires,
  then determine which approach is most suitable

4
School of Computing FACULTY OF ENGINEERING

• Vagueness in Geography our system
• In our proposed system we wish to segment,
  individuate and label hydrological features
• Crisp boundaries are not suited to fuzzy logic,
  where transitional boundaries would be generated
• Supervaluation theory on the other hand, would
  allow crisp boundaries by using user preferences
  as precisifications
• Therefore, supervaluation theory is preferred
  approach here

5
School of Computing FACULTY OF ENGINEERING

• Ontology grounding overview
• Ontology level is usually seen as separate to the
  data level we reason within the ontology and
  return the data that matches our queries
• Thus the data is devoid of context, which has an
  impact on handling vagueness
• An improvement would instead be to ground the
  ontology upon the data
• This means we make an explicit link between the
  ontology and the data, thus allowing reasoning to
  be made within context
• Allows the user to decide the meaning of the
  concepts to some extent

6
School of Computing FACULTY OF ENGINEERING

• Ontology grounding usage
• Requires work at both ontology and data level
• At ontology level we consider what attributes we
  require to identify and reason about features
• At data level we consider how to obtain such
  attributes
• For example, linearity is an important
  geographical concept, as the way a feature
  changes shape is often used in classification
• Such an attribute is dependant on the context
• So by identifying linear stretches we have an
  attribute that can be passed to an ontology
  grounded upon the data to facilitate reasoning

7
School of Computing FACULTY OF ENGINEERING
Inland water case study the Hull estuary
8
School of Computing FACULTY OF ENGINEERING
The medial axis of the Hull estuary

• Because only require inland water features,
  medial axis of sea is removed, with only part
  left at river mouth to allow reasoning of mouth

9
School of Computing FACULTY OF ENGINEERING

• Data representation linearity
• Calculation of linearity could be performed in a
  variety of ways
• We require a scale invariant approach

• We take a point P on the medial axis, and get the
  maximal inscribed disc at that point (radius R in
  the diagram)
• For all points on medial axis that are inside
  this disc, we get the radius at that point,
  finding the min and max (Rmin and Rmax in the
  diagram)
• If the ratios R-Rmin and R-Rmax fall below a
  certain threshold, the point is labelled linear
• We do this process for all end nodes of arcs in
  the superarc if both nodes of an arc are linear,
  then the arc is marked linear

10
School of Computing FACULTY OF ENGINEERING

• Data representation gaps
• Sometimes arcs we would like to mark as linear
  are not marked as such
• Small inlets at the edge of the river
• Sharp bends
• We could vary our linearity threshold, but this
  may include arcs we do not wish to include
• Instead it is intuitive to have a gap
  precisification, such that we join together
  stretches that are close enough together given
  some threshold

11
School of Computing FACULTY OF ENGINEERING
Results of marking stretches and gaps
Initial result
12
School of Computing FACULTY OF ENGINEERING
Results of marking stretches and gaps
Decrease the gap threshold
13
School of Computing FACULTY OF ENGINEERING
Results of marking stretches and gaps
Increase linearity threshold
14
School of Computing FACULTY OF ENGINEERING

• From stretch to ontology
• Intention is to build features up from primitives
• In the case study, the main primitive shown is
  that of a stretch
• Initially this stretch was based purely on
  linearity
• Other considerations have arose though
• Linearity measurement may need modifying
• Gaps between linear stretches
• Small inlets at the edges
• So our concept of stretch is itself built up from
  primitive elements

15
School of Computing FACULTY OF ENGINEERING

• From stretch to ontology
• System marks and stores polygons with series of
  properties, from which an ontology could build
  upon
• For example, suppose we have the following
  options available to us
• Stretch/non-stretch (can be either just linear
  stretches or major stretches)
• Wide/narrow for stretches
• Large/small area for non-stretches
• We can build simple definitions such as
• ?xriver(x) ? waterfeature(x) ?
  has_property(x,stretch) ? has_property(x,wide)
• ?xlake(x) ? waterfeature(x) ?
  has_property(x,nonstretch) ? has_property(x,large)


16
School of Computing FACULTY OF ENGINEERING

• Other basic notions moving to 3D
• Presently only working with 2D data
• This is sufficient for case study, as people are
  able to identify features from 2D maps
• A more complete ontology though would require
  considering the world from a 3D perspective
• Thus an obvious simple property would be depth
• However, also opens up option to consider water
  features from a different perspective the land
  form that contains the water

17
School of Computing FACULTY OF ENGINEERING

• Contour surfaces of matter
• Following on from this, we may want to consider
  some primitive matter types, and the interaction
  between them
• 3 simple matter types would be solid, liquid and
  gas
• So building previously mentioned example, a river
  could consist of a contour in a solid surface
  that contains flowing water

18
School of Computing FACULTY OF ENGINEERING

• The reference ellipsoid
• The geoid is a surface that approximates the mean
  ocean surface, and thus approximates the shape of
  the Earth
• The reference ellipsoid approximates the geoid
  (to an accuracy of about 100m)
• Used as basis of co-ordinate system of
  latitude,longitude and height
• Would allow more accurate representation of Earth
  in ontology

19
School of Computing FACULTY OF ENGINEERING

• From 3D to 4D
• Final consideration would be the incorporation of
  time
• Geography is full of examples of change through
  time rivers drying up, islands within rivers
  eroding until two rivers join
• Also previously mentioned matters may change over
  time ice to water to vapour
