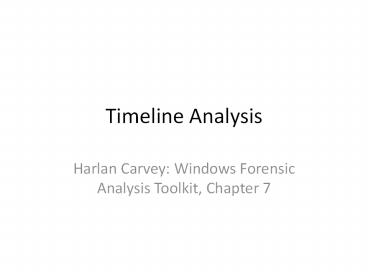

Timeline Analysis
  • Harlan Carvey Windows Forensic Analysis Toolkit,
    Chapter 7

2
Time Line Analysis
  • Lists all system events, files, browser
    activities in chronological order
  • Multiple data sources
  • Multiple systems
  • Becoming very important in forensic analysis
  • Approaches
  • Automatically gather everything
  • Kristinn Gudjonsson log2timeline
  • Pick and choose
  • Harlan Carvey This presentation

3
Carveys Approach
  • Command line driven
  • Multiple tools
  • Guided by the objectives of the investigation
  • Looking for system files with date/time info
  • Biggest is in the MFT
  • STANDARD_INFORMATION attribute
  • Event logs
  • Registry every entry has time associated with
    it
  • Browser logs

4
Get the Right Tools
  • Windows Forensic Analysis Toolkit
  • Harlan Carveys book
  • Emphasis is on Windows 7
  • Get his tools for the book here
  • http//code.google.com/p/winforensicaanalysis/down
    loads/list
  • Sleuthkit
  • Fls
  • FTK Imager

5
(No Transcript)
6
Temporal Proximity
  • The more current the time info is the more
    accurate it may be
  • Because times may be altered multiple references
    to a particular time will increase the confidence
    in that time

7
TLN Format
  • Pipe delimited text file
  • 5 fields
  • Time Source System User Description
  • Easy to parse
  • The user and description fields are relatively
    free form

8
Time Field
  • 32-bit Unix time format
  • UTC
  • Granularity to the second
  • Not sufficient for time stomping analysis base of
    MFT times

9
Time Formats
  • 64-bit FILETIME (UTC)
  • Number of 100 nanosecond intervals since 1/1/1601
  • 32-bit Unix time format (UTC)
  • Number of seconds since 1/1/1970
  • String based format (local time)
  • 01/01/2010 242 PM
  • SYSTEMTIME (local time)
  • Used some registry entries and some XP times

10
Time FormatMost often used in Windows
typedef struct _FILETIME DWORD
dwLowDateTime DWORD dwHighDateTime
FILETIME, PFILETIME
BOOL WINAPI FileTimeToSystemTime( _In_   const
FILETIME lpFileTime, _Out_  LPSYSTEMTIME
lpSystemTime )
typedef struct _SYSTEMTIME WORD wYear WORD
wMonth WORD wDayOfWeek WORD wDay WORD
wHour WORD wMinute WORD wSecond WORD
wMilliseconds SYSTEMTIME, PSYSTEMTIME
11
Source Field
  • FILE file system create dates
  • EVT XP, 2000, 2003 event logs
  • EVTX Vista and 7 event logs
  • REG registry dates
  • Etc.

12
System Field
  • System name
  • Host name
  • IP Address
  • MAC Address

13
User Field
  • User associated with the event
  • SID
  • Users are often associated with registry entries

14
Description Field
  • Brief description
  • Sufficient information to evaluate significance
  • Can include spaces and special characters
  • Just no s

15
Creating Timelines
  • Usually from an acquired image
  • Sources
  • Your system
  • http//www.cfreds.nist.gov/Hacking_Case.html
  • http//www.forensickb.com/2008/01/forensic-practic
    al.html
  • Have to convert E01 format to dd Use FTK imager
  • Requires
  • ActiveState Perl 5.
  • Sleuthkit

16
File Meta-DataDead Box
  • Use mmls to find partition
  • C\casegtmmls t dos i raw WinSP2.001
  • Use fls to extract file metadata
  • C\casegtfls i raw o 63 f ntfs r p -m C\ gt
    bodyfile.txt
  • -m C\ use C\ as the mount point in the output
  • Extract relevant information from the bodyfile
  • Use Carveys Perl script
  • C\casegtperl bodyfile.pl f bodyfile.txt s
    Server gt events.txt
  • -s Server adds the servers name to output

17
File Meta-DataLive System or Remotely Mounted
  • Open FTK Imager
  • Add image as an evidence item
  • Right click on evidence item
  • Export Directory Listing
  • .csv file in case folder

18
The Directory Listing
19
Clean up the .csv File
  • Change the root directory to C\
  • Make it pretty
  • Save it as a tab delimited .cvs file

20
Into Bodyfile Format
  • Have to use Carveys ftkparse.pl script
  • Perl c\bin\Carvey\ftkparse.pl live-dir.csv gt
    live-bodyfile.txt

21
Into TLN Format
  • Have to use Carveys bodyfile.pl paraser
  • Perl C\bin\carvey\bodyfile f bodyfile.txt s
    LapTop gt live-events.txt

22
Registry Data
  • Registry key LastWrite times
  • Contains a time line of user/system activity
  • Some very useful tools
  • regtime.Pl
  • regripper

23
Add Registry Data to the Time Line
  • System config in formation
  • Devices that have been connected
  • WAPs that a laptop had been connected to
  • Files accessed (MRU lists)

24
Timeline Tools
  • RegTime
  • Parses key LastWrite times for all allocated keys
    within the specified hive file
  • Regtime r NTUSER.DAT m HKCU/ -s Server u User
    gtgt events.txt
  • Regtime r System m HKLM/System/ -s Server gtgt
    events.txt

25
Regripper
  • Timeline tools
  • Using RegRippers rip CLI utility
  • Get System name
  • C\rip r System p compname
  • Parse UserAssist data
  • C\rip r NTUSER.DAT p userassist_tln s
    Server
  • u User gtgt events.txt

Note A number of plugins output in TLN format
26
Event Logs into the TimeLine
  • Windows XP Event Logs readily parsed
  • Get
  • AppEvent.evt, SysEvent.evt, SecEvent.ect
  • Into the TimeLine
  • Evtparse d ltdirgt gtgt events.txt
  • Vista and Win 7
  • Much more info
  • Includes driver installations
  • USBs, etc.
  • C\Windows\system32\winevt\Logs

27
Log Parser
  • Log Parser is a good tool to parse Windows Event
    Logs
  • Example
  • Logparser ievt oscv elect RecordNumber,TO_UTC
    TIME(TimeGeneratde),EventID,SourceName,Strings
    from System gt d\case\system.txt
  • You can replace System with d\case\system.evtx
    or d\case\.evtx
  • Parse the output
  • Evtxparsed \case\system.txt gtgt events.txt
