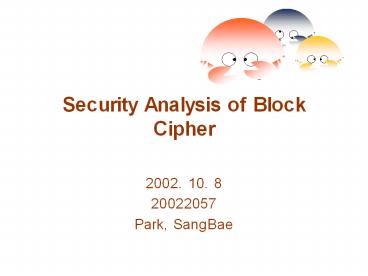

Security Analysis of Block Cipher

1
Security Analysis of Block Cipher

• 2002. 10. 8
• 20022057
• Park, SangBae

2
Contents

• Introduction of Boolean Function
• Block Cipher Design Review
• Cryptanalysis Method Provable Security
• Design Issue
• S-box Design Diffusion Layer
• Example of S-box analysis
• Future Works

3
Introduction

• Boolean Fucntion
• Function from GF(2n) to GF(2m)
• Generally, when m gt 1, Vector-valued Boolean
  Function (or Vector Boolean Function)
• Example
• f(x1, x2, x3) x1 x2 x2 x3
• Sequence of f() 00010010

4
Introduction

• Block Cipher as Boolean Function
• Block Cipher
• F P ? K ? C with F(P, K) C
• GF(2128) ? GF(2128) ? GF(2128)
• Round Function
• f Pi ? Ki ? Ci with F(Pi, Ki) Ci
• GF(264) ? GF(264) ? GF(264)
• S-box
• s Ini ? ki ? Outi with F(Ini, ki) Outi
• GF(28) ? GF(28) ? GF(28)

5
Basic Properties

• Representation
• The Algebraic Normal Form
• Well known representation
• ex) x1 x2 x3 x1
• The Sequence of Given function
• Value of given Boolean function
• ex) 00010010
• The Walsh-Hadamard Transform
• The correlation value to linear functions
• ex) 2 0 -2 0 0 2 0 -2

6
Basic Properties

• Balancedness
• Hamming weight of given sequence
• Nonlinear Order
• Algebraic Nonlinear Order (Not Robust)
• Completeness
• Every input bit affect to the outptu bit

7
Basic Properties

• Nonlinearity
• minimum Hamming distance to linear functions
• Correlation
• autocorrelation
• cross correlation
• Propagation Criterion (including SAC)
• can be guaranteed by high nonlinearity
• diffusion property

8
Cryptanalysis Methods

• Differential Cryptanalysis
• Linear Cryptanalysis
• Interpolation Attack
• Square Attack

9
Differential Cryptanalysis

• General
• The First Attack against full round DES
• Using the biased distribution of XOR pairs

Input XOR(Uniform)
Uniform
Uniform
f (S-Box)
f (S-Box)
Uniform
Uniform
Output XOR(Biased)
10
Differential Cryptanalysis

• Difference Distribution Table
• number of pairs satisfying given Input, output XOR

Output XOR
Input XOR
0x
1x
2x
3x
4x
5x
6x
7x
8x
9x
Ax
Bx
Cx
Dx
Ex
Fx
0x
64
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1x
0
0
0
6
0
2
4
4
0
10
12
4
10
6
2
4


3Fx
4
8
4
2
4
0
2
4
4
2
4
8
8
6
2
2
11
Differential Cryptanalysis

• Example of 2 round characteristic

?P 00 80 82 00 60 00 00 00x
60 00 00 00x
00 80 82 00x
F
p 14/64
0
0
F
p 1
?T 60 00 00 00 00 00 00 00x
12
Differential Cryptanalysis

• Research Issue
• Cryptanalysis
• How to find a characteristic with high
  probability
• Cryptography
• How to construct secure S-Boxes
• Markov Cipher
• Boolean Function
• Nonlinearity
• Propagation criteria
• Bent function
• Vector-valued Boolean function

13
Provable Security

• Main Idea
• Approach in the view of differential
• Provable Security against DC and LC
• KN-Cipher
• Lars R. Knudsen, Kaisa Nyberg
• Round Function g(x) x3 in GF(233)
• MISTY
• Mitsuru Matsui
• Recursive Structure
• Modified Feistel Network

14
Provable Security

• Characteristic
• Fixed Path

?P
a1
b1
p1
F
a2
b2
p2
p ? pi
F
a3
b3
p3
F
?T
15
Provable Security

• Differential
• Consider all possible path

?P
a1i
b1i
p1i
F
a2j
b2j
p2j
p ? (p1i ? p2j ? p2j)
F
a3k
b3k
p3k
F
?T
16
Provable Security

• Recursive Structure of MISTY1

32
32
16
16
9
7
FI
S9
FO
FI
S7
FO
S7
FI
FO
17
Practical Security

• The Wide Trail Strategy
• Design the round transformation in such a way
  that only trails with many S-boxes occur
• Maximize the number of Active S-boxes
• Branch Number B(f) minx?0(wh(x) wh(f(x)))
• SQUARE
• following the Wide Trail Strategy
• MDS (Maximal Distance Separable) code
• Maximum Branch number
• Self-reciprocal structure

18
Recent Block Ciphers

• CAST Diffusion Effects
• 8 ? 32 S-box

ltlt
S1
S2
S3
S4
19
Recent Block Ciphers

• CRYPTON SEED Diffusion Transform

20
Recent Block Ciphers

• E2 Round Function (SPS-Structure)

Round key
S
P
Round key
S
21
S-box Construction

• Simulation
• DES
• Combination of Boolean Function
• CAST
• Vector-valued Boolean Function
• KN-Cipher, SEED, AES
• Small Feistel Network
• MISTY, Crypton

22
Diffusion Layer

• Perfect S-box cannot guarantee the security of
  round function
• 8 ? 32 S-box
• Wide Trail Strategy (using a MDS code)
• SPS Structure

23
Project Progress

• Boolean function analysis library
• Three Representation
• sequence
• algebraic normal form
• Walsh-Hadamard
• Hamming Weight
• Nonlinearity
• Autocorrelation
• Review recent block cipher algorithm and
  cryptanalysis methods

24
Project Progress

• DES S-box (S1)
• The first bit
• Algebraic Normal Form
• 1 x1 x2 x1 x2 x3 x4 x3 x4 x1 x3 x4
  x2 x3 x4 x5 x4 x5 x3 x4 x5 x6 x2 x6
  x3 x6 x1 x3 x6 x2 x4 x6 x3 x4 x6 x1 x3 x4
  x6 x2 x3 x4 x6 x1 x2 x5 x6 x3 x5 x6 x1 x3
  x5 x6 x2 x3 x5 x6 x4 x5 x6 x1 x2 x4 x5 x6
  x3 x4 x5 x6 x1 x3 x4 x5 x6
• Nonlinearity 18
• Hamming Weight 32
• Sequence
• 1 0 0 1 1 0 0 0 0 1 1 0 1 1 1 0 0 1 1 0 0 1 1 1 0
  1 1 0 0 0 0 1
• 0 1 0 1 1 1 1 0 1 0 0 1 0 0 1 0 1 0 1 1 1 0 0 1 0
  1 1 0 0 0 0 1

25
Project Progress

• DES S-box (S1)
• The first bit
• W-H Sequence
• 0 0 4 4 -4 4 0 8 -8 0 -4
  -12 4 4 8 -8
• 0 -8 -12 -4 4 20 8 -24 8 8 -4 -4
  -4 4 0 8
• 0 0 -4 12 4 -4 0 8 8 0 4
  -4 -4 -4 -8 -8
• 0 -8 -4 -12 -4 -4 8 8 8 -8 4 -28
  -12 -4 0 -8
• Autocorrelation
• 64 -32 -24 24 0 0 -8 8 0 -8
  0 -16 -24 24 8 -16
• -32 24 8 -8 0 0 8 0 -8 0
  0 16 24 -24 -16 8 0 0 8 -16 -24
  32 16 -16 24 -16 -8 8 -8 8 -8 0
  0 0 -8 16 24 -32 -16 16 -32 24 16
  -16 0 0 16 -8

26
Future Works

• Security analysis of block ciphers consisting of
  Boolean function of low algebraic order
• Implement S-box Analysis Tools using current
  library

27
QnA
