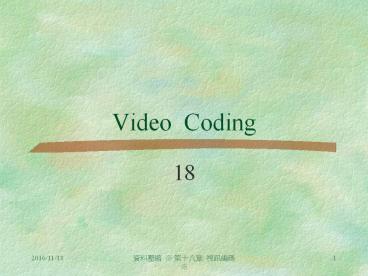

Video Coding

1
Video Coding

• 18

2
Introductions

• Inter-frame redundancy
• HVS low pass filter
• very insensitive to high
• spatial and temporal
• frequency

3
Introductions

• Conditional Replenishment
• Motion-compensated Coding
• 3-D Transform Coding
• Hierarchical Coding
• MPEG-X

4
Conditional Replenishment
5
Conditional Replenishment

• 1 bpp with SNR31.02 dB

6
3-D Transformation
7
3-D Transformation

• 0.5 bpp with SNR30.04 dB

8
Motion Compensated Coding

• Block diagram

9
Motion Compensated Coding

• Motion estimation

10
Motion Compensated Coding

• Exhaustive search

11
Motion Compensated Coding

• Logarithmic search

12
Motion Compensated Coding

• Three step search

13
Motion Compensated Coding

• Hierarchical search - Zenith

14
Motion Compensated Coding

• 0.125 bpp with SNR35.8 dB

15
MPEG-X

• MPEG-1 (ISO/IEC 11172, Nov 92)
• Compression standard for progressive frame-based
  video in SIF(360?240), targeted at 1.5 Mbits/s
• 1.2 Mbits/s for video, 250 Kbits/s for audio
• Applications VCD, MP3
• MPEG-2 (ISO/IEC 13818, Nov 94)
• Compression standard for interlaced frame-based
  video in CCIR-601(720?480) and high definition
  format(1920 ?1088), wide range of bit rates 4 to
  80 Mbits/s
• Optimized around 4 Mbits/s
• Applications DVD, HDTV Studio, and etc

16
MPEG-X

• MPEG-4 (ISO/IEC 14496, Oct 98)
• Multimedia standard for object-based video for
  nature or synthetic source
• Coding for various bandwidth (5 Kbps 270 Mbps)
• Applications Internet, cable TV, 3G wireless
  communication, and etc
• MPEG-7 (ongoing)
• Multimedia content description interface
• Applications Internet, video search engine,
  digital library
• Specify only bitstream syntax and decoding

17
Why does company work in the standards?

• Interoperability
• War of formats
• VHS vs. Beta DVIX vs. DVD
• Patent Royalties
• Licensing fee for an MPEG-2 box is US 4 from
  MPEGLA
• Total licensing fee for DVD is around US 10
• Big companies can avoid being taxed by other
  companies
• 250 Millions per year for RCA patent profiles
• Create new markets
• VCD Video Compact Disk
• DVD Digital Versatile Disk
• DBS Direct Broadcast System
• HDTV Grand Alliance in the US, DVB in Europe

18
MPEG-1

• Requirements (Part)
• Coding of generic video with good quality (about
  VHS video) at 1 to 1.5 Mbits/s
• Random access to a frame in limited time
• Frequent access points
• Fast forward/reverse
• Seek and play in FF/FR using access points
• System supporting audio-visual synchronized
  play/access
• A practical/implementable decoder
• And etc

19
MPEG-1

• New Features (w.r.t H.261)
• Flexible picture sizes, picture rates, etc
• Picture size up to 4096?4096 supported
• Normally at 360?240
• Picture rates 23.976, 24 (movies), 25 (PAL),
  29.97, 30, 50, 59.94, 60
• Bi-directional motion compensation
• Half-pel motion compensation
• VLC for MV difference
• And etc

20
MPEG-1

• Motion compensation
• Same as H.263
• Half-pel resolution for motion vectors
• Differential coding of motion vectors
• Motion compensation on 16?16 luminance blocks
• Motion vectors divided by 2 for chrominance
• Different from H.263
• VLC for MV difference

21
MPEG-2

• Requirements (Part)
• ITU-R 601 interlaced video with high quality at
  49 Mbits/s
• Scalable video coding for multi-quality video
  applications
• Maximum interoperability/compatibility with
  MPEG-1
• Support coding of non-interlaced and interlaced
  formats of many frame rates
• Support video formats of various aspect ratios
• And etc

22
MPEG-2

• NEW features
• Allow 422 and 444 formats for chrominance
• Frame-pictures and field pictures
• Frame/field/dual-prime adaptive motion
  compensation
• New VLC table for DCT coefficients
• Nonlinear quantization table
• Slice always start and end at the same raw of
  macroblocks
• Motion vectors always coded in half-pel
• And etc

23
MPEG-2

• Chrominance Sampling

24
MPEG-2
25
MPEG-2

• Coding of interlaced video
• Frame-pictures or field pictures
• Motion compensation
• Frame prediction for frame-pictures frame
  motion vectors
• Same as MPEG-1
• Field prediction for field pictures field
  motion vectors
• Field prediction for frame-pictures
• Prediction from either field of the previous
  frame
• Good for fast motion
• Dual-prime two predictions are formed for each
  field from the two recent fields. They are then
  averaged for final prediction
• Field-pictures or frame-pictures
• Only for P-pictures
• 16?8 MC for field pictures - topbottom halves of
  each macroblock

26
MPEG-1/2

• Data Structure M3, N15 (tradeoff on M)

27
MPEG-1/2

• I-frames
• No temporal redundacy reduction
• Has the highest bit count
• For random access, FF, REW features
• P-frames
• Forward motion-compensated prediction
• B-frames
• Both forward and backward motion-compensated
  prediction
• Usually results in the lowest bit count
• Increase delay

28
MPEG-1/2

• I-frame
• JPEG DCT like
• Highest data rate
• Random access
• FF/FR

29
MPEG-1/2

• P-frame
• motion compensated
• coding
• Predicted by previous
• I or P frame
• Prediction error is then
• coded and transmitted

30
MPEG-1/2

• B-frame
• delay
• buffer
• lowest
• data rate
• Higher coding
• efficiency
• No error propagation

31
MPEG-1/2
intraframe processing
Variable Length Encoder
Buffer Control Strategy
Predictive frame processing
interpolative frame processing
32
MPEG-1/2 Results
Bit rate (Mbits/s) SIF-30 CVGA CCIR 601 29.97 FPS VGA HDTV 29.97 FPS HDTV 60 FPS SVGA
pels 352 720 1920 1280
Lines 240 480 1080 720
Original bit rates (Mbps) 30.4 121.5 745.7 663.6
1.1 Mbps Good Poor
4.0 Mbps Excellent Good
9.0 Mbps Excellent Excellent
18.0 Mbps Excellent Good Good
28.0 Mbps Excellent Excellent
33
MPEG-1 Demo

• Original Y(720?480), UV(360 ?480)
• Acer
• original 20 60 96
• Bike
• original 33 49 66 81 97
• Foot
• original 33 50 66 108 109
• Table Tennis
• Original 40 49 98 147 150

34
MPEG-2 Demo
35
TV, Telecom Computer Convergence

• Past
• Television RCA, TCI, GI etc.
• Telecommunications ATT, Hughes etc.
• Computer IBM, Microsoft etc.
• Now
• Television
• Hugues Thomson (RCA) Sarnoff -gt DIRECTV
• Microsoft Philips -gt WebTV
• Telecommunications
• ATT TCI _at_home -gt Local Telephone Service
  Internet
• Computer
• Window CE TV set-top box -gt Venus

36
MPEG-4

• What existing standards can do
• MPEG-1 Frame-based non-interlaced video (1.5
  Mbps)
• MPEG-2 Frame-based interlaced video (4 Mbps
  270 Mbps)
• H.261 Low bit rate video conference (64?p Kbps)
• H.263 Very low bit rates video conference (10
  Kbps)
• What the existing standards can not do
• Coding of video object with content information
  (Metadata)
• Coding of images for progressive transmission
• Coding of multimedia information for various
  bandwidths and media (5 Kbps 270 Mbps)
• Interactive

37
What applications are relevant to us?
38
Internet Image RetrievalJPEG vs. EZW
After 1 second
After 4 seconds
After 8 seconds
39
Multiresolution Feature Search Using Wavelet
40
Internet Commerce Using Metadata
41
Telemedicine Using Wavelet Compression
42
Consumer Videophone - Modes Applications
Family / Home
Stand-alone wired videophone
PC-based videophone
POTS/ISDN
LAN
Good spatio-temporal Quality Low end-to-end
Delay Channel Error Resilience
LAN ISDN
Virtual classroom Virtual meeting
43
Virtual Set Example
44
MPEG-4 Virtual Set Compositing
45
MPEG-4 Virtual Set
46
MPEG-4 Key Functionalities
Compression
Content-based interactivity
Universal access
47
MPEG-4 Key Functionalities

• Content-based interactivity
• A scene is composed of audio-visual objects
• Not just pixels or moving blocks
• Objects can be of different nature
• Text or images
• Rectangular or arbitrary shape
• 2D or 3D objects
• Natural or synthetic
• Different coding schemes applied to different
  objects
• Composer puts objects back in a scene

48
MPEG-4 Key Functionalities

• Universal access
• Robustness in error-prone environments
• Allow applications over wired and wireless
  networks
• Robust for severe error conditions, e.g. long
  error bursts
• Content-based scalability
• Allowing scalability in content, quality and
  complexity
• Achieving content based scaling of visual
  information

49
MPEG-4 Key Functionalities

• Compression
• Improved coding efficiency
• MPEG-4 video shall provide subjectively better
  visual quality at comparable bit rates compared
  to existing or emerging standards
• 5-64 Kbps for mobile applications
• Up to 20 Mbps for TV/film applications
• Coding of multiple concurrent data streams
• Can code multiple views of a scene efficiently,
  e.g. stereo video

50
MPEG-4 AV Objects

• Audiovisual Scene is composed of objects (AV)
• Compositor puts objects in scene (AV, 23D)
• Objects can be of different nature
• natural or synthetic AV, text graphics,
  animated faces, arbitrary shapes or rectangular
• Encoding the object independently
• Coding scheme can differ for individual objects
• From low bitrates to (virtually) lossless quality

51
Object Functionalities in MPEG-4
52
Video object planes (VOPs)

• Imagedifferent objectstextbackground (VOPs)
• Single VOP backward compatible to MPEG-1/2
• Composition or segmentation
• Note segmentation is outside the scope of
  MPEG-4
• Characteristics of VOP
• Separate object coding
• Separate object manipulation
• May have different spatial and temporal
  resolutions
• May be associated with different degrees of
  accessibility sub-VOPs
• May be separated or overlapping

53
Separated and overlapping VOP
54
Content-based object manipulation

• Change of the spatial position of a VOP
• Application of a spatial scaling factor to a VOP
• Change of the speed with which a VOP moves
• Insertion of new VOPs
• Delete of an video object (VO) in the scene
• Successive VOPs belonging to the same physical
  objects in a scene are referred as vider objects
  (VO)
• Change of the scene area

55
Example of bit stream manipulation (1)
56
Example of bit stream manipulation (2)
57
Segmentation process

• Depending on applications, segmentation can be
  performed
• Online (real-time) or offline (non-real time)
• Automatic or semi-automatic
• Examples
• Video conferencing
• Real-time, automatic
• Separate foreground (communication partner) from
  background
• Object tacking in video
• May allow off-line and semi-automatic
• Separate moving object from others

58
Video object plan formation

• Rectangular or arbitrary

59
Demo

• Segmentation
• Bit stream manipulation

60
Video object-based coding

• Each Video Object in a Scene is Coded and
  Transmitted Separately

61
Data structure in visual part of MPEG-4
Visual object Sequence (VS)
Video Object (VO)
Video Object Layer (VOL) Still Object Layer (SOL)
SOL0
Group of Video Object Plane (GOV)
Video Object Plane (VOP)
62
MPEG-4 Video Decoder
63
MPEG-4 Video Decoder
64
MPEG-4 Video Decoder

• Scene description is necessary.
• A language called the Binary Format for Scenes
  (BIFS) based on the Virtual Reality Modeling
  Language (VRML) has been developed by MPEG for
  scene description.
• The decoder can use the scene description and
  additional input from the user to combine or
  compose the objects to reconstruct the original
  scene or create a variation on it.

65
MPEG-4 standard video tools
66
MPEG-4 standard video tools

• The glue that will bind these tools together is
  the MPEG-4 systems description language (MSDL)
  which will have several components, including
• Definitions for the interfaces between the coding
  tools,
• A mechanism to combine coding tools,
• A mechanism to download new tools.
• The MSDL will transmit to the decoder the bit
  stream and the manner in which the tools have to
  be used at the decoder to reconstruct the audio
  and video.

67
Shape coding tool

• Every VOP is coded macroblock by macroblock
• The bounding rectangle of the VOP is extended on
  the right-bottom side to multiples of 16x16
  blocks (macroblock).

68
Description of VOP
69
Shape Coding

• Binary alpha planes (shape information) are
  encoded by context-based arithmetic encoding
  (CAE).
• Gray scale alpha planes are encoded by motion
  compensated DCT similar to texture coding.
• An alpha plane is bounded by a rectangle that
  includes the shape of a VOP.
• Intra (I-VOPs and P-VOPs) or inter (P-VOPS and
  B-VOPs) shape coding at macro block level
• Inter motion compensated shape

70
Shape Coding (cont.)

• Motion vectors from texture motions or shape
  motion of neighboring blocks
• Coding modes
• Opaque
• Transparent
• No-update
• Intra Context based Arithmetic Encoding
• Inter Context based Arithmetic Encoding
• Lossless
• Lossy
• Motion compensation without update
• Sub-sampling by factor 2 or 4

71
Shape Coding Tools - CAE

• Context based Arithmetic Encoding (CAE) of the
  pixel ?
• Intra
• Inter

72
Shape Coding Tools - CAE

1. Compute a context number.
2. Index a probability table using the context
   number
3. Use the indexed probability to drive an
   arithmetic encoder.

73
Motion Compensated DCT

• A hybrid coding scheme used in H.261, H.263,
  MPEG-1 and MPEG-2
• Reduces the temporal/spatial correlation of video
  objects in two steps
• Temporal by motion compensation
• Spatial by Discrete Cosine Transform (DCT)
  transform coding.

74
Block Based Motion Compensation

• Models transversal motion of block in frames with
  a motion vector.
• Motion compensation is performed block by block.

75
Motion Compensation Tools
Motion compensated coding modes (I, B, P)
76
Motion Compensation Tools - Motion Computation
77
Motion Compensation Tools - Padding
Process of normal padding of a block
Process of padding of a VOP
Process of extended padding of a block
78
Padding
79
Motion estimation compensation
80
Block-based compatibility for VOP
81
Texture Coding Tools (1/3)

• The intra VOPs, as well as residual errors after
  motion compensated prediction, are coded using
  DCT on 8?8 blocks, in a manner similar to that
  employed in MPEG-1, MPEG-2, H.261, and H.263.
• Backward compatible to MPEG-1 and MPEG-2
• Efficient prediction of DC and AC coefficients
  for intra and inter-coded blocks can also be
  employed (this approach is not available in
  MPEG-1 and MPEG-2).

82
Texture Coding Tools (2/3)
83
Texture Coding Tools (3/3)
84
Adaptive DC prediction (texture coding)
Block (8x8)
85
Adaptive AC prediction (texture coding)
86
Coefficients Scanning (texture coding)

Alternate-Horizontal scan

Alternate-Vertical scan

zig-zag scan (H.263/MPEG-1)
87
Quantization (texture coding)

• Method 1 Similar to that of H.263
• Method 2 Similar to that of MPEG-2
• Optimized non-linear quantization of DC
  coefficients
• Quantization matrices and loading mechanism

88
Scalability

• Object scalability
• Achieved by the data structure used and the shape
  coding
• Temporal scalability
• Achieved by generalized scalability mechanism
• Spatial scalability
• Achieved by generalized scalable mechanism

89
Object scalability
90
Temporal scalability
91
Spatial scalability
92
Static Sprite Coding Tools (1/5)

• A sprite is an image composed of pixels belonging
  to a video object visible throughout a video
  segment.
• For instance, sprite generated from a panning
  sequence will contain all the visible pixels of
  the background object throughout the sequence.
• Portions of this background may not be visible in
  certain frames due to the occlusion of the
  foreground objects or the camera motion.
• Thus, the sprite contains all parts of the
  background that were at least visible once.

93
Static Sprite Coding Tools (2/5)

• The sprite encoding syntax can be utilized for
  the transmission of any still image to the
  decoder since a sprite is essentially just a
  still image.
• Static sprites are those that are directly copied
  (including appropriate warping and cropping) to
  generate a particular rendition of the sprite at
  a particular time instant.
• Sprite the panoramic view of the back ground.
• Improves the coding efficiency for video
  sequences with lots of revisiting backgrounds.

94
Static Sprite Coding Tools (3/5)
The main idea of static sprite coding technique
is to generate the reconstructed VOPs by directly
warping the quantized sprite using specified
motion parameters. Residual error between the
original VOP and the warped sprite is not added
to the warped sprite.
95
Static Sprite Coding Tools (4/5)

• Basic sprite (a large static image) coding
• Low latency sprite coding (sent hierarchically)
• Scalable sprite coding

96
Static Sprite Coding Tools (5/5)
Sprite
Foreground Object

Decoded Frame
97
Wavelet Tool (1/3)

• Discrete Wavelet Transform (DWT)
• Still image coding mode
• Separate DC band Coding
• Zero-Tree Scanning (ZTS) and Multiscale Zero-Tree
  Entropy (MZTE) coding

98
Wavelet Tool ZTS (2/3)

• A general architecture for zerotree coding.
• Provides tradeoffs between scalability,
  complexity and efficiency.

Zero Tree Scanning (ZTE)
99
Wavelet Tool Multiscale ZTE(3/3)
100
Arbitrary Shaped Wavelet Tool

• Shape-Adaptive Wavelet A more general case of
  rectangular wavelet.
• Zerotree Coding encodes only the interior nodes
• Downsampling the original shape to obtain the
  shapes in different resolutions.
• Using a shape coding scheme to include the shape
  information.

101
Shape adaptive wavelet coding - SNR Scalability
bitstream
30kbits
8kbits
5kbits
102
Shape adaptive wavelet coding - Spatial
Scalability
103
12-Bit Video Coding Tool

• Allows compression of video data with precision
  of up to 12-bits/pixel
• The syntax, semantics, and coding tools are
  extended
• bit-precision
• extended DC VLC tables
• extended quantization mechanism
• Insertion of marker bits to avoid start code
  emulations

104
MPEG-4 demo

• Coastguard
• Original 128 Kbits/sec
• Foreman
• Original 128 Kbits/sec
• Hall_monitor
• Original 128 Kbits/sec

105
Summary (1/2)

• MPEG-4
• The first content-based standard, addressing
  multimedia.
• Object-based representation of a scene.
• Both natural and synthetic.
• Compression many other features.
• Normative Decoder (i.e bitstream syntax and
  decoding algorithm).

106
Summary (2/2)

• MPEG-4 Visual
• Tool box approach, i.e. consists of many tools.
• One tool, one functionality.
• Set of tools Object.
• Set of objects Combination Profile.
• Conformance points on combination profiles.

107
SNHC Tools

• SNHC Synthetic/Natural Hybrid Coding
• An MPEG-4 subgroup working on the synthetic
  tools.
• Tools for Version 1
• Face Animation
• Dynamic 2D Meshes
• Scalable Textures

108
SNHC Tool Face Animation

• Face an object capable of facial geometry ready
  for rendering and animation
• A synthetic representation of a human face
• visual manifestations of speech are intelligible
• facial expressions allow recognition of moods
• specified by the parameters in the incoming
  bitstream

109
SNHC Tool Face Animation
Defines a specific face via - 3D feature points -
3D mesh/scene graph - Face Texture - Face
Animation Table
110
SNHC Tool Dynamic Meshes

• Specifically refers to triangular meshes
• Tessellation of a 2D visual object plane into a
  connection of triangular patches
• No addition and deletion of nodes, i.e. no change
  in topology.
• Used for video object
• manipulation

111
(No Transcript)
112
SNHC Tool Dynamic Meshes
113
SNHC Tool Dynamic Meshes
114
Conclusions

• Refer to exercise for further information
• Other search strategies
• Motion JPEG (MJPEG)
• DV
• Already used for high quality video coding
• Motion JPEG2000 (MJPEG2000)
• JPEG 2000 for video
• Collaborative or Competitive ?
• Compression ratio may be higher than MPEG-1/2
• Symmetric algorithm, however
• Part III of JPEG2000 standard
• original 40 53 67 80 100

115
Conclusions

• Standard is usually not the best
• Demo
• Avxing
• Window media video

116
Acknowledgement

• I would like to thank Prof. Tihao Chiang
  of National Chiao-Tung University and his
  ex-colleagues Dr. Ya-Qin Zhang, Iraj Sodagar, and
  Sriram Sethuraman. Professor Chiang generously
  gave me his transparency master for MPEG-4
  tutorial and this helped me very much in
  preparing this lecture.
