Title: MuonGeoModel and MuonSurfaces


1

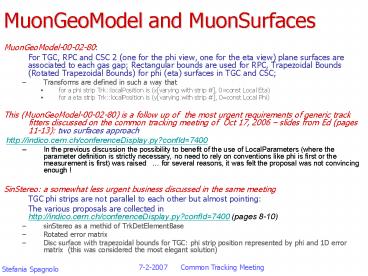

MuonGeoModel and MuonSurfaces
  • MuonGeoModel-00-02-80
  • For TGC, RPC and CSC 2 (one for the phi view,
    one for the eta view) plane surfaces are
    associated to each gas gap Rectangular bounds
    are used for RPC, Trapezoidal Bounds (Rotated
    Trapezoidal Bounds) for phi (eta) surfaces in TGC
    and CSC
  • Transforms are defined in such a way that
  • for a phi strip TrklocalPosition is (xvarying
    with strip , 0const Local Eta)
  • for a eta strip TrklocalPosition is (yvarying
    with strip , 0const Local Phi)
  • This (MuonGeoModel-00-02-80) is a follow up of
    the most urgent requirements of generic track
    fitters discussed on the common tracking meeting
    of Oct 17, 2006 slides from Ed (pages 11-13)
    two surfaces approach
  • http//indico.cern.ch/conferenceDisplay.py?confId
    7400
  • In the previous discussion the possibility to
    benefit of the use of LocalParameters (where the
    parameter definition is strictly necessary, no
    need to rely on conventions like phi is first or
    the measurement is first) was raised for
    several reasons, it was felt the proposal was not
    convincing enough !
  • SinStereo a somewhat less urgent business
    discussed in the same meeting
  • TGC phi strips are not parallel to each other
    but almost pointing
  • The various proposals are collected in
    http//indico.cern.ch/conferenceDisplay.py?confId
    7400 (pages 8-10)
  • sinStereo as a methid of TrkDetElementBase
  • Rotated error matrix
  • Disc surface with trapezoidal bounds for TGC phi
    strip position represented by phi and 1D error
    matrix (this was considered the most elegant
    solution)

2
MuonGeoModel and MuonSurfaces
  • Ive been trying to move for TGC from plane
    surfaces with trapezoidal bounds to Disc Surfaces
    with trapezoidal bounds
  • The difficulties are
  • Disc surfaces have never really been used as
    surfaces associated to detector elements
    (however, they are used a lot in the description
    of cylinders in the Muon Tracking Geometry by
    Sharka sw needed for holes-on-track, for
    example)
  • Some extra development is needed in DiscSurface
    to allow the Disc reference point (center of the
    cylindrical symmetry) to be different that the
    center of the surface
  • Some extra discussion is needed because the
    LocalPosition of a phi strip will be given by
    (Rconstant, phivarying with strip ) i.e. the
    measurent will again come in second slot a
    preliminary collection of options and
    considerations (by Ed, Andy, Markus, Wolfgang)
  • modifying the order of local coordinates for
    discs (R,phi)-gt(phi,R) looks un-natural and it
    would impact on a lot of central tracking
    software
  • Working with LocalPositions for TGC in the form
    (R, phi) will need detector dependent new code
    for ROT creators and local-pattern-recognition
  • A new kind of surface trapezoidal surface,
    meeting just from the design the requirements and
    constraints coming from really-trapezoidal
    surfaces ???
