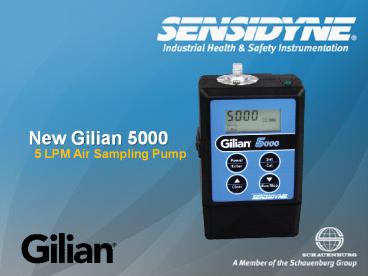

New Gilian 5000

1
New Gilian 5000

• 5 LPM Air Sampling Pump

2
Gilian 5000 Features

• Our most powerful 5 LPM pump
• Digital flow display with 30-day calibration
• Meets EN 1232 requirements
• Intrinsically safe
• Fast charge, 4 hours or less
• Memory free NiMH battery pack
• Intuitive 4-key operation

3
Wide Flow Rate Range

• 1000 to 5000 cc/min, constant flow
• 20 to 750 cc/min with LFCP adapter
• Digital Flow Display

4
Intuitive Keypad Operation

• Easy operation
• No tools, 4-key format
• Similar to Gilian 3500

5
Highest Back Pressure Specs

• 5000 cc/min...to 20 inches H2O
• 4000 cc/min...to 30 inches H2O
• 3000 cc/minto 50 inches H2O
• 2000 cc/minto 60 inches H2O
• 1000 c/min..to 70 inches H2O

6
Compare at 2 LPM

• Gilian 5000
• Gilian 3500
• GilAir-3
• GilAir-5
• HFS-513

• 60 inches H2O
• 35 inches H2O
• 20 inches H2O
• 37 inches H2O
• 40 inches H2O
• GilAir-3 spec is 20 inches at 2.5 LPM

7
Compare Also at 2 LPM

• Gilian 5000
• Casella APEX Pro
• SKC 224-44XR
• SKC AirChek XR-5000
• MSA Escort Elf
• TSI SP-350
• Buck VSS-5

• 60 inches H2O
• 31.5 inches H2O
• 40 inches H2O
• 50 inches H2O
• 30 inches H2O
• 29 inches H2O
• 60 inches H2O

8
Compare at 5 LPM

• Gilian 5000
• GilAir-5
• HFS-513
• SKC 224-44XR
• SKC AirChek XR-5000
• Casella APEX Pro
• Buck VSS-5

• 20 inches H2O
• 10 inches H2O
• 15 inches H2O
• N/A
• 10 inches H2O
• Free flow
• 2 inches H2O

9
Operation of the Gilian 5000
10
Power Up/Ready Mode
11
Taking a Sample
12
Key Pad Lock-out
13
Setting the Flow Rate
14
Displayed Flow Calibration
15
Calibration Set Up
16
Low Flow Sampling

• Set Flow Rate at 1500 cc/min
• Attach adapter with arrow pointing toward the
  pump
• Can be attached in-line or fixed mount
• Use holder with needle valve for constant
  pressure/multi-flow sampling

17
Calibration Using Low Flow
18
Gilian 5000 Programmability

• Start-Stop Programmable through Set/Cal key
• Up to four events of varying duration
• Can also program a duty cycle for extended time
  sampling
• Can also activate and deactivate certain
  functions like auto re-start and instant start.

19
Programming

• The Program Mode is accessed by pressing the
  set/Cal key three times.
• A program is activated by pressing the up arrow
  to display a 1
• To create a new program press Enter, and enter
  values for the following parameters
• 1) A delayed start
• 2) Up to four run times of various duration
• 3) Up to four delay-run times to determine holds
  between runs
• 4) Number of cycles

20
Options

• Options are accessed by pressing the Set/Cal key
  four times to display OPT
• Three Options may be activated by pressing the UP
  arrow to display a 1
• 1) Disable auto re-start
• 2) Enable auto lock
• 3) Enable auto start (by-passes the Ready mode)

21
Gilian 5000

• Our most powerful personal sampling pump from the
  world leader.
