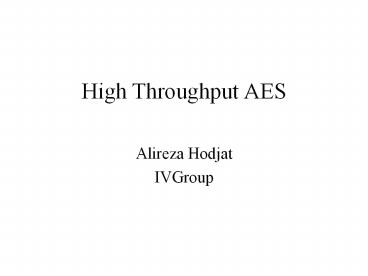

High Throughput AES

• Alireza Hodjat
• IVGroup

2
The AES Algorithm
3
Outer-round Pipelining
4
Inner- and Outer-round Pipelining
5
The Highest Possible Throughput

• The choice of 128-bit key only
• Completely unrolled loop
• Pipelined
• Between each round (Outer-round)
• Inside each round (Inner-round)
• This causes huge area consumption.

6
Area Optimization

• Area optimization inside each round
• Two different techniques
• Resource sharing
• Re-timing
• Break the critical path and perform the algorithm
  in multiple clock cycles
• Critical path Substitution
• Area-delay trade-off

7
Sbox Area-Delay Trade-off

• Direct Implementation Look-up table
• Indirect Implementation GF(24)
• Wolkerstorfer Design
• Patricks codes


8
AES Encrypt Datapath
9
Key Scheduling Datapath
10
Design 1 Straight Forward
1 Round
11
Design 2 Use re-timing for Sbox
1 Round
12
Design 3 Use resource sharing
1 Round
13
Design 4 Use resource sharing and re-timing
for Sbox
5 Cycle
1 Round
5 Cycle
5 Cycle
14
Design 5 Resource sharing and pipelining and
re-timing for Sbox
1 Round
15
Inner-Round Pipeline for Design 5
16
Performance Estimation
