Stereoscopic Imaging for Slow-Moving Autonomous Vehicle

1

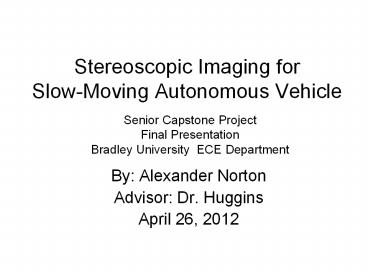

Stereoscopic Imaging for Slow-Moving Autonomous
Vehicle
Senior Capstone Project Final Presentation
Bradley University ECE Department

• By Alexander Norton
• Advisor Dr. Huggins
• April 26, 2012

2
Presentation Outline

• Project Overview
• Stereoscopic Imaging Overview
• Previous Work
• Functional and System Description
• Completed Work
• Results
• Suggestions for Future Work

3
Project Overview

• The goal of this project was to design a
  stereoscopic imaging system using two low cost
  digital cameras that could calculate depth
  information from sets of images which could then
  be used to navigate an autonomous vehicle
• Two modes of operation calibration mode and run
  mode

4
Stereoscopic Imaging Overview

• The use of two horizontally aligned cameras
  separated by a fixed distance that take a pair of
  images at the same time
• Calibrate cameras so they act like pin hole
  cameras
• Determine corresponding pixel groups
• Find the disparity (offset in the x coordinate)
  between the corresponding pixel groups.
• Use triangulation to find distance to pixel
  groups
• This depth information can be used to create a
  3-D terrain map

5
Previous Work

• BirdTrak (Brian Crombie and Matt Zivney, 2003)
• Bradley Rover(Steve Goggins, Rob Scherbinski,
  Pete Lange, 2005)
• NavBot (Adam Beach, Nick Wlaznik, 2007)
• SVAN (John Hessling, 2010)

6
System Description

• System block diagram
• Subsystem block diagrams
• Cameras
• Computer
• Software
• Modes of operation
• Calibration mode
• Run mode

7
System Block Diagram
8
Cameras Subsystem
9
Computer Subsystem
10
Calibration Mode
11
Run Mode
12
Necessity of Calibration

• Produces the rotation and translation matrices
  needed to rectify sets of images
• Rectification makes the stereo correspondence
  more accurate and more efficient
• Failing to calibrate the cameras is the reason
  for why past groups have failed to get accurate
  results and useful system.

13
Completed Work

• Calibration mode software
• Input is a list of sets of images of a
  chessboard, and the number of corners along the
  length and width of the chessboard
• Read in the left and right image pairs, find the
  chessboard corners, and set object and image
  points for the images where all the chessboards
  could be found
• Given this list of determined points on the
  chessboard images, the code calls
  stereoCalibrate() to calibrate the cameras

14
Calibration Mode Software

• This calibration yields the camera matrix M and
  the distortion vector D for the two cameras it
  also yields the rotation matrix R, the
  translation vector T, the essential matrix E, and
  the fundamental matrix F
• The accuracy of the calibration is assessed by
  the software using epipolar geometry.

15
Calibration Mode Software

• The code then moves on to computing the
  rectification maps using stereoRectify()
• The rectification maps are used when processing
  sets of images obtained in run mode

16
Calibration Mode Software Matrices

• Rotation matrix R, Translation Vector T
  extrinsic matrices, put the right camera in the
  same plane as the left camera, which makes the
  two image planes coplanar
• Fundamental matrix F intrinsic matrix, relates
  the points on the image plane of one camera in
  pixels to the points on the image plane of the
  other camera in pixels

17
Calibration Mode Software Matrices

• Essential Matrix E intrinsic matrix, relates the
  physical location of the point P as seen by the
  left camera to the location of the same point as
  seen by the right camera
• Camera matrix M, distortion matrix D intrinsic
  matrices, calculated and used within the function

18
Completed Work

• Run Mode Software
• Uses the matrices obtained from calibration
• Rectifies each set of images to correct for
  distortions
• Computes and displays the disparity map

19
Calibration Mode Results
Output showing found chessboard corners
20
Calibration Mode Results
Output rectified chessboard images
21
Calibration Mode Results
Command window showing calibration results
22
Run Mode Results
Output rectified set of images after cameras have
been calibrated
23
Run Mode Results
Output disparity map of rectified set of images
24
Theoretical Run Mode Results
One image from a set of sample images
Disparity map obtained from the set of sample
images
25
Results

• Wrote working code using OpenCV libraries and
  functions
• Successfully grab images
• Some outputs of calibration are correct
• Unable to accurately compute the disparity map of
  an image with a simple target in front of a plain
  background.

26
Possible Errors

• Incorrect calibration results
• Cameras could have internal flaws that cannot be
  corrected with sufficient accuracy.
• Correspondence calculation could have errors.

27
Suggestions for Future Work

• Investigate the mathematics underlying the OpenCV
  functions
• Develop methods to find and correct for errors
  that occur as a result of incorrect calibrations
  and/or correspondence computations.

28
Questions??
