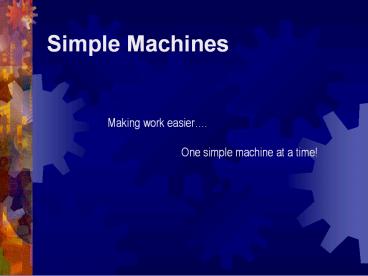

Simple Machines

1
Simple Machines
Making work easier. One simple machine at a
time!
2
What is a Simple Machine?

• A simple machine has few or no moving parts.
• A simple machine is a machine with only one kind
  of movement.
• Simple machines make work easier.
• There is usually a trade off or hidden cost
  that comes with the reduction in effort.

3
The Six Simple Machines
pulley
lever
inclined plane
http//cnx.org/content/m23853/latest/
http//www.the-office.com/summerlift/pulleybasics.
htm
wheel axle
screw
http//www.schnauzerlover.com/ramp.htm
wedge
http//www.g9toengineering.com/resources/simplemac
hines.htm
http//makeitgo.wikispaces.com/wedges
http//en.wikipedia.org/wiki/Ferris_wheel
4
Levers

• Levers have a rigid beam with a fulcrum and lever
  arm
• Can you find 12 levers?
• Placing the load near the fulcrum and the effort
  far from the fulcrum allows you the greatest
  mechanical advantage, but is there a hidden cost?

You must lift the load a greater distance!
5
Pulleys

• A pulley is made up of a rope or cable that is
  placed over a grooved wheel.
• Can you find 4 pulleys?
• Pulleys can provide a mechanical advantage,
  directional advantage, or both but is there a
  trade off for requiring less effort?

There is an increase in the distance the effort
needs to travel amount of rope Hidden cost
Distance
6
Inclined Planes

• Inclined planes are flat surfaces that are higher
  on one end.
• Can you find 6?
• They reduce the effort needed to lift a load.

The trade off for reduced effort is that the load
needs to move a longer distance than if it were
lifted straight up.
7
Screws

• A screw is an inclined plane wrapped around an
  axis.
• Can you find 7?
• Screws can allow you to go a steep distance
  gradually, but is there a hidden cost?

You must travel a greater distance!
8
Wedges

• Wedges are made up of two inclined planes joined
  back to back. Wedges are used to split things.
• Can you find 4?
• Double wedge B has the greater mechanical
  advantage, is there a hidden cost?

Double wedge B has the greater mechanical
advantage.
You will have to drive it in a greater distance
in order to create the wedge!
9
Wheels and Axles

• The axle is a rod that goes through the wheel
  which allows the wheel to turn
• Can you find 8?
•  The larger the wheel, the greater the mechanical
  advantage. What could the hidden cost be?

The larger the wheel, the greater the greater
the distance it must travel.
10
Simple Machines

• Simple Machines can be put together in different
  ways to make complex machinery.

11
Sum it up!

• Typically, machines are intended to reduce the
  amount of force required to move an object.
• There is always, however, a trade off.
• Distance!
• Remember that simple machines make work
  easier.but we must still work!
