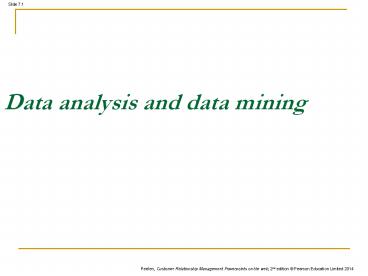

Data analysis and data mining

1
Data analysis and data mining
2
DATA ANALYSIS

• Successful data analysis requires progressing
  through the different stages in the analysis
  process.
• Problem formulation identify it!
• Preparations
• Final analysis using statistical techniques or
  data mining techniques.
• Visualisation or reporting

3
THE PROCESS FOR DATA MINING
4
consumer insight lies at the heart of all
marketing and communication strategy,and
that consumers are multi-faceted and complex
creatures,and that true consumer insight comes
only with a 360 view.

• the 360 degree view

5

• Data
• Data are any facts, numbers, or text that can be
  processed by a computer. Today, organizations are
  accumulating vast and growing amounts of data in
  different formats and different databases. This
  includes
• operational or transactional data such as, sales,
  cost, inventory, payroll, and accounting
• nonoperational data, such as industry sales,
  forecast data, and macro economic data
• meta data - data about the data itself, such as
  logical database design or data dictionary
  definitions

6

• Information
• The patterns, associations, or relationships
  among all this data can provide information. For
  example, analysis of retail point of sale
  transaction data can yield information on which
  products are selling and when.
• Knowledge
• Information can be converted into knowledge about
  historical patterns and future trends. For
  example, summary information on retail
  supermarket sales can be analyzed in light of
  promotional efforts to provide knowledge of
  consumer buying behavior. Thus, a manufacturer or
  retailer could determine which items are most
  susceptible to promotional efforts.

7

• Data Warehouses
• Dramatic advances in data capture, processing
  power, data transmission, and storage
  capabilities are enabling organizations to
  integrate their various databases into data
  warehouses.
• Data warehousing is defined as a process of
  centralized data management and retrieval.
• Data warehousing represents an ideal vision of
  maintaining a central repository-STORAGE -of all
  organizational data. Centralization of data is
  needed to maximize user access and analysis.
• Dramatic technological advances are making this
  vision a reality for many companies. And, equally
  dramatic advances in data analysis software are
  allowing users to access this data freely.
• The data analysis software is what supports data
  mining.

8
Data Mining

• (sometimes called data or knowledge discovery) is
  the process of analyzing data from different
  perspectives and summarizing it into useful
  information - information that can be used to
  increase revenue, cuts costs, or both.
• Data mining software is one of a number of
  analytical tools for analyzing data. It allows
  users to analyze data from many different
  dimensions or angles, categorize it, and
  summarize the relationships identified.
• Technically, data mining is the process of
  finding correlations or patterns among dozens of
  fields in large relational databases.
• Extremely large datasets
• Discovery of the non-obvious
• Useful knowledge that can improve processes
• Can not be done manually.

9
Data Mining (cont.)
10
Data Mining (cont.)

• Data Mining is a step of Knowledge Discovery in
  Databases (KDD) Process
• Data Warehousing
• Data Selection
• Data Preprocessing
• Data Transformation
• Data Mining
• Interpretation/Evaluation
• Data Mining is sometimes referred to as KDD and
  DM and KDD tend to be used as synonyms

11
Data Mining Evaluation
12
Data Mining is Not

• Data warehousing
• SQL / Ad Hoc Queries / Reporting
• Software Agents
• Online Analytical Processing (OLAP)
• Data Visualization

13

• What can data mining do?
• Data mining is primarily used today by companies
  with a strong consumer focus - retail, financial,
  communication, and marketing organizations.
• It enables these companies to determine
  relationships among "internal" factors such as
  price, product positioning, or staff skills, and
  "external" factors such as economic indicators,
  competition, and customer demographics.
• And, it enables them to determine the impact on
  sales, customer satisfaction, and corporate
  profits.
• Finally, it enables them to "drill down" into
  summary information to view detail transactional
  data.
• With data mining, a retailer could use
  point-of-sale records of customer purchases to
  send targeted promotions based on an individual's
  purchase history.
• By mining demographic data from comment or
  warranty cards, the retailer could develop
  products and promotions to appeal to specific
  customer segments.

14

• For example, Blockbuster Entertainment mines its
  video rental history database to recommend
  rentals to individual customers. American Express
  can suggest products to its cardholders based on
  analysis of their monthly expenditures.
• WalMart is pioneering massive data mining to
  transform its supplier relationships. WalMart
  captures point-of-sale transactions from over
  2,900 stores in 6 countries and continuously
  transmits this data to its massive 7.5
  terabyte Teradata data warehouse. WalMart allows
  more than 3,500 suppliers, to access data on
  their products and perform data analyses.
• These suppliers use this data to identify
  customer buying patterns at the store display
  level. They use this information to manage local
  store inventory and identify new merchandising
  opportunities. In 1995, WalMart computers
  processed over 1 million complex data queries.

15

• Data mining consists of five major elements
• 1. Extract, transform, and load transaction data
  onto the data warehouse system.
• 2. Store and manage the data in a
  multidimensional database system.
• 3. Provide data access to business analysts and
  information technology professionals.
• 4. Analyze the data by application software.
• 5. Present the data in a useful format, such as a
  graph or table.

16
Terms

• Web mining searching and processing data on the
  internet is referred to this.
• three types of webmining are listed as
• Web structure mining
• Web usage mining
• Web content mining

17
Types

• web structure mining places websites and the
  pages or items that contain in a network of
  connected websites.
• Web usage mining focuses on browsing behavior
• Web-content mining is all about discovering
  useful content on the worldwide web.

18
(No Transcript)
19
Data Mining Motivation

• Changes in the Business Environment
• Customers becoming more demanding
• Markets are saturated
• Databases today are huge
• More than 1,000,000 entities/records/rows
• From 10 to 10,000 fields/attributes/variables
• Gigabytes and terabytes
• Databases a growing at an unprecedented rate
• Decisions must be made rapidly
• Decisions must be made with maximum knowledge

20
Data Mining Motivation

• The key in business is to know something that
  nobody else knows.
• Aristotle Onassis
• To understand is to perceive patterns.
• Sir Isaiah Berlin

21
Data Mining Applications
22
Data Mining ApplicationsRetail

• Performing basket analysis
• Which items customers tend to purchase together.
  This knowledge can improve stocking, store layout
  strategies, and promotions.
• Sales forecasting
• Examining time-based patterns helps retailers
  make stocking decisions. If a customer purchases
  an item today, when are they likely to purchase a
  complementary item?
• Database marketing
• Retailers can develop profiles of customers with
  certain behaviors, for example, those who
  purchase designer labels clothing or those who
  attend sales. This information can be used to
  focus costeffective promotions.
• Merchandise planning and allocation
• When retailers add new stores, they can improve
  merchandise planning and allocation by examining
  patterns in stores with similar demographic
  characteristics. Retailers can also use data
  mining to determine the ideal layout for a
  specific store.

23
SALES FORECASTING
24
(No Transcript)
25
Data Mining ApplicationsBanking

• Card marketing
• By identifying customer segments, card issuers
  and acquirers can improve profitability with more
  effective acquisition and retention programs,
  targeted product development, and customized
  pricing.
• Cardholder pricing and profitability
• Card issuers can take advantage of data mining
  technology to price their products so as to
  maximize profit and minimize loss of customers.
  Includes risk-based pricing.
• Fraud detection
• Fraud is enormously costly. By analyzing past
  transactions that were later determined to be
  fraudulent, banks can identify patterns.
• Predictive life-cycle management
• DM helps banks predict each customers lifetime
  value and to service each segment appropriately
  (for example, offering special deals and
  discounts).

26
Data Mining ApplicationsTelecommunication

• Call detail record analysis
• Telecommunication companies accumulate detailed
  call records. By identifying customer segments
  with similar use patterns, the companies can
  develop attractive pricing and feature
  promotions.
• Customer loyalty
• Some customers repeatedly switch providers, or
  churn, to take advantage of attractive
  incentives by competing companies. The companies
  can use DM to identify the characteristics of
  customers who are likely to remain loyal once
  they switch, thus enabling the companies to
  target their spending on customers who will
  produce the most profit.

27
Data Mining ApplicationsOther Applications

• Customer segmentation
• All industries can take advantage of DM to
  discover discrete segments in their customer
  bases by considering additional variables beyond
  traditional analysis.
• Manufacturing
• Through choice boards, manufacturers are
  beginning to customize products for customers
  therefore they must be able to predict which
  features should be bundled to meet customer
  demand.
• Warranties
• Manufacturers need to predict the number of
  customers who will submit warranty claims and the
  average cost of those claims.
• Frequent flier incentives
• Airlines can identify groups of customers that
  can be given incentives to fly more.

28
Data Mining in CRMCustomer Life Cycle

• Customer Life Cycle
• The stages in the relationship between a customer
  and a business
• Key stages in the customer lifecycle
• Prospects people who are not yet customers but
  are in the target market
• Responders prospects who show an interest in a
  product or service
• Active Customers people who are currently using
  the product or service
• Former Customers may be bad customers who did
  not pay their bills or who incurred high costs
• Its important to know life cycle events (e.g.
  retirement)

29
Data Mining in CRMCustomer Life Cycle

• What marketers want Increasing customer revenue
  and customer profitability
• Up-sell
• Cross-sell
• Keeping the customers for a longer period of time
• Solution Applying data mining

30
THE DIFFERENCE

• upsell is to get the customer to spend more money
  buy a more expensive model of the same type of
  product, or add features / warranties that relate
  to the product in question.
• A cross-sell is to get the customer to spend more
  money buy adding more products from other
  categories than the product being viewed or
  purchased.

L
31

• heres no stock way to present product
  recommendations. Common labels for
  recommendations are
• Recommended productsYou may also
  likeCustomers who bought X also
  boughtCustomers who viewed X also
  viewedFrequently bought togetherStuff you
  need (Radio Shack, for accessories)Stuff you
  may want (Radio Shack, for items in other
  categories)More from this (category, brand,
  author, artist)Looks hot withComplete the
  look

32
(No Transcript)
33
Data Mining in CRM

• DM helps to
• Determine the behavior surrounding a particular
  lifecycle event
• Find other people in similar life stages and
  determine which customers are following similar
  behavior patterns

34
Data Mining in CRM (cont.)
Data Warehouse
Data Mining
Customer Profile
Customer Life Cycle Info.
Campaign Management
35
Data Mining Techniques
36

• Predictive modelling leverages statistics to
  predict outcomes
•  Most often the event one wants to predict is in
  the future, but predictive modelling can be
  applied to any type of unknown event, regardless
  of when it occurred. For example, predictive
  models are often used to detect crimes and
  identify suspects, after the crime has taken
  place.
• In many cases the model is chosen on the basis
  of detection theory to try to guess the
  probability of an outcome given a set amount of
  input data, for example given an email
  determining how likely that it is spam.

37

• A decision tree is a decision support tool that
  uses a tree-like graph or model of decisions and
  their possible consequences, includingchance event
  outcomes, resource costs, and utility. It is one
  way to display an algorithm.
• Decision trees are commonly used in operations
  research, specifically in decision analysis, to
  help identify a strategy most likely to reach
  agoal.

38
Predictive Data Mining
39
Prediction
Honest has round eyes and a smile
40
Decision Trees

• Data

height hair eyes class short blond blue A tall blo
nd brown B tall red blue A short dark blue B tall
dark blue B tall blond blue A tall dark brown B sh
ort blond brown B
41
Decision Trees (cont.)
hair
dark
blond
red
Does not completely classify blonde-haired
people. More work is required
Completely classifies dark-haired and red-haired
people
42
Decision Trees (cont.)
hair
dark
blond
red
Decision tree is complete because 1. All 8 cases
appear at nodes 2. At each node, all cases are
in the same class (A or B)
eye
blue
brown
tall B short B
43
Decision TreesLearned Predictive Rules
44
Decision TreesAnother Example
45
Rule Induction

• Try to find rules of the form
• IF ltleft-hand-sidegt THEN ltright-hand-sidegt
• This is the reverse of a rule-based agent, where
  the rules are given and the agent must act. Here
  the actions are given and we have to discover the
  rules!
• Prevalence probability that LHS and RHS occur
  together (sometimes called support factor,
  leverage or lift)
• Predictability probability of RHS given LHS
  (sometimes called confidence or strength)

46

• In data mining, association rules are useful for
  analyzing and predicting customer behavior. They
  play an important part in shopping basket data
  analysis, product clustering, catalog design and
  store layout.
• Association rules are if/then statements that
  help uncover relationships between seemingly
  unrelated data in a relational database or other
  information repository. An example of an
  association rule would be
• "If a customer buys a dozen eggs, he is 80
  likely to also purchase milk.

47
Use of Rule Associations

• Coupons, discounts
• Dont give discounts on 2 items that are
  frequently bought together. Use the discount on
  1 to pull the other
• Product placement
• Offer correlated products to the customer at the
  same time. Increases sales
• Timing of cross-marketing
• Send camcorder offer to VCR purchasers 2-3 months
  after VCR purchase
• Discovery of patterns
• People who bought X, Y and Z (but not any pair)
  bought W over half the time

48
Product placement
49
(No Transcript)
50
GOADANA
51
Clustering

• The art of finding groups in data
• Objective gather items from a database into sets
  according to (unknown) common characteristics
• Much more difficult than classification since the
  classes are not known in advance (no training)
• Technique unsupervised learning

52
The K-Means Clustering Method
10
9
8
7
6
5
Update the cluster means
Assign each of the objects to most similar center
4
3
2
1
0
0
1
2
3
4
5
6
7
8
9
10
reassign
reassign
K2 Arbitrarily choose K objects as initial
cluster center
Update the cluster means
53
Chapter 8 customer segmentation

• Segmentation is a research process in which the
  market is divided up into homogeneous customer
  groups that respond in the same way to marketing
  stimuli from the supplier.

54
CUSTOMER SEGMENTATION
55
Bonomo and Shapiro (1983) B2B

• 5 criteria
• Demographic factors industrial classification
  company size and location.
• Operating variables technology, user status,
  customer capabilities,
• Purchasing approaches how purchasing is
  organised, ..
• Situational factors involves the urgency, the
  specific application and the order size.
• Personal characteristics the values and norms of
  the employees working for the prospect or
  customer, their general loyalty and attitude to
  risk.

56
Segmentation technique

• Markets can be segmented in a large number of
  ways.
• the guideliness of the segmentation solution
  process
• Measurable the size, purchasing power and
  characteristics of the segment can be measured,
• Substantial the segments are large and
  profitable enough to serve.
• Accessible the segments can be reached and
  served effectivelly.
• Differentiable the segments are conceptually
  distinguishable and respond differently to
  different marketing stimuli.
• Actionable effective programs can be formulated
  for attracting and serving the segments.

57
Segmentation research used in compiling the list

• RFM- recency frequency monetary value
• CHAID- chi squared automated interaction
  detection
• CART- classification and regression trees

58
RFM

• It was developed first.
• Developed to identify the most attractive
  prospects.
• Focusing on the frequency and the most recent
  transaction date in addition to the annual amount
  spent, produces better selections and higher
  response percentages.

59
CHAID and CART

• A Chaid analysis produces a tree diagram.
• At the top of the diagram, the response to the
  marketing campaigns are shown for the entire
  customer database. (8.2)
• The organisation has 240.000 customers of which
  an average of 4.36 responds to a marketing
  activity. On the level below these customers are
  split according to the most discriminating
  significant segmentation criterion.

60
CART

• it is often compared to CHAID.
• Cart is not limited to numbers of variables and
  classes that can be included.

61

• Customer
• Organizational market

62
(No Transcript)
63
(No Transcript)
64
Not all customers are the same
Highly profitable customer Mixed-profitability customer Losing customer
Highly profitable product
Profitable product
Mixed-profitability product _
Losing product _ _
65
Chapter 9

• Retention and cross sell analyses

66
Retention

• Holding on the customers.
• Companies must arrive at definitions of former
  and current customers.
• Does someone become a departing customer at the
  moment they no longer buy a certain product.
• a consumer for example stop buying fresh meat at
  a particular market but continues to shop for a
  variety of packaged goods.

67
Customer Retention Strategies

• Welcome
• Reliability
• Responsiveness
• Recognition
• Personalization
• Reward Strategies

68
A welcome strategy

• The organizations appreciation for the
  initiation of a relationship.
• Creating a delightful surprise, making a good
  first impression
• First touch additional customer information
• Reassure the buyers that they have made the
  correct choices.
• Treat like a first date. Dont overdo it!

69
Reliability

• The organization can repeat the exchange time
  and time again with the same satisfying results.
• Keep promise
• Ensure consistent quality
• Continuous promotion is still the key.

70
Responsiveness

• The organization shows customers it really cares
  about their needs and feelings.
• Loyal employees create loyal customers. Internal
  marketing.
• Customer-contacted employees should have the
  authority as well as the responsibility for date
  to date operational activities and CRM decision.

71
Recognition

• Special attention or appreciation that identifies
  someone as having been known before.
• People respond to recognition.
• Recognition and appreciation help maintain and
  reinforce relationships.

72
Personalization

• Use CRM system to tailor promotions and products
  to the specific customers.
• Offer engine take customer data after it is
  analyzed and applies it to create the offer or
  message that is appropriate to the individual
  customer. Ex., My site, Click stream analysis,
  free ride, etc.

73
Access strategy

• Identify how customers will be able to interact
  with the organization.
• General contact, product return, technical
  report, service representative, change a mailing
  address
• Is the access quick and easy?

74
A Communication process
75
Cross-sell

• This is all about offering your customer items
  that can complement their purchase.  A retailer
  could offer software such as Microsoft Office, or
  perhaps a keyboard.
• Think about when you are on Amazon.com and you
  see Best Value with the book you selected (in
  the below example the book, The Time Travelers
  Wife) and get another book (A Long, Long Time)
  at a bundled price a great cross-sell. Amazon
  also uses, Customers Who Bought This Item Also
  Bought which is another cross-selling
  opportunity.

76
Upsell vs cross sell

• An upsell occurs during a purchase, where the
  customer is made aware of the ability to get even
  more of what he or she was looking for. For
  example, you can book an economy class trip to
  NEW YORK for 750, but for an additional 200,
  you can upgrade to business class and get more
  comfort.
• A cross sell occurs either during or immediately
  after a purchase, where the customer is made
  aware of ways to accessorize the deal. For
  example, now that youve booked your trip to NEW
  YORK, you can, for an additional 350, get four
  nights at an upscale hotel on the beach along
  with a rental car.

77
UPSELL

• Suggesting your customer buys the more expensive
  model of the same product or service or that
  they add a feature that would make it more
  expensive. With upsell youre suggesting they pay
  more in exchange for a better product or service.
• For example
• Buying a 42 TV instead of a 40
• Upgrading from economy to business class for a
  flight
• Adding an extended warranty

78
examples of Common Upselling Techniques

• Jewelry Recommending a higher-quality and more
  expensive brand of the same product
• Fast food Asking a customer if they would like
  to super size their meal
• Fine dining Asking a customer if they would like
  a higher quality alcohol instead
• Computers Asking a customer if they would like
  the same laptop with more hard drive space or
  more RAM
• Electronics Asking customers if they would like
  an extended warranty plan to go along with their
  purchase
• Electronics Asking a customer if they would like
  to upgrade from a 40 television to a 42
  television
• SaaS Providing website customers a checkout
  option whereby they can pay for an entire years
  worth of service upfront at a lower per-month
  cost instead of signing up for the typical
  month-to-month service
• Travel Asking a customer if they would like to
  upgrade from coach to first-class
• Night clubs Asking a customer if they would like
  to upgrade their cover charge to VIP level.

79
(No Transcript)
80
(No Transcript)
81
(No Transcript)
82
THE ONLINE ENVIRONMENT

• CHAPTER 15

83
WWW-WORLD WIDE WEB

• Web 1.0
• Very first it was read only medium.
• Webpages
• Web 2.0
• Web platforms, geocities, wordpress, facebook,
• People can share their ideas, photos, videos,
  ideas, status,

84
(No Transcript)
85
Google adwords

• Fikrimuhim.

86

• Lego factory story. Page 304305

87
Search engines

• Organic
