Title: Bar Graphs


1

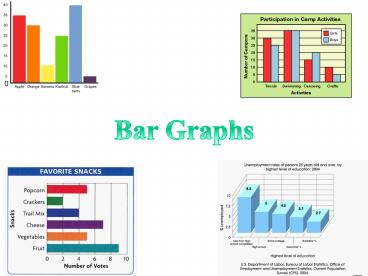

Bar Graphs
2
  • DEFINITION
  • a BAR GRAPH is a diagram in which separate but
    related items are represented by rectangular
    shapes called bars
  • the horizontal axis usually represents the
    independent variable (manipulated variable)
  • the vertical axis usually represents the
    dependent variable (responding variable)

3
  • EXAMPLE
  • Absences today
  • 5th grade 7
  • 6th grade 12
  • 7th grade 4
  • Put this in a bar graph

4
Step One Draw your axis
5
Step Two label your axis
15
10
of Absences
5
5th 6th 7th
Grade Level
6
Step Three plot your data
15
10
of Absences
5
5th 6th 7th
Grade Level
7
Step Four Fill in your bars
15
10
of Absences
5
5th 6th 7th
Grade Level
8
Step Five What is Missing? TITLE YOUR
GRAPH!
15
10
of Absences
5
5th 6th 7th
Grade Level
9
Step Five Possible Title -- Absences in Each
Grade Level
15
10
of Absences
5
5th 6th 7th
Grade Level
10
Step Five Alternative Title x vs. y Grade
Level vs. Absences
15
10
of Absences
5
5th 6th 7th
Grade Level
11
Putting It All Together
The intervals are the same spacing.
Title
  • Label y-axis

Label x-axis
12
Example What is the difference between boys and
girls on Team A in each Science Class? 2nd
period 10B 8G 5th 8B 10G 6th 7G 11B 7th
12G 8B
13
What should we do first? We should probably put
our raw data into a better and simpler data
table. 2nd period 10B 8G 5th 8B 10G 6th
7G 11B 7th 12G 8B any suggestions?
14
What is a Bar Graph?
Boys and Girls in each Science Class Period Boy
s Girls 2 10 8 5 8 10 6 11 7 7
8 12
15
Step One Draw your axis
16
Step Two label your axis
15
of Boys/Girls
10
5
2 5 6 7
Science Classes
17
Step Three and Step Four Plot your data and
fill in your bars
15
of Boys/Girls
10
5
2 5 6 7
Science Classes
Boys Girls
18
Step Five ???? TITLE Boys and Girls in Each
Science Class
15
of Boys/Girls
10
5
2 5 6 7
Science Classes
19
Step Five ???? x vs. y Science Class vs.
the Number of Boys and Girls
15
of Boys/Girls
10
5
2 5 6 7
Science Classes
20
(No Transcript)
21
  • Tips for Bar Graphs?
  • The independent variable always goes on the x
    axis. (What does that mean?)
  • Title and Label all axis. Include the units!
  • Determine the correct scale to be used on the
    graph.
  • Make sure your vertical axis uses a scale which
    is consistent and does not change

22
  • Tips for Bar Graphs?
  • The width of all bars should be the same
  • You should leave a skipped space between each
    separate bar group.
  • That skipped space should be the same distance
    for each category

23
  • Tips for Bar Graphs?

TITLE YOUR GRAPH
Don't forget!
24
Table of Plant Days vs. Plant Height
Make a Bar Graph
F-Plant 1 NF-Plant 2
(inches) (inches)

2 2 4 4 8 7 10 8 14 9
Day of Growth 2 5 10 15 20
25

14
12
10
Height of Plant
8
6
4
2
2 5 10 15 20
Days of Growth
F-Plant 1 NF- Plant 2
26
What is wrong with this Graph (2 things) ?

14
12
10
Height of Plant
8
6
4
2
2 5 10 15 20
Days of Growth
F-Plant 1 NF- Plant 2
27
Days of Growth vs. Plant Height

14
12
10
Height of Plant
8
6
4
2
2 5 10 15 20
inches
Days of Growth
F-Plant 1 NF- Plant 2
28
Knap-Sack Brand
Brand Number of Boys
NIKE 20
FUBU 40
Polo 30
TARGET 10
29
Knap-sack brand vs Students
