Title: Objectives


1

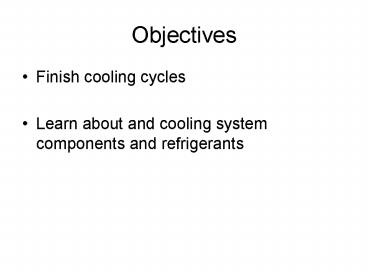

Objectives
  • Finish cooling cycles
  • Learn about and cooling system components and
    refrigerants

2
Multistage Compression Cycles
  • Combine multiple cycles to improve efficiency
  • Prevents excessive compressor discharge
    temperature
  • Allows low evaporating temperatures (cryogenics)

3
Systems residential
Outdoor Air
Indoor Air
4
System componentsLarge building system
Water to cooling tower
Water form cooling tower
25oC
35oC
Plate heat exchanger
6oC
11oC
Water to building
Water from building
5
Chiller
6
Compressors
7
Reciprocating compressor
8
Scroll compressor
http//www.youtube.com/watch?vf_6xolDoqs0
9
Screw compressor
http//www.youtube.com/watch?vxO7IhhzImMUfeature
related
10
Rotary Compressor
11
Summary
  • Many compressors available
  • ASHRAE Handbook is good source of more detailed
    information
  • Very large industry

12
Refrigerants
13
What are desirable properties of refrigerants?
  • Pressure and boiling point
  • Critical temperature
  • Latent heat of vaporization
  • Heat transfer properties
  • Viscosity
  • Stability

14
In Addition.
  • Toxicity
  • Flammability
  • Ozone-depletion
  • Greenhouse potential
  • Cost
  • Leak detection
  • Oil solubility
  • Water solubility

15
Refrigerants
  • What does R-12 mean?
  • ASHRAE classifications
  • From right to left ?
  • fluorine atoms
  • hydrogen atoms 1
  • C atoms 1 (omit if zero)
  • CC double bonds (omit if zero)
  • B at end means bromine instead of chlorine
  • a or b at end means different isomer

16
Expansion Valves
  • Throttles the refrigerant from condenser
    temperature to evaporator temperature
  • Connected to evaporator superheat
  • Increased compressor power consumption
  • Decreased pumping capacity
  • Increased discharge temperature
  • Can do it with a fixed orifice (pressure reducing
    device), but does not guarantee evaporator
    pressure

17
Thermostatic Expansion Valve (TXV)
  • Variable refrigerant flow to maintain desired
    superheat

18
AEV
  • Maintains constant evaporator pressure by
    increasing flow as load decreases
