Implementing EFECT Easy Fast Efficient Certification Technique

1

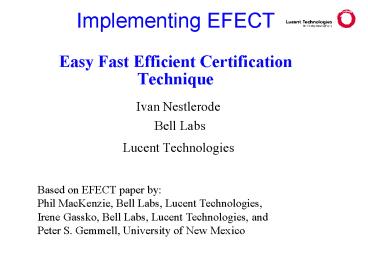

Implementing EFECTEasy Fast Efficient
Certification Technique

• Ivan Nestlerode
• Bell Labs
• Lucent Technologies

Based on EFECT paper by Phil MacKenzie, Bell
Labs, Lucent Technologies, Irene Gassko, Bell
Labs, Lucent Technologies, and Peter S. Gemmell,
University of New Mexico
2
Network Communication
Listen to messages Modify messages Forge messages
Man in the Middle
can
3
Public Key Infrastructure (PKI)

• Each party has an associated key pair one public
  and one private
• Private keys are not divulged
• Public keys are published
• Infrastructure enables both encryption and
  digital signatures (to thwart man in the middle)
• Problem public key spoofing by the man in the
  middle

4
PKI Bootstrapping Problem

• A spoofed public key can render an otherwise
  secure communication insecure
• Problem need a way to guarantee that a public
  key actually belongs to a specific individual
• Answer trusted authorities who sign public keys

5
Certificate Authorities

• Certificate - a digitally signed document binding
  an ID to a public key
• Certificate Authority - a trusted third party who
  signs certificates
• CA public key must be known to verify
  certificates
• Certificate directory lists all IDs and
  corresponding certificates

6
Problem of Certificate Revocation

• Private keys may be stolen before a certificate
  expires
• Digital signatures cant be undone (on the
  certificate in question)
• CA must issue a signed revocation statement,
  invalidating the certificate in question
• CA must also issue a new signed certificate to
  the party in question

7
Existing Revocation Solutions

• Existing solutions
• X.509 Certificate Revocation Lists (CRL)
• SDSI (online reconfirmation)
• Valicert - Certificate Revocation Trees (CRT)
• Notice certificates are not very valuable in
  these schemes

8
EFECT Revocation Solution
No revocation!

• All certificates reissued each day
• Infeasible with current schemes which have a
  signature on each certificate
• Possible with EFECT because CA does one signature
  each day for all certificates
• Use hashing instead of normal signing/verifying
  (10,000 times faster)
• The trick is the data structure Certificate
  Verification Tree (a Merkle tree)

9
Certificate Verification Tree
Root (RV) hashinfo
Signed by CA
h7h(h5,h6)
h6h(h3,h4)
h5h(h1,h2)
h2h(h(cert3),h(cert4))
h4h(h(cert7),h(cert8))
h1h(h(cert1),h(cert2))
h3h(h(cert5),h(cert6))
cert1
cert2
cert3
cert4
cert8
cert7
cert6
cert5
10
EFECT for Credit Cards

• One signature per day for CA
• One signature verification per day per CA for
  vendor
• Offline shopping using a smartcard (store hashes
  from the tree path smaller than signatures)
• Better security than current schemes and no
  online revocation checks

11
More EFECT Advantages

• One signature allows better security (threshold
  signatures, larger keys, etc.)
• Fewer signatures for cryptanalysis (one a day)
• No isolated forgeries
• Efficient recovery from compromise of CA keys
• Archival storage
• Atomic Certificates
• Truly untrusted certificate directories

12
No Isolated Forgeries

• In current schemes, isolated forgeries can go
  undetected
• With EFECT, forgery is detectable by anyone using
  the system

13
Efficient Recovery from CA Key Compromise

• Notify interested parties about compromise and
  supply new key out of band (NY Times)
• Sign root hash of the day with the new key
• Go drink coffee

14
Non-repudiation and Archival Storage

• CA keys can become too short with time
• CA keys can be stolen
• Signature algorithms may eventually be broken

Solution

• Archive old roots and resign them with new keys
• Keep path at signature time with the document
• Directories archive old tree roots

15
Atomic Certificates

• Users may not want each peer to see entire
  certificate
• Suggested solution Atomic Certificates (PKIX
  draft)
• Problem too many signatures with old schemes
  (smartcard constraint)
• EFECT one signature fits all

16
Truly Untrusted Directories

• Current PKI schemes distribute certificate
  directories beyond the CA
• Creates a trust problem
• Directories may lie (bribery possible)
• EFECT directories can prove non-existence of
  certificates, so we need not trust them

17
Implementing EFECT

• Certificate Verification Tree
• implemented the Btree in C for maximum speed
• used openSSL to overlay the hashes on the Btree,
  creating a Merkle tree
• Client Software
• implemented a cross-platform GUI in Java
• allows the user to get certificates from any
  networked directory and save/restore them to/from
  the local hard drive

18
Implementing EFECT

• Certificate Directory Server
• holds the CVT and allows clients to query for
  individual certificates
• designed a simple query protocol (EQP) to be
  spoken between the client software and the
  directory server
• implemented the Directory Server in C
• speaks EQP over TCP connections
• single threaded, but handles multiple
  simultaneous queries

19
Optimizing EFECT

• Order of the Btree (k)
• determines the branching factor of the tree
• determines the size of the certificate paths
• determines the lookup speed
• Math shows that smallest paths occur when k 2
• Experimental trials show that queries are fastest
  when k 4
• Some tradeoff between space and speed

20
EFECT Conclusions

• EFECT allows one to obtain both a certificate and
  its validity simultaneously
• Efficient recovery from CA key compromise
• More protection for CA keys
• Archiving and non-repudiation made easy
• More certificates on a smartcard
• Other useful properties
