Quadrilaterals Sec 6.1

1

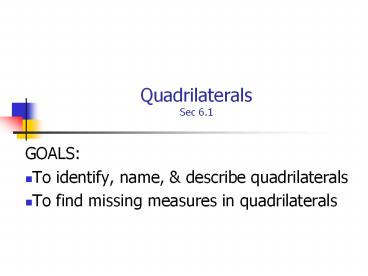

QuadrilateralsSec 6.1

• GOALS
• To identify, name, describe quadrilaterals
• To find missing measures in quadrilaterals

2
Polygons
Polygon a figure that has three or more sides
vertex
side
Specifically

• a plane figure
• a closed figure
• three or more noncolllinear sides
• each side intersects exactly two other sides at
  the vertices

3
Polygon or not?

• Identify whether the following figures are
  polygons.

4
Naming Polygons

• Polygons are named by the number of sides they
  have.
• Number of sides Name
• 3 triangle
• 4 quadrilateral
• 5 pentagon
• 6 hexagon
• 7 heptagon
• 8 octagon
• 9 nonagon
• 10 decagon
• n n-gon

5
Convex and Concave Polygons

• Convex Polygon a polygon where no line that
  contains a side of the polygon contains a point
  in the interior of the polygon.

Point in the interior!
Convex Polygon
Concave Polygon
6
Example
2
1

• Name of Polygon
• Convex or Concave?

7
Regular Polygon

• Regular Polygon a polygon that is both
  equilateral and equiangular.
• Are the following polygons regular?

8
Diagonal of a Polygon

• A segment that joins two nonconsecutive vertices.
• Polygon ABCDE

Diagonals BE and BD
9
Angle Measures in Quadrilaterals

• The sum of the measures of the interior angles of
  a quadrilateral is 360 degrees. Theorem 6.1

10
Example

• Find the value of y in quadrilateral WXYZ.

11
Example

• Find the value of x in quadrilateral WXYZ. Then
  find the measure of angle X and Y.

12
Example

• Solve for x and y. Then find the angle measures.

13
Homework

• Page 325- See assignment guide
