Mini Grand Challenge Contest To Enhance CS Education

1

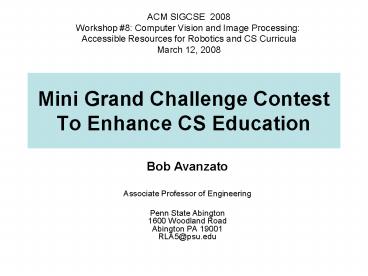

Mini Grand Challenge Contest To Enhance CS
Education
ACM SIGCSE 2008 Workshop 8 Computer Vision and
Image Processing Accessible Resources for
Robotics and CS Curricula March 12, 2008

• Bob Avanzato
• Associate Professor of Engineering
• Penn State Abington1600 Woodland RoadAbington
  PA 19001RLA5_at_psu.edu

2
Objectives

• Design autonomous outdoor robot contest Mini
  Grand Challenge (MGC) to promote interest in
  robotics, vision and AI.
• Partly inspired by DARPA Grand Challenge
• Include vision and HRI component.
• Contest should be accessible to advanced high
  school, lower-division undergrads (CS. Engr, IST)
  and beyond.
• Availability of low-cost robot platform and
  development environment to improve accessibility
  to MGC contest.

3
PSU Abington Robot Platform
4
Mini Grand Challenge (MGC)

• Autonomous, outdoor, electric ground robot
• Follow 8-ft wide (unmarked) paths on college
  campus
• Reach 6 waypoints (GPS longitude, latitude)
• Avoid human obstacles on path
• Entertain human spectators
• Take off-road detour across field (with
  obstacles)
• Payload 1 gallon of water
• Robot Speed 1.5 - 5mph
• (6) Waypoints disclosed 24 hours prior to contest
  event.

5
Campus Paths
6
Campus Paths
7
Campus Paths
8
Campus Paths
9
Campus Paths
10
Campus Paths (Field)
11
Campus Paths
12
Campus Paths
13
Sample Path/Waypoint Layout
WP 4

WP 3
WP 5
orange cones
WP 6
Path width 8ft Waypoint (WP) diameter 20ft
14
Key Equipment List (PSU robot)

• PowerWheels platform 150
• GPS (with serial cable) 100
• Speaker/amp (15-30 watt) 60
• Inverter (DC to AC) 30
• Servo (steering) 50
• Speed controller 60
• USB camera (240 x 320) 50
• Camera stand 30
• Sonar and servo 50
• USB to serial converter 20
• Servo controller 50-100
• Battery 50
• TOTAL 700 (approx.)
• NOTE Laptop, MATLAB costs not included in above
  list

15
Robot Block Diagram
16
PSU Abington Robot
17
Key Software

• MATLAB with Image Processing Toolbox
• Grab image from USB camera
• Edge detection
• Read GPS text serial output (position, velocity)
• Text-to-Speech
• Send motor and steering commands to servo
  controller
• Main control loop written in MATLAB
• Drivers
• MS Win32 Speech API (SAPI) (text to speech)
• VFM (Video for Windows frame grabber)
• Any Software/Hardware solution Allowed

18
Vision Processing

• Edge detection

19
Vision Processing

• Example Edge detection

20
Pilot Study Student Solutions

• Background Sophomore-level CS/EE students with
  no prior experience in vision
• Students developed a heuristic, path-tracking
  algorithm in MATLAB (Image Processing ToolBox
  Canny edge detection non-optimal).
• MATLAB environment promotes rapid prototyping and
  facilitates testing.

21
Results

• 2005 Mini Grand Challenge (April 2005)
• 3 participants no successful robots
• Rain limited outdoor event (rescheduled in Dec.)
• Robots on display indoors same day as FF contest
• Generated much interest for future events
• 2006 Mini Grand Challenge (April 1, 2006)
• 6 participants one robot manages 50 of course
• 2007 Mini Grand Challenge (March 31, 2007)
• 8 robots registered
• 1 high school team
• 1 winner (50 out of 100 points) no robot
  completes course
• 2007 Mini Grand Challenge (April 26, 2008)
• Expect 10 15 robots

22
Mini Grand Challenge Event(PSU-Abington PA
April 3, 2005)
23
MGC 2006
24
MGC 2006 (PSU Abington robot)
25
MGC 2006
26
MGC 2006 (PSU University Park robot)
27
MGC 2006 (Spectator Interaction)
28
Results/Conclusions

• Mini Grand Challenge (MGC) contest successfully
  promotes interest in robotics and vision for a
  wide range of participants (freshman college to
  professional)
• Low-cost robot platform with MATLAB software
  allows freshman/sophomore undergrads to
  participate in sophisticated algorithm
  development.
• Contest supports wide range of educational goals.
• Outdoor contest has risks (example rain!)
• Larger robot --gt more cumbersome for classroom
  integration

29
Future Directions

• Develop web-based resources and tutorials.
• Develop K-12 outreach activities based on MGC
• Assess (survey) student retention and
  recruitment.
• Regional contests
• Develop indoor extension to contest to mitigate
  weather problems. (Example follow cones in gym)
• Non-CS major student involvement IST (Spr
  2008)
• Develop robot contest in Second Life 3D virtual
  world

30
References

• PSU Abington Mini Grand Challenge Website
• http//cede.psu.edu/avanzato/robots/contests/outd
  oor/index.htm
• YouTube video of MGC robot (2007)
• http//www.youtube.com/watch?vFVMxM7VVe8Y

31
Robotics in Second Life

• Exploratorium Second Life site (Mars rover)

32
Portland, Oregon in Second Life
33
Portland, Oregon in Second Life
