Fuel Control

1

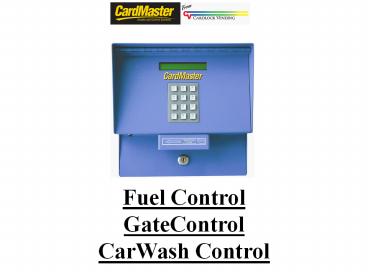

Fuel Control GateControl CarWash Control
2
CardMaster is the industry low cost fleet fueling
controller for trucking, public works, farm
fleets. CardMasters versatility and
flexibility adapts to each customers needs.
3
CardMasters Primary purpose Fuel Pump Control
Reporting
Dual Pump
4
Typical small fleet application
5
12vdc/24vdc applications
? Construction Mobile fuelers ?
Lube vans ? Trash compactors ?
Water trucks ? FBO airport mobile fuelers
? Solar Panel Power sites
6
Physical features include Sturdy Metal
Box Quality Powder Coat Finish
Full length Hinge on lid 12 key weatherproof
keypad Back-lit 16 character LCD Key
locked lid for security
7
Each unit controls two (2) fueling points. (2
singles, or 1 dual) 120/240 vac operation
Two 1½ HP 30 amp relays per fueling
point. Includes Auto / Manual by-pass
switch for each hose position
8
CardMaster fuel control systems available in two
versions
Feature CardMaster CardMaster II
Transaction Memory 1500 750
Cards/Accounts 999 999
Misc. 6 Digit Fields 1 4
CardMaster can be authorized by magnetic stripe
card, or by keypad entry of the card number
9
Basic capabilities of CardMaster and CardMaster
II card control include

• Expiration Date, or unlimited
• Quantity Limit per transaction
• Specific Products authorized
• One or more of the below prompts
• ODOMETER
• VEHICLE NUMBER
• EMPLOYEE NUMBER
• Create your own field names

10
Communication Ports
RS-422/485 Journal Printer RS-422/485 Reporting
Data to external devices.
There is an external RS-232 DB9 port, accessible
for data polling at the island or for
servicemans laptop for service support
11
Management system interfaces
CM-ECM Internet /Cellular
One of our most popular options is the CM-ECM
Internet/Cellular Modem. It is Internet on the
customer PCs, which calls the cellular modem
behind the scenes
12
Management system interfaces
CM-ECM Internet /Cellular
A major advantage is that the software can be on
any and/or all of the PCs the customer wants it
to be. And even be used from the local
WiFi coffee shop by laptop.
13
Management system interfaces
CM-RF wireless (no conduits)
RF from the CardMaster to the kiosk or building
can save installation cost of digging, installing
conduits, and serial cabling.
14
Management system interfaces
CM-LAN
CM-LAN module (Shipped installed in the CM)
integrates your CardMaster either into a LAN
(local area network), or WAN (wide area network).
CM-LAN is hardwired in conduit from the island
to the kiosk or building PC.
15
Designed for the small fleet operators! CardMaster
s capabilities exceed the price! Try us! You
will be pleased.
16
AND it is Cost effective to have multiple
CardMasters on a site!
Dual Pump
Dual Pump
Dual Pump
17
Why, cost and reliability! Several CardMasters
cost less than one complex competitive
system. AND The more complex larger systems have
the potential to shut down your whole site with
failure of the central board or component!
18
County Fuel Yard with three dual dispensers and
three CardMaster Fuel Controllers
19
This site has six (6) CardMasters, and needs one
for gate control
20
Report Generator Program installs on your PCs,
under your control

Accurate Data at your fingertip
21
CM-HostCT CardMasters new software program
combines Terminal Emulation with Report
Generation and Formatting. Starting with VISTA
M/S no longer includes a terminal program in the
operating software. CM-HostCT is popular in
part because it has a lot fewer steps to the
process.
22
CM-HostCT Bundled in CM-HostCT is our popular
CardTransPorter highly flexible report package
for management provides reports that ? Sort
data by any all data fields ? Total by
groups or sub groups. The next screen shows the
sorting choices
23
CM-HostCT- Sort Menu
24
CardTransPorter Report by Card No.
25
CardMaster for fleet car wash facilities
CardMasters CW version controls fleet car washes
such as roll over, wand, or truck washes. The
duration of the wash can either be controlled
by our timer, or by relay contact switches from
the car wash.

26
CardMaster GateControl secures facilities such
as terminals, bulk Plants, unattended restrooms,
as well as warehouses
27
Cardlock Vending strongly believes in service
support, prior to the sale, and ongoing after the
sale. We provide regional training classes, and
as well, provide training classes at the factory,
with appointment
