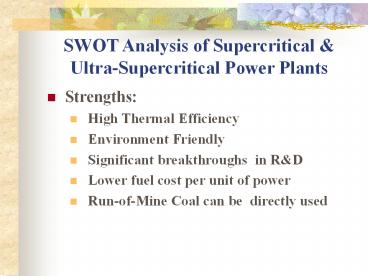

Title: SWOT Analysis of Supercritical


1
SWOT Analysis of Supercritical
Ultra-Supercritical Power Plants
  • Strengths
  • High Thermal Efficiency
  • Environment Friendly
  • Significant breakthroughs in RD
  • Lower fuel cost per unit of power
  • Run-of-Mine Coal can be directly used

2
  • Weaknesses
  • Materials Limitation
  • High levels of corrosion
  • Increased supervision and maintenance costs
  • Limited scope for retrofitting opportunities

3
  • Opportunities
  • Vast Scope for Power Plant capacities based on
    Supercritical Technologies
  • Ever increasing demand for power
  • Optimum use and higher dependence on domestic
    sources of energy

4
  • Threats
  • RD setbacks will restrict the growth
  • Fossil Fuels are likely to be exhausted in not
    too distant a future
  • More stringent environmental regulations
  • Development of cheaper and more efficient
    sources of energy

5
CONCLUSION
  • The current state-of-the-art for coal-fired
    supercritical steam cycles is 600C/300 bar
    maximum steam conditions, with a net thermal
    efficiency of about 45 (LHV, based on UK inland
    conditions). 620C plant are expected within
    five years while, in the longer term (10-20
    years). 650-700C is expected, with resulting
    cycle efficiencies in the range 50-55.
  • Materials limitations are the major factors
    limiting further development, with key
    constraints at the furnace wall, superheater and
    reheater outlets, and the first stages of the HP
    and IP turbines. Considerable materials RD is
    under way in Europe, Japan and the USA.

6
  • Other developments are under way, mostly by
    individual manufacturers to optimise cycle design
    and improve individual components, which are
    resulting in incremental improvements across
    the plant.
  • Identified RD needs include extensive materials
    research, particularly into the welding and
    corrosion properties of candidate
    high-temperature materials, and demonstration of
    a Benson vertical furnace tube.

7
  • No significant opportunities for retrofit of
    supercritical technology to existing
    (Predominately subcritical) plant have been
    identified.
  • FBCs using supercritical steam cycles are now
    being developed. For example, a 350 MW PFBC is
    under construction in Japan.

8
  • The indications are that HRSGs will
    progressively move to once-through technology
    and then to supercritical pressures as GTs become
    larger and exhaust temperatures rise. The first
    full-scale subcritical demonstration Benson
    design HRSG is nearing completion in the UK.
  • Supercritical technology is expected to
    progressively displace subcritical designs due
    to its better environmental performance and
    lower associated fuel costs. Asia is expected
    to generate the significant demand. Current
    estimates suggest a steady rise in new
    supercritical plant from 5GW pa now to perhaps
    25-40GW pa in 20 years time.
