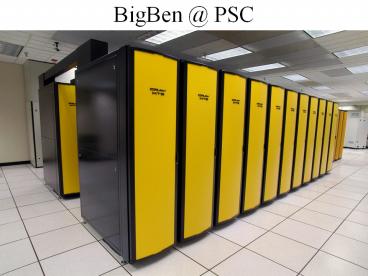

BigBen @ PSC

1
BigBen _at_ PSC
2
BigBen _at_ PSC
3
BigBen _at_ PSC
4
BigBen Features

• Compute Nodes
• 2068 nodes running Catamount (QK) microkernel
• Seastar interconnect in a 3-D torus configuration
• No external connectivity (no TCP)
• All Inter-node communication is over Portals
• Applications use MPI which is based on Portals

• Service I/O Nodes (SIO) Nodes
• 22 nodes running Suse Linux
• Also on the Seastar interconnect
• SIO nodes can have PCI-X hardware installed,
  defining unique roles for each
• 2 SIO nodes are externally connected to ETF with
  10GigE cards (currently)

5
Portals Direct I/O (PDIO) Details

• Portals-to-TCP routing
• PDIO daemons aggregate hundreds of portals data
  streams into a configurable number of outgoing
  TCP streams
• Heterogenous portals (both QK Linux nodes)
• Explicit Parallelism
• Configurable of Portals receivers (on SIO
  nodes)
• Distributed across multiple 10GigE-connectedServi
  ce I/O (SIO) nodes
• Corresponding of TCP streams (to the WAN)
• one per PDIO daemon
• A Parallel TCP receiver in the Goodhue booth
• Supports a variable/dynamic number of connections

6
Portals Direct I/O (PDIO) Details

• Utilizing the ETF network
• 10GigE end-to-end
• Benchmarked gt1Gbps in testing
• Inherent flow-control feedback to application
• Aggregation protocol allows TCP transmission or
  even remote file system performance to throttle
  the data streams coming out of the application
  (!)
• Variable message sizes and file metadata
  supported
• Multi-threaded ring buffer in the PDIO daemon
• Allows the Portals receiver, TCP sender, and
  computation to proceed asynchronously

7
Portals Direct I/O (PDIO) Config

• User-configurable/tunable parameters
• Network targets
• Can be different for each job
• Number of streams
• Can be tuned for optimal host/network utilization
• TCP network buffer size
• Can be tuned for maximum throughput over the WAN
• Ring buffer size/length
• Controls total memory utilization of PDIO daemons
• Number of portals writers
• Can be any subset of the running applications
  processes
• Remote filename(s)
• File metadata are propagated through the full
  chain, per write

8
HPC resource and renderer waiting
Compute Nodes
ETF network
Steering
I/O Nodes
iGRID
PSC
9
Launch PPM job, PDIO daemons, and
iGRID recvers
Compute Nodes
recv
recv
recv
ETF network
pdiod
pdiod
pdiod
pdiod
pdiod
pdiod
Steering
I/O Nodes
iGRID
PSC
10
Aggregate data via Portals
Compute Nodes
recv
recv
recv
ETF network
pdiod
pdiod
pdiod
pdiod
pdiod
pdiod
Steering
I/O Nodes
iGRID
PSC
11
Route traffic to ETF net
Compute Nodes
recv
recv
recv
ETF network
pdiod
pdiod
pdiod
pdiod
pdiod
pdiod
Steering
I/O Nodes
iGRID
PSC
12
Recv data _at_ iGRID
Compute Nodes
recv
recv
recv
ETF network
pdiod
pdiod
pdiod
pdiod
pdiod
pdiod
Steering
I/O Nodes
iGRID
PSC
13
Render real-time data
Compute Nodes
recv
recv
recv
ETF network
pdiod
pdiod
pdiod
pdiod
pdiod
pdiod
Steering
I/O Nodes
iGRID
PSC
14
Send steering data back to active job
Compute Nodes
recv
recv
input
recv
ETF network
pdiod
pdiod
pdiod
pdiod
pdiod
pdiod
Steering
I/O Nodes
iGRID
PSC
15
Dynamically update rendering
Compute Nodes
recv
recv
input
recv
ETF network
pdiod
pdiod
pdiod
pdiod
pdiod
pdiod
Steering
I/O Nodes
iGRID
PSC
