CS, CoE, EE 362 Digital Computers II: Architecture

1

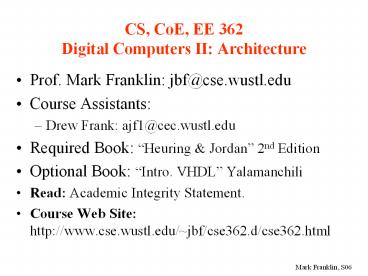

CS, CoE, EE 362Digital Computers II Architecture

• Prof. Mark Franklin jbf_at_cse.wustl.edu
• Course Assistants
• Drew Frank ajf1_at_cec.wustl.edu
• Required Book Heuring Jordan 2nd Edition
• Optional Book Intro. VHDL Yalamanchili
• Read Academic Integrity Statement.
• Course Web Site http//www.cse.wustl.edu/jbf/cse
  362.d/cse362.html

2
Four Key Questions

• What components must every computer have ?
• How can computers be described, specified and
  evaluated ?
• What constitutes computer architecture (hardware,
  software, firmware, algorithms, etc.) ?
• How does technology effect computer architecture
  (chip size, feature size, power, pin density,
  etc) ?

3
Essential Computer Components

• Processor interpret/execute instructions.
• Memory store instructions data.
• Communication Device(s) communicate with outside
  world, I/O.

Classic Computer Architecture (SISD Single
Instruction Stream-Single Data Stream)
Processor
Control Unit
Input/ Output
Memory
ALU
4
Architecture Components

• INSTRUCTION SET DESIGN Programmer visible
  instruction set Algorithm, compiler, OS
  design, algorithmic complexity
• HIGH LEVEL COMPONENT ORGANIZATION Memory
  system, bus structure, processor design, branch
  handling, pipelining, execution
  algorithms, instructions/second,
  clocks/instruction.
• HARDWARE Detailed logic design, packaging VLSI
  Logic design CAD algorithms speed, area,
  power,

5
Program Control Unit
ALU
ALU
ALU
ALU
Program Memory
Interconnection Network
Data Memory Unit
Input / Output
(SIMD) Single Instruction Stream Multiple Data
Stream Architecture
6
Performance Expression Amdahls Law
7
Amdahls Law
It does no good to have many processors if there
is not enough parallelism. What portion of a
computation can be sequential if we want the
processors to be used at 50 percent efficiency ?
( S p/2 )
8
Generalize Amdahls Law
Example Suppose a program runs in 100 seconds
on a machine. Multiply operations are responsible
for 80 seconds of this time. How much do we have
to improve the speed of multiplication if we want
the program to run 4 times faster? What about 5
times faster? PRINCIPAL Make the common case
fast!
9
Computer Market Partitioning(costs are for
processor, not system)

• Desktop Computing (100 - 1,000)
• Price-performance
• Servers (200 - 2,000)
• Availability (reliability effectiveness)
• Scalability
• Throughput
• Embedded Computers (0.20 - 1,000)
• Real-time performance
• Power and memory minimization
• Cost minimization
• Interface with special purpose logic use of
  processor cores

10
HLL (e.g., C, C, Perl) vs Machine/Assembly
Language (AL)

• HLL Pros
• Easier to express algorithms due to higher level
  constructs (e.g., For, Case, Arithmetic
  expressions, objects, etc.)
• Type checking (Hardware for type checking ?).
• Some memory allocation checking.
• Assembly Language Pros
• More control over ISA ? more speed, less memory
• More control over I/O
• Combination is often best for embedded systems
  HLL calling AL .

11
Example HLL ? AL Mapping
HLL
AL

• b c de

• LOAD R1, d
• LOAD R2, e
• LOAD R3, c
• MPY R4, R2, R1
• ADD R5, R4, R3
• STORE R5, b

12
Buses I

• A set of path(s) (wires) connecting on-chip or
  off-chip modules.
• Serial bus transmit one bit at a time
• Parallel bus transmits many bits simultaneously
• Generally time-shared.
• Generally has separate data control paths.
• Typically has a separate bus controller or
  arbiter that decides which modules can use the
  bus at any given time.

13
Buses II

• Some common buses
• On-chip AMBA, Wishbone, (generally not standard)
• Off-chip PCI Bus Family),
• ---------------- 32bit transfer 64bit transfer
• 33-MHz PCI 133 MB/sec 266 MB/sec
• 66-MHz PCI 266 MB/sec 532 MB/sec
• 100-MHz PCI-X ------------ 800 MB/sec
• 133-MHz PCI-X ------------ 1 GB/sec
• PCI-e(xpress) serial, 1 lane 500 MB/sec
• PCI-e(xpress) serial, 4 lanes 2 GB/sec
• Off-chip Other buses - SCSI, IDE, Infiniband
• Common issues Arbitration, congestion.
• Logical equivalence between buses, multiplexers
  and switches.

14
Bandwidth Requirements
15
Bandwidth Trend
16
Simple Queuing Theory View of Buses

• Bus is a shared resource and can be viewed as a
  server in a queuing system.
• Modules attached to the bus present inputs
  (i.e., requests) to the server (or Bus) and are
  queued up if the server is busy.

Memory
Server
CPU
Queue
BUS
I/O
17
Basic Queueing Theory

• Utilization time a server is busy
• Average Queue Length Avg of jobs in queue.
• Average System Delay (latency) Avg time from job
  entry into, to job departure from system.
• Arrival Time Distribution Poisson Distribution
  of arrival times (exponential interarrival
  times).
• Service Time Distribution Exponentially
  distributed service times.
• Queue Charactericstics Infinite length FIFO
  service discipline.

18
Basic Queueing Results
19
Basic Queueing Results
Waiting Time
M/M/1
Queue Length
M/M/1
20
Computer Generations

• 1 1950 - 1959 Vacuum Tubes
• 2 1960 - 1968 Transistors
• 3 1969 - 1977 Integrated Circuit
• 4 1978 - 2005 LSI-Large Scale
  Integration VLSI-Very LSI
• 5 2005 - 20?? ULSI-Ultra LSI parallel
  processing

21
Technology How we make a chip (roughly)
22
Integrated Circuit Cost

•



  Cost.per.wafer
• Cost.per.die -----------------------------------

• (Dies.per.wafer) x
  (Yield)
• Wafer.area
• Dies.per.wafer -------------------
  (approximate)
• Die.area
• 1
• Yield ------------------------------------------
  ---- (empirical observation)
• (1 (Defects.per.area)x(die.area/2))2

• Typical Die area 1.5 cm x 1.5 cm Wafer
  Diameter 10 inches
• Defects.per.cm2 1.7 Yield 50

23
TECHNOLOGY TRENDS

• Semiconductors
• Transistor Density 50/year, quadruple in 4
  years.
• Die Size 10 - 25/year
• IC Logic Technology
• Transistors per Chip 50 - 60/year
• Device Speed 30/year
• Wire/Communications Speed constant (Cu vs Al)
• Magnetic Disk Technology
• Density 25 - 60 / year
• Access Time 35 / 10 years (8 ms).

24
Feature and Die Size
25
Wafer Size
12-inch wafer
26
SILICON MAGNETIC DENSITIES
27
Processor Performance Gains
Performance (x VAX-10/780)
28
Processor Cost Trends with Time
29
SILICON MAGNETIC DENSITIES
