Title: Greenwich Academy Upper School


1

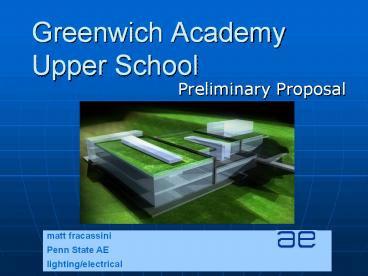

Greenwich AcademyUpper School
Preliminary Proposal
matt fracassini Penn State AE lighting/electrical
2
Greenwich Academy
  • Overview of Occupant

Greenwich Academy is an independent college
preparatory school for girls and young women,
located in Greenwich, Connecticut. The campus is
an inclusive community for students from pre-K to
12th grade. In general, the goals of the
institution are to
  • promote the highest ethical and moral values
  • enable each student to reach her highest level
    of academic achievement
  • foster a sense of aesthetic sensitivity and
    creativity

3
Greenwich Academy
  • Location

Upper School
Main Entrance
4
Greenwich Academy
  • Project Team
  • owner Greenwich Academy
  • architect Skidmore, Owings and Merrill
  • CM Turner Construction Co.
  • MEP AKF Engineers
  • civil Redniss Mead, Inc.
  • structural Diblasi Associates
  • landscape Brown / Sardina, Inc.

5
Greenwich Academy
  • Architectural Overview
  • The building itself is designed to look and feel
    open and bright.
  • Contains many sustainable design elements, such
    as planted roofs, stormwater management, and
    recycled materials.
  • Structure is based on laminated wood columns and
    steel beams and girders.

show picture of wood/steel connection
  • Building enveloped by full-height glass curtain
    wall on most sides.

6
Greenwich Academy
  • Architectural Overview
  • 4 Light Chambers large glazed spaces that
    protrude above the 2nd level.

1
4
2
3
7
Greenwich Academy
  • Special Design Considerations

8
Focus of Redesign
  • Space 1 West Corridor
  • Space 2 Library
  • Breadth 1 Library HVAC revision
  • Breadth 2 Library Cost Analysis
  • Space 3 Science Room 1
  • Electrical Work Science Room

9
West Corridor
  • The West Corridor is the main circuit of the
    building, leading visitors down from the Main
    Stair, and into the various connected spaces.

10
West Corridor
  • As the primary thoroughfare in the school, this
    corridor is like an artery directing blood
    (people in this case) to the adjacent spaces.

entrance
corridors
  • The lighting system should reflect this sense of
    movement.

11
West Corridor
  • Goals for Space
  • Lead visitors into other areas of building.
  • Retain sense of open space.
  • Integrate light quality with daylight.

12
West Corridor
  • Solutions

Lead visitors to other parts of building
  • Use compact fluorescent downlights along center
    of corridor.

13
West Corridor
  • Solutions

Retain Sense of Open Space
  • Use indirect cove lighting to create ambient
    light and prevent boring, dim light in corridor
  • Light on walls and ceiling will give feeling of
    open space.

14
West Corridor
  • Solutions

Integrate light with daylight
15
Library
  • The Learning Center and Reading Room combine
    into one large space to form the Upper School
    library, the largest open space in the building.

16
Library
  • Goals for Space
  • Emphasize open space and clean environment.
  • Create reduced-glare environment for VDT use.
  • Provide strong Illuminance at reading table.
  • At least 40 fc.
  • Reduce/Control daylight throughout space.

17
Library
  • Solutions
  • Emphasize open space and clean environment.
  • Create reduced-glare environment for VDT use.
  • describe use of fixtures and show cut sheets
  • show renderings close up of VDTs

18
Library
  • Solutions
  • Provide strong Illuminance at reading table.
  • At least 40 fc.
  • Reduce/Control daylight throughout space.
  • Show Renderings, Distribution
  • Describe daylighting solution

19
Breadth 1
  • HVAC Resizing in Library

20
Breadth 1
  • HVAC Resizing in Library

solutions
21
Breadth 2
  • Cost Analysis in Library

22
Science Room
Lab Tables
Key Planes
Student Desks
Teachers Table
23
Science Room
  • Goals for Space
  • Provide vertical illuminance on whiteboard
  • Maintain high illuminance and contrast ratio
    levels in rear of room.
  • Keep a uniform feel between each zone.

24
Science Room
  • Goals for Space

insert newer renderings try to find a rendering
for each goal that exemplifies it
25
Electrical
recircuiting and relocating panel feeder or
breaker resizing? transformer considerations
26
Final Points
