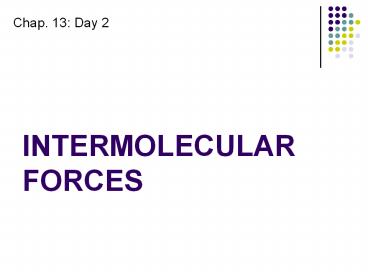

INTERMOLECULAR FORCES

1
INTERMOLECULAR FORCES

• Chap. 13 Day 2

2
(No Transcript)
3
Type of Bond determines Forces

• Generally strongest
• Interparticle
• Ionic Bond
• Ion-ion force
• Metalic bond
• Electronic force

• Generally weaker
• intermolecular forces
• Covalent bonds
• Polar molecules
• Dipole forces
• Nonpolar molecules
• London
• Disperson
• Induced dipole forces

4
Melting Point
Energy needed over come the intermolecular forces
between molecules in the solid phase
Temperature at which molecules in a solid gain
enough potential energy to change position
(become L)
5
(No Transcript)
6
Boiling Point
Energy needed over come the intermolecular forces
between molecules in the liquid phase
Temperature at which molecules in a liquid gain
enough potential energy to change position
(become gas)
7
POLAR vs NONPOLAR
8
Molecular Polarity

• Molecules will be polar if
• a) bonds are polar
• AND
• the molecule is NOT
• symmetric

9
Polar or Nonpolar?

• Compare CO2 and H2O. Which one is polar?

10
Polar or Nonpolar?

• Consider AB3 molecules BF3, Cl2CO, and NH3.

11
Molecular Polarity, BF3
B atom is positive and F atoms are negative.
BF bonds in BF3 are polar.
But molecule is symmetrical and NOT polar
12
Molecular Polarity, HBF2
B atom is positive but H F atoms are negative.
BF and BH bonds in HBF2 are polar. But molecule
is NOT symmetrical and is polar.
13
Is Methane, CH4, Polar?

• Methane is symmetrical
• and is NOT polar.

14
Substituted Ethylene

• CF bonds are MUCH more polar than CH bonds.
• Because both CF bonds are on same side of
  molecule, molecule is POLAR.

15
NONPOLAR Molecules
What causes the differences in intermolecular
forces between molecules?
Why do the intermolecular forces vary between
nonpolar molecules?
16
Solid
Liquid
WHY?
17
Bigger Molecules interact more
18
DISPERSION FORCE
Nonpolar Molecules
19
POLAR Molecules
Why do the intermolecular forces vary between
polar molecules?
20
Molecular Polarity

• Moleculessuch as HCl and H2O can be POLAR (or
  dipolar).
• They have a DIPOLE MOMENT. The polar HCl molecule
  will turn to align with an electric field.

21
DIPOLE FORCE
Polar Molecules
22
More polar stronger force
23
Why different?
liquid
gas
24
?
25
SOME POLAR Molecules
Have special Dipole force with Hydrogen
HYDROGEN FORCE or HYDROGEN BOND
26
HYDOGEN BOND

• NEED TO BE POLAR
• H is attached to N, F, or O

27
ALL molecules have LONDON DISPERSION force
28
Graphing Intermolecular Forces

• See handout
• 4 different Families
• Boiling point vs period

400 k
Boiling point
100 k
2
period
6
29
(No Transcript)
30
(No Transcript)
