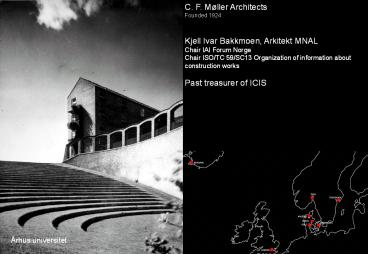

C. F. Møller Architects Founded 1924 Kjell
Ivar Bakkmoen, Arkitekt MNAL Chair IAI Forum
Norge Chair ISO/TC 59/SC13 Organization of
information about construction works Past
treasurer of ICIS
Århus universitet
2
Akershus University Hospital - New Ahus
Outside Oslo - Norway (www.nyeahus.no/showplace
.asp) 117.000 m2 new hospital buildings
20.000 m2 renovation of old buildings 31.000 m2
parking 22 Operating theaters 17 Diagnostic
imaging labs 615 Beds Start building March 1st
2004, full operation October 1st 2008. The
architect has established a complete 3D BIM
(Building Information Model) of the new
building. Autodesk ADT for 3D CAD model dRoFUs
database for room and programming information,
fixture, furniture and equipment lists
C. F. Møller Architects
3
New Akershus University hospital Competition
2000, finished 2008 Ca. 116.000 m2 new
construction 20.00 m2 existing
New Akershus University hospital Competition
2000, finished 2008 Ca. 116.000 m2 new
construction, 20.00 m2 existing Children and
youth clinc
4
Landspitali - University Hospital - Reykjavik
Iceland New national hospital and medical
faculty in Iceland 160.000 m2 new hospital and
university buildings 80.000 m2 parking
Sketch project April 2007 February 2008 The
Icelandic client will claim the new Danish
requirements concerning BIM, 3D models and IFC
(In Denmark it is mandatory for public clients
to require BIM, 3D and IFC as far as possible,
from January 1st 2007 for projects of a certain
size) All experiences from New Ahus will be used
Complete BIM model will be established including
all disciplines Project manager Kjell Ivar
Bakkmoen (kib_at_cfmoller.com)
ÅRHUS COPENHAGEN VEJLE AALBORG OSLO
STOCKHOLM LONDON www.cfmoller.com
C. F. Møller Architects
C. F. Møller Architects
5
(No Transcript)
6

• Software for room, function (brief) and technical
  installation
• dRoFUS.no
• Nosyko.no

7
Survey construction type tables

• Revision of Norwegian standard 3457
• Harmonize different use among different norwegian
  actors Initiative by Standards Norway
• Statsbygg (Public building authority)
• Kartverket (central property register)
• Airport authority
• National housing bank
• Road authorities
• Railroad authorities
• Building codes
• Armed forces

8
Survey construction type tables

• Look into all Norwegian tables
• Norwegian standard NS 3457
• Statsbygg public buildings
• Kartverket (central property register)
• Armed forces
• Building codes
• Costing
• Knowlegde bases (building research institute)

9
Survey construction type tables

• Look into international examples
• SfB, CI-SfB, (NL)
• Uniclass (UK)
• Omniclass (US)
• DBK (DK)
• Byggklassifisering (SF)
• BCA (AUS)
• BKI (DE)
• Eurostat CC (EU)
• Waiting
• Office of Real Property ServiceORPS (Taxation
  NY)
• Neufert
• Wikipedia

10
Survey construction type tables

• Look into international examples
• Institute for Building Operations Research at
  Nürtingen-Geislingen University

11
Survey construction type tables

• Look into international examples
• Institute for Building Operations Research at
  Nürtingen-Geislingen University

12
Survey construction type tables
13
Examples of classifying concepts according to
different classifying principles in an IFD
library way
NS3457 (NO) 7 Health facilities
71 Hospitals 713 Regional
hospitals
CI-SfB (NL) 4 Health, welfare facilities
41 Hospital facilities
411 Teaching hospitals
Concept Example
Uniclass (UK) D4 Medical, health, welfare
facilitie D41 Medical
facilities (hospitals) D412
District general hospitals
SSB Kartverket (NO) 7 Health facilities
71 Hospitals
719 Hospitals
Omniclass (US) 11-13 00 00 Public service
11-13 24 00 Health facilities
11-13 24 11 Hospital
BE PBL (NO) Risk Fire ????
Energy use Hospital
Control class Hospital
Bygg.kl.94 (SF) F Buildings for institutional
care F21 Health care
buildings F211 General
hospital
Forsvarsbygg EBA (NO) 30
Medical services
New Ahus Regional university hospital take up
area 330.000 w/o some specialities
DBK 2006 (DK) N Treatment, care NA Treatment of
illness NC Nursing NAB Treatment building NCE
Bedward
Eurostat CC (EU) 1 Building 12 Non
residential 126 Public entertainment, education,
hospitals 1264 Hospitals, ints. care buildings
BCA (AU) Class 9a A health-care building,
including those parts of the building set aside
as a laboratory.
BKI (DE) 3000 Gebäude des gesundheitswesens 3200
Krankenhäuser, universitätskliniken
14
Examples of classifying concepts according to
different classifying principles in an IFD
library way
NS3457 (NO) 6 Culture and research
65 Sports building 65x
CI-SfB (NL) 5 Recreational facilities
56 Sports facilities 564
Stadia, 564A Athletic
Concept Example
Uniclass (UK) D5 Recreational facilities
D56 Sports facilities
D561 Stadia, Arenas
SSB Kartverket (NO) 6 Culture and re
65 Sports building 654 Tribune
Omniclass (US) 11-15 00 00 Recreational
11-15 11 00 Outdoor 11-15 11 47
Outdoor team sport, 11-15 11 47 14
BE PBL (NO) Risk Fire Tribune gt 150 p
Energy use Sports building
Control class --
Bygg.kl.94 (SF) G Assembly buildings
G35 Sports and phys. exercise
G359 Other
Forsvarsbygg EBA (NO) 740
Sports facilities
Bislet stadium, Oslo 15.000 seats
DBK 2006 (DK) J Culture JB Sports JBB Soccer
stadium
Eurostat (EU) 2 Civil engineering 24 Other civil
engineering 241 Sports and recreation
constructions
BCA (AU) Class 10b a structure being a fence,
mast, antenna, retain-ing or free-standing wall,
swimming pool or the like.
BKI (DE) 5000 sportbauten 5400 sportplatzanlagen(a
ussenanlagen)
15
Examples of classifying concepts according to
different classifying principles in an IFD
library way
NS3457 (NO) 1 Residential 15
Apartment building 15x
CI-SfB (NL) 8 Residential facilities
81 Housing 815 gt 5 stories
816 Flats
Concept Example
Uniclass (UK) D8 Residential
D81 Housing D8111 Flats
(apartments)
SSB Kartverket (NO) 1 Residential
14 Large residential buildings 146
Attached, 5 storeys and more
Omniclass (US) 11-16 00 00 Residences
11-16 21 ?? Multiple family residence
11-16 21 21 Large MFR gt 10 families
BE PBL (NO) Risk Fire Residential
Energy use Apt. building
Control class res. gt2 apt.
Bygg.kl.94 (SF) A Residential
A03 Blocks of flats A039
Other
Forsvarsbygg EBA (NO) 460
Apartment building
Old apartment building, 13 apartments
DBK 2006 (DK) B Residential BA Whole year use BAB
Multi family housing
Eurostat (EU) 1 Building 11 Residential 112 Two
and more dwelling building 1122 Three and more
dwelling buildings
BCA (AU) Class 2 a building containing two or
more sole-occupancy units each being a separate
dwelling
BKI (DE) 6000 wohnbauten u.gemeinschaftsstätten 61
00 wohnhäuser 6120 mehrfamilienhäuser
16
Examples of classifying concepts according to
different classifying principles in an IFD
library way
NS3457 (NO) 1 Residential 16
Holiday home 16x
CI-SfB (NL) ???
Concept Example
Uniclass (UK) ????
SSB Kartverket (NO) 1 Residential
16 Holiday home
161 Leisure time
Omniclass (US) ????
BE PBL (NO) Risk Fire Holiday home
Energy use --
Control class --
Bygg.kl.94 (SF) B Free time res. building
B04 Free time res. building
B041 Free time res. building
Forsvarsbygg EBA (NO) 330
Scattered cabins
Holiday cottage
DBK 2006 (DK) B Residential BB Holiday home BBA
Summer home (Winter)
Eurostat (EU) ?????
BCA (AU) ???
BKI (DE) ???
17
Survey construction type tables

• ISO TC 59/SC 13 hat
• Evaluate and revise ISO 12006-2 ???
• Time for standardizing some tables ???
• Or top level of some tables ???
• Start to cooperate - establish a joint exchange
  of tables
• Use IFD as mapping tool between tables

18
Survey construction type tables

• ISO TC 59/SC 13
• Evaluate and revise ISO 12006-2 ???
• Time for standardizing some tables ???
• Start to cooperate establish a joint exchange of
  tables
• Use IFD as mapping tool between tables

19
Survey construction type tables
20
Survey construction type tables

• Look into international examples
• Institute for Building Operations Research at
  Nürtingen-Geislingen University

21
Survey construction type tables

• buildingSMART International conference Wednesday
  September 17 Stockholm
• Proposal to arrange a workshop for classification
  and IFD in conjunction
• Evaluate ISO 12006-2
• Demo IFD as a mapping/table exchange tool
• Discuss strategies for harmonization
• ????
