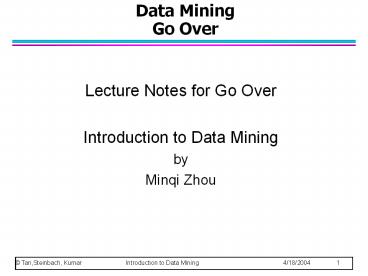

Data Mining Go Over

1
Data Mining Go Over

• Lecture Notes for Go Over
• Introduction to Data Mining
• by
• Minqi Zhou

2
Exam

• Time 6.16, 800-1000
• Room ??? 301

3
Whats Data Mining?

• Many Definitions
• Non-trivial extraction of implicit, previously
  unknown and potentially useful information from
  data
• Exploration analysis, by automatic or
  semi-automatic means, of large quantities of
  data in order to discover meaningful patterns

4
Data Mining Tasks

• Prediction Methods
• Use some variables to predict unknown or future
  values of other variables.
• Description Methods
• Find human-interpretable patterns that describe
  the data.

From Fayyad, et.al. Advances in Knowledge
Discovery and Data Mining, 1996
5
Data Mining Tasks...

• Classification Predictive
• Clustering Descriptive
• Association Rule Discovery Descriptive
• Sequential Pattern Discovery Descriptive
• Regression Predictive
• Deviation Detection Predictive

6
Attribute Values

• Attribute values are numbers or symbols assigned
  to an attribute
• Distinction between attributes and attribute
  values
• Same attribute can be mapped to different
  attribute values
• Example height can be measured in feet or
  meters
• Different attributes can be mapped to the same
  set of values
• Example Attribute values for ID and age are
  integers
• But properties of attribute values can be
  different
• ID has no limit but age has a maximum and minimum
  value

7
Types of Attributes

• There are different types of attributes
• Nominal
• Examples ID numbers, eye color, zip codes
• Ordinal
• Examples rankings (e.g., taste of potato chips
  on a scale from 1-10), grades, height in tall,
  medium, short
• Interval
• Examples calendar dates, temperatures in Celsius
  or Fahrenheit.
• Ratio
• Examples temperature in Kelvin, length, time,
  counts

8
Aggregation

• Combining two or more attributes (or objects)
  into a single attribute (or object)
• Purpose
• Data reduction
• Reduce the number of attributes or objects
• Change of scale
• Cities aggregated into regions, states,
  countries, etc
• More stable data
• Aggregated data tends to have less variability

9
Sampling

• The key principle for effective sampling is the
  following
• using a sample will work almost as well as using
  the entire data sets, if the sample is
  representative
• A sample is representative if it has
  approximately the same property (of interest) as
  the original set of data

10
Dimensionality Reduction

• Purpose
• Avoid curse of dimensionality
• Reduce amount of time and memory required by data
  mining algorithms
• Allow data to be more easily visualized
• May help to eliminate irrelevant features or
  reduce noise
• Techniques
• Principle Component Analysis
• Singular Value Decomposition
• Others supervised and non-linear techniques

11
Similarity and Dissimilarity

• Similarity
• Numerical measure of how alike two data objects
  are.
• Is higher when objects are more alike.
• Often falls in the range 0,1
• Dissimilarity
• Numerical measure of how different are two data
  objects
• Lower when objects are more alike
• Minimum dissimilarity is often 0
• Upper limit varies
• Proximity refers to a similarity or dissimilarity

12
Euclidean Distance

• Euclidean Distance
• Where n is the number of dimensions
  (attributes) and pk and qk are, respectively, the
  kth attributes (components) or data objects p and
  q.
• Standardization is necessary, if scales differ.

13
Minkowski Distance

• Minkowski Distance is a generalization of
  Euclidean Distance
• Where r is a parameter, n is the number of
  dimensions (attributes) and pk and qk are,
  respectively, the kth attributes (components) or
  data objects p and q.

14
Mahalanobis Distance
? is the covariance matrix of the input data X
For red points, the Euclidean distance is 14.7,
Mahalanobis distance is 6.
15
Similarity Between Binary Vectors

• Common situation is that objects, p and q, have
  only binary attributes
• Compute similarities using the following
  quantities
• M01 the number of attributes where p was 0 and
  q was 1
• M10 the number of attributes where p was 1 and
  q was 0
• M00 the number of attributes where p was 0 and
  q was 0
• M11 the number of attributes where p was 1 and
  q was 1
• Simple Matching and Jaccard Coefficients
• SMC number of matches / number of attributes
• (M11 M00) / (M01 M10 M11
  M00)
• J number of 11 matches / number of
  not-both-zero attributes values
• (M11) / (M01 M10 M11)
• Cosine Similarity

16
Techniques Used In Data Exploration

• In EDA, as originally defined by Tukey
• The focus was on visualization
• In our discussion of data exploration, we focus
  on
• Summary statistics
• Frequency frequency, mode, percential
• Location mean, median
• Spread range, variance,
• Visualization
• Histogram
• Box plot
• Scatter plot
• Matrix plot
• Online Analytical Processing (OLAP)

17
data exploration

• Visualization
• Parallel Coordination
• Star plot, chernoff face
• OLAP
• Multi-dimension array
• Data cube
• Slice dice
• Roll-up, drill-down

18
Classification Definition

• Given a collection of records (training set )
• Each record contains a set of attributes, one of
  the attributes is the class.
• Find a model for class attribute as a function
  of the values of other attributes.
• Goal previously unseen records should be
  assigned a class as accurately as possible.
• A test set is used to determine the accuracy of
  the model. Usually, the given data set is divided
  into training and test sets, with training set
  used to build the model and test set used to
  validate it.

19
Another Example of Decision Tree
categorical
categorical
continuous
class
Single, Divorced
MarSt
Married
Refund
NO
No
Yes
TaxInc
lt 80K
gt 80K
YES
NO
There could be more than one tree that fits the
same data!
20
General Structure of Hunts Algorithm

• Let Dt be the set of training records that reach
  a node t
• General Procedure
• If Dt contains records that belong the same class
  yt, then t is a leaf node labeled as yt
• If Dt is an empty set, then t is a leaf node
  labeled by the default class, yd
• If Dt contains records that belong to more than
  one class, use an attribute test to split the
  data into smaller subsets. Recursively apply the
  procedure to each subset.

Dt
?
21
Tree Induction

• Greedy strategy.
• Split the records based on an attribute test that
  optimizes certain criterion.
• Issues
• Determine how to split the records
• How to specify the attribute test condition?
• How to determine the best split?
• Determine when to stop splitting

22
Comparison among Splitting Criteria
For a 2-class problem
23
Practical Issues of Classification

• Underfitting and Overfitting
• Insufficient records, data noise
• Evaluation decision trees
• Re-substitution error, Generalization error
• Pre-pruning, post-pruning
• Missing Values
• In terms of the probability of visible data on
  class
• Costs of Classification

24
Underfitting and Overfitting
Overfitting
Underfitting when model is too simple, both
training and test errors are large
25
Occams Razor

• Given two models of similar generalization
  errors, one should prefer the simpler model over
  the more complex model
• For complex models, there is a greater chance
  that it was fitted accidentally by errors in data
• Therefore, one should include model complexity
  when evaluating a model

26
Model Evaluation

• Metrics for Performance Evaluation
• How to evaluate the performance of a model?
• Accuracy, cost
• Methods for Performance Evaluation
• How to obtain reliable estimates?
• Handout, subsampling, cross validation
• Methods for Model Comparison
• How to compare the relative performance among
  competing models?
• ROC curve

27
Definition Frequent Itemset

• Itemset
• A collection of one or more items
• Example Milk, Bread, Diaper
• k-itemset
• An itemset that contains k items
• Support count (?)
• Frequency of occurrence of an itemset
• E.g. ?(Milk, Bread,Diaper) 2
• Support
• Fraction of transactions that contain an itemset
• E.g. s(Milk, Bread, Diaper) 2/5
• Frequent Itemset
• An itemset whose support is greater than or equal
  to a minsup threshold

28
Mining Association Rules

• Two-step approach
• Frequent Itemset Generation
• Generate all itemsets whose support ? minsup
• Rule Generation
• Generate high confidence rules from each frequent
  itemset, where each rule is a binary partitioning
  of a frequent itemset
• Frequent itemset generation is still
  computationally expensive

29
Reducing Number of Candidates

• Apriori principle
• If an itemset is frequent, then all of its
  subsets must also be frequent
• Apriori principle holds due to the following
  property of the support measure
• Support of an itemset never exceeds the support
  of its subsets
• This is known as the anti-monotone property of
  support

30
Apriori Algorithm

• Frequent itemset generation
• Frequent itemset support computation
• Brute-force
• Hash-tree
• Rule generation
• Rule generated under the same itemset

31
Maximal vs Closed Itemsets
32
FP-growth Algorithm

• Use a compressed representation of the database
  using an FP-tree
• Once an FP-tree has been constructed, it uses a
  recursive divide-and-conquer approach to mine the
  frequent itemsets

33
FP-tree construction
null
After reading TID1
A1
B1
After reading TID2
null
B1
A1
B1
C1
D1
34
FP-Tree Construction
Transaction Database
null
B3
A7
B5
C3
C1
D1
D1
Header table
C3
E1
D1
E1
D1
E1
D1
Pointers are used to assist frequent itemset
generation
35
FP-growth
Conditional Pattern base for D P
(A1,B1,C1), (A1,B1),
(A1,C1), (A1),
(B1,C1) Recursively apply FP-growth on
P Frequent Itemsets found (with sup gt 1) AD,
BD, CD, ACD, BCD
null
A7
B1
B5
C1
C1
D1
D1
C3
D1
D1
D1
36
Rule Generation

• How to efficiently generate rules from frequent
  itemsets?
• In general, confidence does not have an
  anti-monotone property
• c(ABC ?D) can be larger or smaller than c(AB ?D)
• But confidence of rules generated from the same
  itemset has an anti-monotone property
• e.g., L A,B,C,D c(ABC ? D) ? c(AB ? CD)
  ? c(A ? BCD)
• Confidence is anti-monotone w.r.t. number of
  items on the RHS of the rule

37
Types of Clusterings

• A clustering is a set of clusters
• Important distinction between hierarchical and
  partitional sets of clusters
• Partitional Clustering
• A division data objects into non-overlapping
  subsets (clusters) such that each data object is
  in exactly one subset
• Hierarchical clustering
• A set of nested clusters organized as a
  hierarchical tree

38
K-means Clustering

• Partitional clustering approach
• Each cluster is associated with a centroid
  (center point)
• Each point is assigned to the cluster with the
  closest centroid
• Number of clusters, K, must be specified
• The basic algorithm is very simple

39
Evaluating K-means Clusters

• Most common measure is Sum of Squared Error (SSE)
• For each point, the error is the distance to the
  nearest cluster
• To get SSE, we square these errors and sum them.
• x is a data point in cluster Ci and mi is the
  representative point for cluster Ci
• can show that mi corresponds to the center
  (mean) of the cluster
• Given two clusters, we can choose the one with
  the smallest error
• One easy way to reduce SSE is to increase K, the
  number of clusters
• A good clustering with smaller K can have a
  lower SSE than a poor clustering with higher K

40
Hierarchical Clustering

• Two main types of hierarchical clustering
• Agglomerative
• Start with the points as individual clusters
• At each step, merge the closest pair of clusters
  until only one cluster (or k clusters) left
• Divisive
• Start with one, all-inclusive cluster
• At each step, split a cluster until each cluster
  contains a point (or there are k clusters)
• Traditional hierarchical algorithms use a
  similarity or distance matrix
• Merge or split one cluster at a time

41
How to Define Inter-Cluster Similarity
Similarity?

• MIN
• MAX
• Group Average
• Distance Between Centroids
• Other methods driven by an objective function
• Wards Method uses squared error

Proximity Matrix
42
DBSCAN

• DBSCAN is a density-based algorithm.
• Density number of points within a specified
  radius (Eps)
• A point is a core point if it has more than a
  specified number of points (MinPts) within Eps
• These are points that are at the interior of a
  cluster
• A border point has fewer than MinPts within Eps,
  but is in the neighborhood of a core point
• A noise point is any point that is not a core
  point or a border point.

43
Measures of Cluster Validity

• Numerical measures that are applied to judge
  various aspects of cluster validity, are
  classified into the following three types.
• External Index Used to measure the extent to
  which cluster labels match externally supplied
  class labels.
• Entropy
• Internal Index Used to measure the goodness of
  a clustering structure without respect to
  external information.
• Sum of Squared Error (SSE)
• Relative Index Used to compare two different
  clusterings or clusters.
• Often an external or internal index is used for
  this function, e.g., SSE or entropy
• Sometimes these are referred to as criteria
  instead of indices
• However, sometimes criterion is the general
  strategy and index is the numerical measure that
  implements the criterion.

44
Using Similarity Matrix for Cluster Validation

• Order the similarity matrix with respect to
  cluster labels and inspect visually.
