Why Metrics in Software Testing?

1

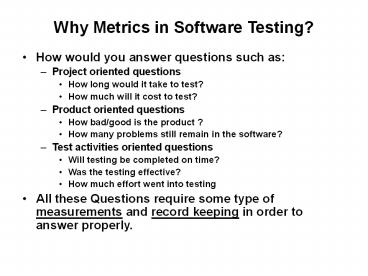

Why Metrics in Software Testing?

• How would you answer questions such as
• Project oriented questions
• How long would it take to test?
• How much will it cost to test?
• Product oriented questions
• How bad/good is the product ?
• How many problems still remain in the software?
• Test activities oriented questions
• Will testing be completed on time?
• Was the testing effective?
• How much effort went into testing
• All these Questions require some type of
  measurements and record keeping in order to
  answer properly.

2
Some Basic Concepts on Measurement

• What do we need before we can measure something?
• Clear understanding and definition of the
  attribute/characteristic that we are trying to
  gauge
• The metric that may be used to gauge that
  attribute
• The methodology for performing the measurement.
  (often forgotten once we get the first two done
  ---- including yours truly.)

3
Clarifying Defining the Attribute to be Measured

• Characterizing the attribute of interest
• Size Attribute
• Physical height is a size sub-attribute of many
  items.
• Height of a building, person, tree - - - not a
  problem
• Height of a ball or ocean ? - - - not
  comfortable? Why?
• Physical weight is a size sub-attribute of many
  items
• What is the size attribute for software? What
  does it address?
• The source statements - - - with screens? with
  db tables?
• The storage space that the object code occupies
  in memory ?
• Quality Attribute
• For a car ? - - - how fast it can accelerate?
  Number of times the car stalled? Number times the
  lights dont work?
• For software? - - - how many times we need to
  re-boot?, how good does the screen look? How
  many times do we need to call help-line? Or ( of
  times not Meeting customer requirements)

4
2. Metric for Gauging the Attribute

• Metric a unit used for describing or for
  measuring an attribute
• Inches is a metric used for measuring the length
  attribute (simple metric)
• Miles per hour is a metric for measuring the
  speed attribute (complex metric requires 2
  metrics)
• Lines of code is a metric for measuring the size
  attribute of software (not a very good one)
• Problems found per thousand lines of source code
  is a metric for defect discovery rate attribute
  of software. (or is this for software quality
  attribute?

5
3. Conducting the Measurement

• Once the attribute is defined and the associated
  metric is defined, the actual methodology to
  determine the extent of an attribute using that
  metric has to be spelled out.
• How do you measure the length of a person using
  inches?
• How do you measure the distance from earth to the
  moon using inches?
• How do you measure the size of the computer
  program using bytes?
• How do you measure the defects in a program using
  problems found during program testing? ( note
  problems found may be counted in many ways - - -
  unique ones, accepted ones, etc.)

6
Some General, Test Measurements

• Time is used to measure the length of period
  expended for testing
• Time to setup and conduct (run) a test or a set
  of tests
• Units of measurement in minutes or hours
• Time to design and document test cases
• Units of measurement in minutes or hours
• Keeping track of time gives us one parameter to
  help us plan for future testing but time must be
  balanced with the size of the test.
• 2 seconds to run a simple query
• 5 seconds to run a complete purchase transaction
  with confirmation
• Size of test is needed to make time of test
  more meaningful or conversely can amount of test
  time be used as a metric for size of test
  attribute?

7
Size of Test

• Test size attribute may use different metrics
• Amount of time to run test (bit convoluted ?)
• Small size less than or equal to 3 seconds
• Medium size between 3 seconds and 1 minute
• Large size 1 minute or above
• Number of lines of statements to document the
  test case
• Small size less than or equal to 3 statements
• Medium size between 4 and 7 statements
• Large size 8 or more statements

Any suggestions - - - - ? Number of test cases?
--- or --- type of test such as unit
test versus integration test ?----
8
Quality of Problems

• The attribute , Quality, is often measured with
  the metric of number of problems found but
  number of problems alone does not tell the whole
  story - - - consider
• Severity of problems
• High
• Medium
• low
• Type of problems
• UI
• Database
• Network outage
• Etc.

9
Quality (cont.)

• Both Severity and Type are important
• of problems found by severity
• of problems found by type
• of problems found when (when during
  development)
• of problems found when (months after release)
• of problems found where (UI,DB, Logic, Network,
  etc.)
• Quality Information is relevant to both
• Software providers
• Customers/users

Why important to users? What would they do with
it?
10
Problem Find Rate
The Weibull probability density curve f(t)
(m/t) (t/2)m e z where z (t/c)m - for m
1, the curve looks as dotted line - for m
2, the curve looks as solid line
and is called Rayleigh
Problem Find Rate
of Problems Found per hour
Time
Day 1
Day 2
Day 3
Day 4
Day 5
Does severity of problem matter here? (it should
, but not considered here)
11
Problem Fix Rate
Problem Fix Rate
Problem Find Rate During Functional Test
of Problems Fixed per hour
Problem Fix Rate During Functional Test
Time
Day 1
Day 2
Day 3
Day 4
Day 5
Would this fix rate present a problem ? Would you
also want to keep a backlog by day ?
12
Problem Density
Density
Note Just the of problems found by area does
not normalize the measurement we need the per
KLOC.
6
5
of problems found per KLOC
4
3
2
1
Area
Module 1
Module 2
Module 3
Module 4
13
Test Coverage Rate

• Not all the planned test cases are actually run.
• of test cases executed / of test cases
  planned
• By functional areas
• By test phases
• of source statements executed / total of
  source statements
• By functional areas
• By modules

14
Test Activity Effectiveness

• Defect discovery and eradication activities occur
  at all phases of development. To see which is
  more effective one may use
• of problems found / total of problems found
• By development phase (req. rev., design rev.,
  func. test, system, etc.)
• of problems found / person-days of effort
• By test activities (e.g. boundary value testing,
  branch testing, d-u testing, etc.)

15
Fix Effectiveness

• Not all problem fixes resolve the problems.
• of fixes that worked / total of fixes
• The first time
• of fixes that required more than 1 fix /
  total number of fixes

16
Fix Cost

• Fix cost is usually measured by amount of effort
  expended.
• of person-hours expended / fix
• By severity
• By areas
• By phase type (including post-release)

If the fix cost for post-release is higher than
that of all of the pre-release phases, then that
will be one reason for test and reviews.
17
Problem Cost Comparison

• Effort expended in discovering a problem and the
  effort expended in fixing that problem is the
  test cost during pre-release.
• Effort expended in fixing a problem and releasing
  it to the customer is the support (problem
  resolution) cost during post-release.
• Compare (effort in people hours)
• effort expended / problem found and fixed
  (pre-release)
• .vs.
• effort expended / problem resolved
  (post-release)

Post-release resolution usually cost more
18
How Big is it (testing w/o fix) ?
How would you answer this?

• Assume --- of test cases planned by size (or
  complexity)
• large 35 test cases
• Medium 200 test cases
• small 40 test cases
• Assume --- average effort required to design and
  test
• large 1 person hour
• Medium 15 person minutes
• small 5 minutes
• Then ---- How Big is Testing? may be answered
• (35X60) (200x15) (40x5) 5,330
  person-minutes or 88.33 person-hours

So, In this case --- how big is testing? - It
is 275 test cases. - It is 88.33 person hours of
effort.
19
How Long Would it take?

• Use the same example of 88.33 person-hours of
  test planning and execution effort.
• You need to make some assumptions
• assume 2 testers of about equal ability
• split the work effort evenly
• 88.33people-hours/2 people 44.17 hours
• further assume that each person works 6 hours a
  day
• 44.17 hours/ 6hours-perday 7.3 days
• So this will take 2 testers working 6 hours a day
  for 7.3 days
