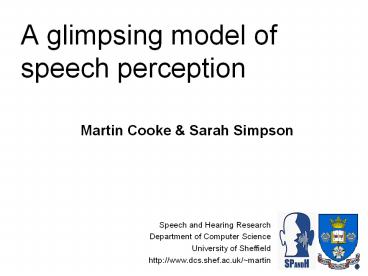

A glimpsing model of speech perception

• Martin Cooke Sarah Simpson

Speech and Hearing Research Department of
Computer Science University of Sheffield http//ww
w.dcs.shef.ac.uk/martin
2
Motivation The nonstationarity paradox

• speech technology performance falls with the
  nonstationarity of the noise background

Simpson Cooke (2003)
3
MotivationThe nonstationarity paradox

• speech technology performance falls with the
  nonstationarity of the noise background

Simpson Cooke (2003)
4
Possible factors

• In a 1-speaker background, listeners can
• employ organisational cues from the
  background source to help segregate foreground
• employ schemas for both foreground and
  background
• benefit from better glimpses of the speech
  target
• but multi-speaker backgrounds have certain
  advantages
• less chance of informational masking
• easier enhancement algorithm

5
Glimpsing opportunities
Spectro-temporal glimpse densities

of time-frequency regions with a
locally-positive SNR
6
Glimpsing
Informal definition a glimpse is some
time-frequency region which contains a reasonably
undistorted view of local signal properties

• Precursors
• Term used by Miller Licklider (1950) to explain
  intelligibility of interrupted speech
• Related to multiple looks model of Viemeister
  Wakefield (1991) which demonstrated intelligent
  temporal integration of tone bursts
• Assmann Summerfield (in press) suggest
  glimpsing tracking as way of understanding
  how listeners cope with adverse conditions
• Culling Darwin (1994) developed a glimpsing
  model to explain double vowel identification for
  small ?F0s
• de Cheveigné Kawahara (1999) can be considered
  a glimpsing model of vowel identification
• Close relation to missing data processing (Cooke
  et al, 1994)

7
Types of glimpses
Comodulated Eg Miller Licklider (1950)
Spectral Eg Warren et al (1995)
General uncomodulated Eg Howard-Jones Rosen
(1993), Buss et al (2003)
8
Evidence from distorted speech
e.g. Drullman (1995) filtered noisy speech into
24 ¼-octave bands, extracted the temporal
envelope in each band, and replaced those parts
of the envelope below a target level with a
constant value. Found intelligibility of 60 when
98 of signal was missing
9
Glimpsing in natural conditions the dominance
effect

• Although audio signals add additively, the
  occlusion metaphor is more appropriate due to
  loglike compression in the auditory system

Consequently, most regions in a mixture are
dominated by one or other source, leaving very
few ambiguous regions, even for a pair of speech
signals mixed at 0 dB.
10
Issues for a glimpsing model

• What constitutes a useful glimpse?
• Is sufficient information contained in glimpses?
• How do listeners detect glimpses?
• How can they be integrated?

Glimpse detection
Glimpse integration
11
Glimpsing study

• Aims
• Determine if glimpses contain sufficient
  information
• Explore definition of useful glimpse
• Comparison between listeners and model using
  natural VCV stimuli
• Subset of Shannon et al (1999) corpus
• V /a/
• C b, d, g, p, t, k, m, n, l, r, f, v, s, z,
  sh, ch
• Background source
• reversed multispeaker babbler for N1, 8
• Allows variation in glimpsing opportunities
• 3 SNRs (TMRs) 0, -6 and -12 dB
• 12 listeners heard 160 tokens in each condition
• 2 repeats X 16 VCVs X 5 male speakers

12
Identification results
1-speaker
8-speaker
13
Glimpsing model

• CDHMM employing missing data techniques
• 16 whole-word HMMs
• 8 states
• 4 component Gaussian mixture per state
• Input representation
• 10 ms frames of modelled auditory excitation
  pattern (40 gammatone filters, Hilbert envelope,
  8 ms smoothing)
• NB only simultaneous masking is modelled
• Training
• 8 repetitions of each VCV by 5 male speakers per
  model
• Testing
• As for listeners viz. 2 repetitions of each VCV
  by 5 male speakers
• Performance in clean gt 99

14
Model performance I ideal glimpses

• Ideal glimpses
• All time-frequency regions whose local SNR
  exceeds a threshold
• Optimum threshold 0 dB
• For this task, there is more than sufficient
  information in the glimpsed regions
• Listeners perform suboptimally with respect to
  this glimpse definition

1
8
15
Model performancevariation in detection
threshold

• Q Can varying the local SNR threshold for glimpse
  detection prodce a better match?
• No choice of local SNR threshold provides good
  fit to listeners
• Closest fit shown (-6 dB)

1
8
16
Analysis

• Unreasonable to expect listeners to detect
  individual glimpses in a sea of noise unless
  glimpse region is large enough

17
Analysis

• Unreasonable to expect listeners to detect
  individual glimpses in a sea of noise unless
  glimpse region is large enough

18
Model performance useable glimpses

• Definition glimpsed region must occupy at least
  N ERBs and T ms
• Search over 1-15 ERBs, 10-100 ms, at various
  detection thresholds
• Best match at
• 6.3 ERBs (9 channels)
• 40 ms
• 0 dB local SNR threshold

1
8

• Howard-Jones Rosen (1993) suggested 2-4 bands
  limit for uncomodulated glimpsing
• Buss et al (2003) found evidence for
  uncomodulated glimpsing in up to 9 bands

19
Consonant identification

• Reasonable matches overall apart from b, s z
• However, little token-by-token agreement between
  common listener errors and model errors.
• Why?

20
Factors
Confusability
Audibility of target
Informational masking
Energetic masking
Existence of schemas for target
Successful identification
Organisational cues in target
Existence of schemas for background
Organisational cues in background
21
Measuring energetic masking

• Approach resynthesise glimpses alone
• Filter, time-reverse, refilter to remove phase
  distortion
• Select regions based on local SNR mask
• Results
• Little difference for 1-speaker background,
  suggesting relatively low contribution of info
  masking in this case (due to reversed masker?)
• Larger difference for 8-speaker case possibly due
  to unrealistic glimpses

1
8
glimpses alone
speechnoise
22
Comparison with ideal model

• Results
• Ideal model performs well in excess of listeners
  when supplied with precisely the same information
• Possible reasons
• Distortions
• Glimpses do not occur in isolation possibility
  that a noise background will help
• Lack of nonsimultaneous masking model will
  inflate model performance

Ideal (model)
Ideal? (listeners)
23
The glimpse decoder

• Attempt at a unifying statistical theory for
  primitive and model-driven processes in CASA
• Basic idea decoder not only determines the most
  likely speech hypothesis but also decides which
  glimpses to use
• Key advantage no longer need to rely on clean
  acoustics!
• Can interpret (some) informational masking
  effects as the incorrect assignment of glimpses
  during signal interpretation
• Barker, J, Cooke, M.P. Ellis, D.P.W. Decoding
  speech in the presence of other sources,
  accepted for Speech Communication

24
Summary outlook

• Proposed a glimpsing model of speech
  identification in noise
• Demonstrated sufficiency of information in target
  glimpses, at least for VCV task
• Preliminary definition of useful glimpse gives
  good overall model-listener match
• Introduced 2 procedures for measuring the amount
  of energetic masking (i) via ASR (ii) via glimpse
  resynthesis
• Need nonsimultaneous masking model
• Need to isolate affects due to schemas
• Repeat using non-reversed speech to introduce
  more informational masking
• Need to quantify affect of distortion in glimpse
  resynthesis

25
Masking noise can be beneficial
Warren et al (1995) demonstrated spectral
induction effect with 2 narrow bands of speech
with intervening noise
fullband
Cooke Cunningham (in prep) Spectral induction
with single speech-bands.
26
Speech modulated noise

• Speech modulated noise
• As in Brungart (2001)
• Model results and glimpse distributions indicate
  increase in energetic masking for this type of
  masker

Natural speech
natural, 1 spkr
natural, 8 spkr
SMN, 1 spkr
SMN, 8 spkr
Speech modulated noise
27
Speech modulated noise

• Listeners perform better with SMN than predicted
  on the basis of reduced glimpses (cf SMN model),
  but not quite as well as they do with natural
  speech masker
• Suggests energetic masking is not the whole story
  (cf Brungart, 2001), but further work needed to
  quantify relative contribution of
• Release from IM
• Absence of background models/cues
