Prezentace aplikace PowerPoint

1

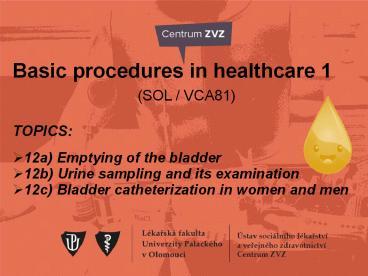

• Basic procedures in healthcare 1
  (SOL / VCA81)
• TOPICS
• 12a) Emptying of the bladder
• 12b) Urine sampling and its examination
• 12c) Bladder catheterization in women and men

2
12a) Emptying of the bladder

• urination
• factors affecting micturition
• diuresis
• fluid balance
• monitoring of urine (quantity, colour, odour )
• urinary voiding disorders

3
12a) Emptying of the bladder

• Urination (micturition)
• The excretion of urine by the urinary system
  kidneys, ureters, urinary bladder and urethra.

4
12a) Emptying of the bladder

• Factors affecting the micturition
• growth and development,
• psychosocial factors,
• food and fluid intake,
• drugs,
• muscle tone,
• pathologies (hypertrophy of the prostate, kidney
  ),
• surgery (e. g. cystoscopy ).

5
12a) Emptying of the bladder

• Diuresis
• the definitive amount of urine produced by the
  kidneys per unit time (usually one day), an
  average of 1,5 liters per day,
• ? when the lack of fluids and renal impairment
  (compare to anuria, oliguria),
• ? e. g. at increased fluid intake, diuretic and
  when DM (compare to polyuria),
• the dieresis monitoring is important in many
  diseases and acute conditions (shock, heart and
  renal failure with swelling and others).

6
12a) Emptying of the bladder

• Fluid balance
• - measuring and recording fluid intake and output
  over 24 hours,
• use urine bottles, bedpans,sampling containers
  for urinein case there is not introducedperipher
  al urinary catheter,
• remember to write infusion,sauces, compotes,
  vomit,waste drain, diarrhoea,excessive sweating
  etc..

7
12a) Emptying of the bladder

• Monitoring of urine quantity
• physiological quantity 1000 2000ml / 24hrs
• Disorders of urine
• polyuria ? urine,
• gt than 3 000ml / 24 hrs
• oliguria ? urine,
• 100 - 500ml / 24 hrs
• anuria urine
• lt than 100ml / 24 hrs

8
12a) Emptying of the bladder

• Monitoring of urine colour
• physiological straw yellow,
• dark yellow, reddish increased concentration of
  bile pigments,
• blood in the urine haematuria,
• opacity proteins, mucus, pus.

9
12a) Emptying of the bladder

• Monitoring of urine - odour
• fresh urine - an aromatic odour
• older urine - sharp pungent odour
• acetone - metabolic acidosis

indication urine papers
10
12a) Emptying of the bladder

• Urinary voiding disorders
• retention urinary retention without the ability
  to emptying, the arrest of
  urination
• pollakiuria frequent urge to urinate,
  accompanied by a small amount of
  urine (frequent symptom of the urinary tract
  inflammation)
• nocturia - increased frequency of urination at
  night
• dysuria pain during urination
• stranguria cutting, burning during urination
• urgent urination a strong sense of urgency with
  little urine
• enuresis nocturna bedwetting in older children
• incontinence spontaneous loss of urine

11
12b) Urine sampling and its examination

• general principles of urine sampling
• physical examination of urine
• specific weight of urine
• biochemical urinalysis

12
12b) Urine sampling and its examination

• General principles of urine sampling
• usually morning urine is sampled,
• genital organs hygiene before sampling washing
  the urethral orifice with water,
• sampling into pre-labeled containers, clean, dry,
  sterile (should consider the possibility of
  staining with the container during sampling),
• properly completed requisition.
• Specifics of sterile urine sampling
• midstream of urine it means first wash the
  genital by water, then urinein a toilet part of
  the urine, catch the midstream into the sterile
  containerand the rest of urine pee in the
  toilet,
• urine obtained during catheterization.

13
12b) Urine sampling and its examination

• Physical examination of urine
• the colour, turbidity, foam, odour, pH, specific
  weight is evaluated,
• physiological pH of urine normal 5,0 - 7,0,
• aciduria lower than 5,0,
• alkaluria higher than 6,5 - 7,0.
• Specific weight of urine - value 1,010 -
  1,025g/cm3
• dependent on the amount of dissolved solids
  (especially chlorides, urea)and the amount of
  discharged fluid,
• measurement in the morning with calibrated
  hydrometer (urometer),
• 100 ml urine in graduated cylinder.

14
12b) Urine sampling and its examination
hydrometer in graduated cylinder
hydrometer
15
12b) Urine sampling and its examination

• Biochemical urinalysis
• determination of values protein, glucose, ketone
  bodies, bile pigments, haemoglobin, amino acids,
  amylase, creatinine, inorganic compounds,
  nitrogen balance, osmolality, hormone levels,
  medications

16
12b) Urine sampling and its examination

• Biochemical urinalysis
• pyuria - pus in the urine,
• proteinuria - protein in the urine,
• glycosuria - carbohydrates in the urine,
• acetonurie - ketone bodies in the urine.

17
12b) Urine sampling and its examination

• Individual biochemical examination methods
• urinary sediment (urine sediment),
• urinary sediment according to Hamburger,
• balance sampling for the waste ions, urea, uric
  acid, protein, creatinine, glycosuria,
• Bence-Jones protein,
• creatinine clearance,
• oestriols,
• vanillylmandelic acid (VMA),
• toxicology urine examination.

18
12c) Bladder catheterization

• definition
• indication
• types of catheterization
• types of urinary catheters
• tools
• preparation of a patient
• single catheterization procedure of woman with
  simultaneous sampling of urine for examination
• single catheterization procedure of man with
  simultaneous sampling of urine for examination
• indications for the introducing of a permanent
  urinary catheter (PUC)
• tools
• procedure in introducing of PUC
• complication while introducing PUC

19
12c) Bladder catheterization

• Catheterization - introducing a sterile catheter
  (catheter) through the urethra into the bladder.
• Indication
• emptying the bladder when retention,
• emptying the bladder before the examination,
  surgery, parturition etc.,
• taking the sterile urine sample to test for
  cultivation and sensitivity,
• introducing of a permanent urinary catheter
  (PUC),
• detection of residual urine,
• bladder instillation (irrigation).

20
12c) Bladder catheterization

• Types of catheterization
• Disposable - in order to release disposable
  bladder content(the introduction of a catheter,
  drain urine, removal of catheter, finish the
  procedure).
• Permanent in order toensuring intermittentand
  permanent urinarydiversion. Functionalcharacter
  of catheterscorresponds with this purpose.

urinary catheters
21
12c) Bladder catheterization

• Types of urethral catheters
• a) Nelaton catheter - straight used in children
  and women, rarely
  in men,
• b) Tiemann catheter - straight with curved
  conical beak used
  in men,
• c) Foley catheter permanent urinary catheter,
  most commonly used for chronic urine drainage
  into a collection bag plasticor silicone it
  includes balloon to fix urinary catheter, the
  balloon is filled with saline.
• The catheter must be sterile and not damaged.
  Catheters are aseptically stored in a sealed
  plastic bag.
• PUC marking - indicate the numbers expressing the
  girth and average.

22
12c) Bladder catheterization
disposable catheter
23
12c) Bladder catheterization
disposable catheter
Tiemann catheter
Nelaton catheter
24
12c) Bladder catheterization
Permanent catheters
Foley catheters
25
12c) Bladder catheterization

• Tools
• permanent Foley catheter,
• saline 1/1,
• syringe according to the size of the balloon 5 -
  20 ml,
• urine sampling bag, a sterile tube,
• sterile swabs, sterile tweezers,
• disinfectant solution for periurethral
  disinfection (Octenisept),
• lubricant and aesthetic, e. g. Mesocain gel,
  Instillagel,
• vomit bowls,
• disposable sterile gloves.
• The possibility of using other tools according to
  the standardsand practices of staff.

26
12c) Bladder catheterization

• Preparation of the patient
• familiarization with procedure,
• ensure privacy,
• appropriate position on the back in a slightly
  raised position, man's lower limbs lying in bed,
  womans lower limb are bent at knees slightly
  apart from each other,
• genital hygiene.

27
12c) Bladder catheterization

• The procedure for a single catheterization of
  women with simultaneous sampling urine tests
• tools preparation,
• hygienic hand disinfection,
• the patient is lying on your back with bent lower
  limbs,
• inserting vomit bowls next to the legs of the
  patient,
• use of sterile gloves (or 1 glove on nondominant
  hand if we use sterile tweezers to the genital
  disinfection),
• draping the genitals,
• disinfection of the urethral meatus,
• antiseptic swab hold in sterile tweezers and use
  it only once,
•

28
12c) Bladder catheterization

• open female labia with forefinger and thumb of
  one hand,
• with the second hand, in whichwe hold sterile
  tweezerswith sterile swabsand disinfectant,we
  gradually disinfectthe orifice of urethraand
  its surroundings(3 swans right, lestside and
  centre),
• we disinfect alwaysin one direction fromthe
  top down (ventrodorsal) and we never go back!

disinfect the orifice of urethra
29
12c) Bladder catheterization

• we put used swabs into the vomit bowls,
• we remove the catheter from the prepared package,

• we use to removal either a sterile tweezers or
  the second nurse helps us or we have everything
  prepared on the sterile surface,
• we apply Instillagel (Mezocain gel) on the tip of
  the catheter,
• we gently introduce the catheter into the
  bladder,
• we are introducing, until the urine starts
  leaking into vomit bowls from the other end of
  the catheter,
• we let the first stream to drop into the vomit
  bowl, and then we let the next one (midstream)
  flow into a sterile test tube,
• we let the rest of the urine to flow into the
  vomit bowls or bedpans.

30
12c) Bladder catheterization

• after bladder emptying, we gently pull the
  catheter from the urethra,
• we dry the genital using swabs,
• we adjust the patients position and bed,
• we arrange cleaningthe tools,
• we send a urinesample to the laboratory,
• we record it inthe documentation.

bladder catheterization on a model
31
12c) Bladder catheterization

• The procedure for a single catheterization of men
  with simultaneous sampling urine tests
• a physician puts on sterile gloves,
• we prepare a tube for sampling urine, sterile
  tampon in a disinfectant solution and sterile
  disposable catheter,
• we place vomit bowls in a bed of the patient,
• the physician pulls the foreskin and he
  disinfects opening of the urethra using 3 swabs -
  a circular motion from the orifice of the urethra
  below,
• we prepare Instillagel or Mesocain gel,
• we give aseptically sterile urinary catheter to
  the physician,
• the physician pulls the curved end of the
  catheter in sterile swab with prepared Mesocain
  (the physician applies Instillagel directly into
  the orifice of the urethra),

32
Instillagel - gel in a sterile syringe with local
anestheticand disinfectant antibacterial effect
(for introducing of PUC)
33
12c) Bladder catheterization

• the physician slowly introduces a catheter into
  the urethra, the leaking urine is caught in vomit
  bowls and bedpans,
• midstream urine is caught in a test tube,
• the rest of the urine is let to flow into the
  vomit bowls and bedpans,
• after emptying of the bladder, the physician
  gently pulls the catheter from the urethra,
• we clean the urethral meatus from excess of
  lubricant,
• we adjust the position of a patient and the bed,
• we arrange cleaning the tools,
• we send a urine sample to the laboratory,
• we record it in the documentation.

34
bladder catheterization on a model
35
12c) Bladder catheterization

• Indications of introduction of permanent
  catheter
• urine retention,
• macro-haematuria (bleeding when bladder tumours,
  prostatic adenoma, carcinoma),
• after cystoscopy,
• postoperative catheter introduction (prostate,
  bladder, urethra surgery),
• measurement of diuresis (postoperative renal
  insufficiency, cardiac decompensation).

36
12c) Bladder catheterization

• Tools
• the same as in single catheterization,
• plus- syringe,- saline,- collecting bag,-
  hinge on the bed.

urine collection bagwith plastic hinge
37
12c) Bladder catheterization

• Procedure for permanent catheterization
• the same as when single catheterization,
• nurse assists to the doctor in the introduction
  of permanent catheterin a male, another nurse
  assistance is possible when introducingof
  permanent catheter in a female,
• it is appropriate to connect the catheter with
  collecting bag,before the introduction of
  urinary catheter,
• after the introduction of urinary catheter, we
  drop all the urine and we introduce the catheter
  by about 2,5 - 5 cm away from the place where
  urine begins flow so we can fill the balloon with
  saline,
• we apply the saline with syringe (the amount of
  the catheter indications) into the other catheter
  entrance which leads to the intravesicalend of
  the catheter,
• we perform a leak test by pulling urinary
  catheter GENTLY!

38
12c) Bladder catheterization

• we communicate with the patient during a
  performance,
• dry genitals,
• adjust the bedafter the procedure,
• we arrange cleaningthe tools,
• we record it inthe documentation.

introduced catheter in men
39
12c) Bladder catheterization

• Videos
• Single catheterization with the collection of
  urine tests
• - https//www.youtube.com/watch?vvtZL2t7SP0w
•
• Women catheterization with permanent urinary
  catheter
• - https//www.youtube.com/watch?vR1gaOOJ5XgI
•
• Removing the permanent urethral catheter
• - https//www.youtube.com/watch?vvuH1fygkYsc

40
12c) Bladder catheterization

• Complications of catheterization
• infection when violation of the principles of
  antisepsis,
• traumatic damage to the urethra during rough
  introduction,
• inability to introduce the catheter due to
  urethral anomalies.
• !!! IT IS NECESSARY TO FOLLOW THE PRINCIPLESOF
  ANTISEPSIS DURING THE INTRODUCTION !!!

41
Revision

• Name the defects of urine creation.
• How do we monitor the fluid balance?
• What are the guidelines we follow for the urine
  sampling?
• Name the type of bladder catheterization.
• What kinds of catheters do you know?
• List the tools to catheterization.
• List at least 3 indications for PUC introduction.
• Describe the single catheterization procedure of
  women.
• What complications can occur during
  catheterization?
• About what will you educate mobile patient with
  PUC?

42
Reference

• MIKŠOVÁ, Zdenka, Marie FRONKOVÁ, Renáta HERNOVÁ a
  Marie ZAJÍCKOVÁ, kapitoly z ošetrovatelské péce
  1. Aktualiz. a dopl. vyd. Praha Grada, 2006,
  90s. ISBN 80-247-1442-6
• VELKÝ LÉKARSKÝ SLOVNÍK online. 2015 cit.
  2015-03-27. Dostupné z www.lekarske.slovniky.cz
• VOŠ ZDRAVOTNICKÁ A STREDNÍ ZDRAVOTNICKÁ ŠKOLA
  HRADEC KRÁLOVÉ. Ošetrovatelské postupy zavedení
  permanentního katetru online.2015
  cit.2015-04-08. Dostupné z http//ose.zshk.cz/v
  yuka/osetrovatelske-postupy.aspx?id15
• PICTURES (if it is not stated differently)
  google.com (key words tubes,urine for
  testing, catheters )
