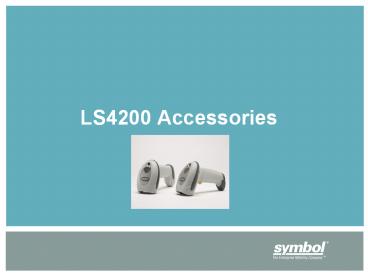

LS4200 Accessories

1
LS4200 Accessories
2
Intellistands

• Part Numbers
• 20-70774-01 White
• 20-70774-02 Twilight Black
• These stand works on both the corded LS4208
  Cordless LS4278

LS4208 - Corded
LS4278 - Cordless
3
Wall Mount Bracket

• Part Number
• 11-66553-06 Only color available (Dark Gray)

4
Cordless Cradle Mounting Bracket

• Part Number
• 12-69020-01 LS4278 / STB 4278 Cradle Mount
  Bracket
• This may be used to mount the cradle to the
  counter or wall

• Basics on how to use this bracket?
• Refer to QRG for STB4278 for more details
• You will need qty 6, 8 Pan head screws, approx
  5/8" in length for spots A B.
• Screws in A spots will be slightly raised off
  of the sheet metal. These screws will allow the
  cradle to slide onto the bracket. Similar to
  phone mounting.
• The cradles rubber feet press against the metal
  for a secure fit.
• Screws in B spots either hold the bracket onto
  a wall or desktop.

A
B
A
5
Desktop Holder

• Part Number
• 20-70777-01 - Only color available (Dark Gray)
