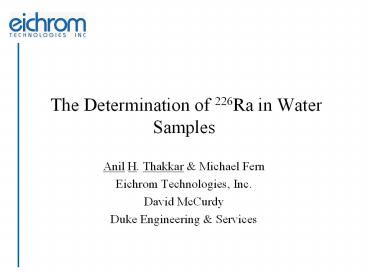

The Determination of 226Ra in Water Samples

1
The Determination of 226Ra in Water Samples

• Anil H. Thakkar Michael Fern
• Eichrom Technologies, Inc.
• David McCurdy
• Duke Engineering Services

2
Objectives

• To design a procedure for radium in water which
  would
• be a simple, short and quick procedure
• allow to measure Ra-226 and Ra-224 via alpha
  spectroscopy and Ra-228 via Ac-228 measurements
• eliminate the tedious steps of precipitation and
  metathesis

3
Current Procedure Used

• Barium sulfate precipitation
• Conversion to BaCO3- tedious and time consuming

4
Current Procedure Used
Sample Ba carrier Ba-133 Conc.H2SO4_ Heat
BaSO4 Precipitate allowed to
settle for several hours or overnight Precipitate
collected and converted to BaCO3
5
New Approach
6
Preparation of Water Samples

• 0.5 L / 1.0 L water samples
• Acidified to pH 2
• Add 133Ba as a tracer

7
Eichrom Cation Exchange Column

• Load solution 0.5 L/ 1.0 L of sample
• Rinse with 50 mL of 0.1M HNO3
• Strip Ra and Ba with 50 mL of 8M HNO3

8
Preparation of Load Solution for Ln Resin Column

• Evaporate eluent from cation exchange column to
  dryness
• Dissolve residue in 10 ml of 0.095M HNO3 acid
• Load on Eichrom Ln Resin column

9
Ln Resin Column Separation
10
226Ra Via Alpha Spectrometry

• Evaporate 226Ra/133Ba fraction to 10 mL volume
• Add 0.1 ml of 0.75 mg/ml barium carrier
• Add 3 mL of 40 sodium sulfate, 4 drops of 11
  acetic acid. Swirl
• Add 0.2 mL of seeding suspension. Mix
• Place tubes in cold water bath for 30 minutes
• Filter on 0.1 micron filters, count via alpha
  spectrometry

11
133Ba Via Gamma Counter
eichrom

• Count 133Ba tracer yield via gamma spectrometry

12
228Ac Via Gas-Flow Proportional Counter

• Add 50 micrograms of cerium carrier
• Add 1.0 mL of HF
• Filter on 0.1 micron filters
• Measure for beta radiation

13
226Ra Recoveries-0.5L DI Water
14
226Ra Alpha Spectrum
15
133Ba Gamma Spectrum
16
226Ra, 224Ra, and Daughters
224Ra
226 Ra
220Rn
218Po
222Rn
17
226Ra Recoveries in Tap water
18
226Ra in EPA SampleSept.18, 1998

19
226Ra in NJ Sample

20
226Ra in Georgia Inst. Of Tech. Sample S8933

21
226Ra in Georgia Inst. Of Tech. Sample WS
14776

22
Ca and Mg Interference

• 50, 100, 200, 400 and 500 ppm of Ca and Mg
  solutions were tested
• 500 mL and 100 mL volumes tested

23
Ca and Mg Interference in 500 mL Samples
24
Ca Interference in 100 mL of Sample
25
Detection Limits
26
Summary

• lt1.0 pCi/L detection limits achievable
• A good replacement for BaSO4 precipitation
• Eliminates inconsistent metathesis steps
• Reduces usage of chemicals/reagents
• Provides consistency and saves time
• High amounts of Ca and Mg interferences handled
  well with 100 mL samples
• Acceptable 226Ra recoveries

27
Acknowledgements
Special thanks to Dr. B. Parsa, New Jersey
department of health, NJ Dr. B. Kahn, Georgia
Institute of Technology, GA
