A Discussion on Assemblers

1

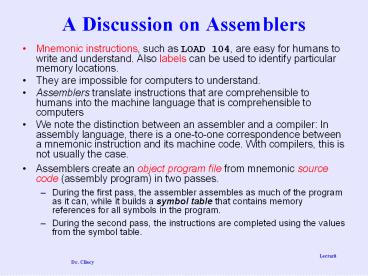

A Discussion on Assemblers

• Mnemonic instructions, such as LOAD 104, are easy
  for humans to write and understand. Also labels
  can be used to identify particular memory
  locations.
• They are impossible for computers to understand.
• Assemblers translate instructions that are
  comprehensible to humans into the machine
  language that is comprehensible to computers
• We note the distinction between an assembler and
  a compiler In assembly language, there is a
  one-to-one correspondence between a mnemonic
  instruction and its machine code. With compilers,
  this is not usually the case.
• Assemblers create an object program file from
  mnemonic source code (assembly program) in two
  passes.
• During the first pass, the assembler assembles as
  much of the program as it can, while it builds a
  symbol table that contains memory references for
  all symbols in the program.
• During the second pass, the instructions are
  completed using the values from the symbol table.

2
A Discussion on Assemblers
Mnemonic instructions or alphanumeric name Label
or Memory location name

• Consider our example program at the right.
• Note that we have included two directives HEX and
  DEC that specify the radix of the constants.
• The first pass, creates a symbol table and the
  partially-assembled instructions as shown (ie.
  doesnt know X is located at address 104).
• Also after the first pass, the translated
  instructions are incomplete

3
A Discussion on Assemblers

• After the second pass, the assembler uses the
  symbol table to fill in the addresses and create
  the corresponding machine language instructions
• After the second pass, it knows X is located at
  address 104 and that is totally translated to
  machine code

4
Extending Our Instruction Set

• So far, all of the MARIE instructions that we
  have discussed use a direct addressing mode.
• This means that the address of the operand is
  explicitly stated in the instruction.
• It is often useful to employ a indirect
  addressing, where the address of the address of
  the operand is given in the instruction
• If you have ever used pointers in a program, you
  are already familiar with indirect addressing.

5
Extending Our Instruction Set

• We have included three indirect addressing mode
  instructions in the MARIE instruction set.
• The first two are LOADI X and STOREI X, where X
  specifies the address of the operand to be loaded
  or stored.
• In RTL
• It would be the same conceptually for AddI, SubI,
  JumpI and JnS

MAR ? X MBR ? MMAR MAR ? MBR MBR ? MMAR AC ?
MBR
MAR ? X MBR ? MMAR MAR ? MBR MBR ? AC MMAR ?
MBR
STOREI X
LOADI X
6
Extending Our Instruction Set

• Our first new instruction is the CLEAR
  instruction.
• All it does is set the contents of the
  accumulator to all zeroes.
• This is the RTL for CLEAR

AC ? 0
7
A Discussion on Decoding

• As mentioned earlier, the control unit causes the
  CPU to execute a sequence of steps correctly
• There are control signals asserted on various
  components in making the components active
• A computers control unit keeps things
  synchronized, making sure that bits flow to the
  correct components as the components are needed.
• There are two general ways in which a control
  unit can be implemented hardwired control and
  microprogrammed control.
• With microprogrammed control, a small program is
  placed into read-only memory in the
  microcontroller.
• Hardwired controllers implement this program
  using digital logic components. There is a direct
  connection between the control lines and the
  machine instructions.

8
A Discussion on Decoding

• Your text provides a complete list of the
  register transfer language (or RTN) for each of
  MARIEs instructions.
• The RTL or RTN actually defines the
  microoperations of the control unit.
• Each microoperation consists of a distinctive
  signal pattern that is interpreted by the control
  unit and results in the execution of an
  instruction.
• The signals are fed to combinational circuits
  within the control unit that carry out the
  logical operations for the instruction
• Recall, the RTL for the Add instruction is

MAR ? X MBR ? MMAR AC ? AC MBR
9
A Discussion on Decoding

• Each of MARIEs registers and main memory have a
  unique address along the datapath (0 through 7).
• The addresses take the form of signals issued by
  the control unit.
• Let us define two sets of three signals.
• One set, P2, P1, P0, controls reading from memory
  or a register,
• and the other set consisting of P5, P4, P3,
  controls writing to memory or a register.
• Lets examine MARIEs MBR (with address 3)
• Keep in mind from Ch 2 how registers are
  configure using flip-flops

10
A Discussion on Decoding - MBR
The MBR register is enabled for reading when P0
and P1 are high
The MBR register is enabled for writing when P3
and P4 are high
11

A Discussion on Decoding

• We note that the signal pattern just described is
  the same whether our machine used hardwired or
  microprogrammed control.
• In hardwired control, the bit pattern of machine
  instruction in the IR is decoded by combinational
  logic.
• The decoder output works with the control signals
  of the current system state to produce a new set
  of control signals.

Unique output signal corresponding to the opcode
in the IR
Produce the series of signals that result in the
execution of the microoperations
Produces the timing signal for each tick of the
clock (sequential logic used here because the
series of timing signals is repeated) for tick,
a different group of logic can be activated
12
A Discussion on Decoding - ADD
Timing signal added with instruction bits produce
required behavior

• Bit pattern for the Add 0011 instruction in the
  IR.

Result Here
Control lines and bits controlling the register
functions and the ALU
13
A Discussion on Decoding

• The hardwired approach is FAST, however, the
  control logic are tied together via circuits and
  complex to modify
• In microprogrammed control, the control can be
  easier modified
• In microprogrammed control, instruction microcode
  produces control signal changes.
• Machine instructions are the input for a
  microprogram that converts the 1s and 0s of an
  instruction into control signals.
• The microprogram is stored in firmware, which is
  also called the control store.
• A microcode instruction is retrieved during each
  clock cycle.

14
A Discussion on Decoding

• All machine instructions are input into the
  microprogram. The microprograms job is to
  convert the machine instructions into control
  signals.
• The hardwired approach, timing signals from the
  clock are ANDed using combinational logic
  circuits to invoke signals
• In the microprogram approach, the instruction
  microcode produces changes in the data-path
  signals

15
A Closer Look at Instruction Set
ArchitecturesChapter 5
15
16
Introduction

• In Ch 4, we learned that machine instructions
  consist of opcodes and operands. Opcodes specify
  the operations to be executed operands specify
  register or memory locations of data.
• Sections 5.1 and 5.2 builds upon the ideas in
  Chapter 4 and looks more closer at Instruction
  Set Architecture (ISA) specifically, the
  instruction format
• We will look at different instruction formats
• We will see the interrelation between machine
  organization and instruction formats.
• By understanding a high-level languages
  low-level instruction set architecture and
  format, this leads to a deeper understanding of
  the computers architecture in general.
• As a computer scientist, in understanding the
  computers architecture in more detail, you can
  build more efficient and reliable programsm
• When a computer architecture is in the design
  phase, the instruction set format must be
  determined first it must match the architecture
  and last for years

17
Instruction Formats

• Instruction sets are differentiated by the
  following
• Number of bits per instruction (16, 32, 64).
• How the data is stored (Stack-based or
  register-based).
• Number of explicit operands per instruction
  (0,1,2 or 3).
• Operand location (instructions can be classified
  as register-to-register, register-to-memory or
  memory-to-memory).
• Types of operations (or instructions) and which
  instructions can access memory or not.
• Type and size of operands (operands can be
  addresses, numbers or characters).

18
Instruction Formats

• As mentioned earlier, when a computer
  architecture is in the design phase, the
  instruction set format must be determined first
  it must match the architecture and last for
  years.
• Instruction set architectures are measured
  several factors
• the amount of space a program requires.
• Instruction complexity (ie. decoding required).
• Instruction length (in bits).
• total number of instructions in the instruction
  set.

19
Instruction Formats

• Issues to consider when designing an instruction
  set
• Instruction length.
• Whether short, long, or variable.
• Short uses less space but is limited
• Fixed size is easier to decode but wastes space
• Memory organization.
• Whether byte- or word addressable.
• If memory has words and not byte-addressable, it
  could be difficult to access a single character
  (4 bits)
• Number of operands.
• How should operands be stored in the CPU
• Number of addressable registers.
• How many registers ?
• How should the registers be organized ?
• Addressing modes.
• Choose any or all direct, indirect or indexed.
  For example, MARIE used the direct and indirect
  addressing modes
• Given a byte-addressable machine, should the
  least significant byte be stored at the highest
  or lowest byte address ? Little Endian Vs Big
  Endian debate)

20
Instruction Formats

• The term Endian refers to a computers Byte
  order, or the way the computer stores the bytes
• If we have a two-byte integer, the integer may be
  stored so that the least significant byte is
  followed by the most significant byte or vice
  versa.
• In Little endian machines, the least significant
  byte is followed by the most significant byte.
  (ie MSB-LSB) (most PCs, Intel)
• Big endian machines store the most significant
  byte first (at the lower address). (ie. LSB-MSB)
  (most UNIX machines, Computer networks, Motorola)

• As an example, suppose we have the hexadecimal
  number 12345678.
• The big endian and small endian arrangements of
  the bytes are shown below.

21
Instruction Formats

• Big endian
• Is more natural.
• The sign of the number can be determined by
  looking at the byte at address offset 0.
• Strings and integers are stored in the same
  order.
• Doesnt allow values on non-word boundaries (ie
  odd-numbered byte addresses). (ie. if a word is 2
  bytes, must start on 0, 2, 4, 6, 8, etc)
• Conversion from a 16-bit integer address to a
  32-bit integer address requires arithmetic.
• Little endian
• Makes it easier to place values on non-word
  boundaries (ie odd-numbered byte addresses).
• Conversion from a 16-bit integer address to a
  32-bit integer address does not require any
  arithmetic.

22
Instruction Formats

• Once the designer decides on how the bytes should
  be ordered in memory,
• the next consideration for the architecture
  design is how the CPU will store data.
• We have three choices
• 1. A stack architecture
• 2. An accumulator architecture
• 3. A general purpose register architecture.
• In choosing one over the other, the tradeoffs are
  simplicity (and cost) of hardware design with
  execution speed and ease of use.

23
Instruction Formats

• In a stack architecture, instructions and
  operands are implicitly taken from the stack.
• A stack cannot be accessed randomly.
• In an accumulator architecture, one operand of a
  binary operation is implicitly in the
  accumulator.
• One operand is in memory, creating lots of bus
  traffic.
• In a general purpose register (GPR) architecture,
  registers can be used instead of memory.
• Faster than accumulator architecture.
• Efficient implementation for compilers.
• Results in longer instructions.

24
Instruction Formats

• Most systems today are GPR systems.
• There are three types
• Memory-memory where two or three operands may be
  in memory.
• Register-memory where at least one operand must
  be in a register.
• Load-store where no operands may be in memory.
• The number of operands and the number of
  available registers has a direct affect on
  instruction length.

25
Instruction Formats

• Machine instructions that have no operands must
  use a stack (last in, first out (LIFO))
• Stack architectures make use of push and pop
  instructions.
• Push X places the data in memory location X onto
  the stack
• Pop X removes the top element in the stack and
  stores it at location X.
• Stack architectures require us to think about
  arithmetic expressions a little differently.
• We are accustomed to writing expressions using
  infix notation, such as Z X Y.
• Stack arithmetic requires that we use postfix
  notation Z XY.
• This is also called reverse Polish notation,
  (somewhat) in honor of its Polish inventor, Jan
  Lukasiewicz (1878 - 1956).
• places the operator after the operands

26
Instruction Formats

• Example 1 Adding use a stack
• CPU adds the top two elements of the stack,
  popping them both
• And then push the sum onto the top of the stack
• Example 2 Subtracting use a stack
• The top stack element is subtracted from the
  next-to-the top element, both are popped
• And the result is pushed onto the top of the stack

27
Instruction Formats

• The principal advantage of postfix notation is
  that parentheses are not used.
• The infix expression 3 4 is the postfix
  equivalent of 3 4
• For example, the infix expression,
• Z (X ? Y) (W ? U),
• becomes
• Z X Y ? W U ?
• in postfix notation.

28
Instruction Formats

• Example Convert the infix expression (23) - 6/3
  to postfix

The division operator takes next precedence we
replace 6/3 with 6 3 /.
2 3 - 6 3/
The quotient 6/3 is subtracted from the sum of 2
3, so we move the - operator to the end.
2 3 6 3/ -
29
Instruction Formats

• We have seen how instruction length is affected
  by the number of operands supported by the ISA.
• In any instruction set, not all instructions
  require the same number of operands.
• Operations that require no operands, such as
  HALT, necessarily waste some space when
  fixed-length instructions are used.
• One way to recover some of this space is to use
  expanding opcodes.

30
Instruction Formats

• A system has 16 registers and 4K of memory.
• We need 4 bits to access one of the registers. We
  also need 12 bits for a memory address.
• If the system is to have 16-bit instructions, we
  have two choices for our instructions

31
Instruction Formats

• If we allow the length of the opcode to vary, we
  could create a very rich instruction set

Is there something missing from this instruction
set?
32
Instruction Formats

• Example Given 8-bit instructions, is it possible
  to allow the following to be encoded?
• 3 instructions with two 3-bit operands.
• 2 instructions with one 4-bit operand.
• 4 instructions with one 3-bit operand.

33
Instruction Formats
